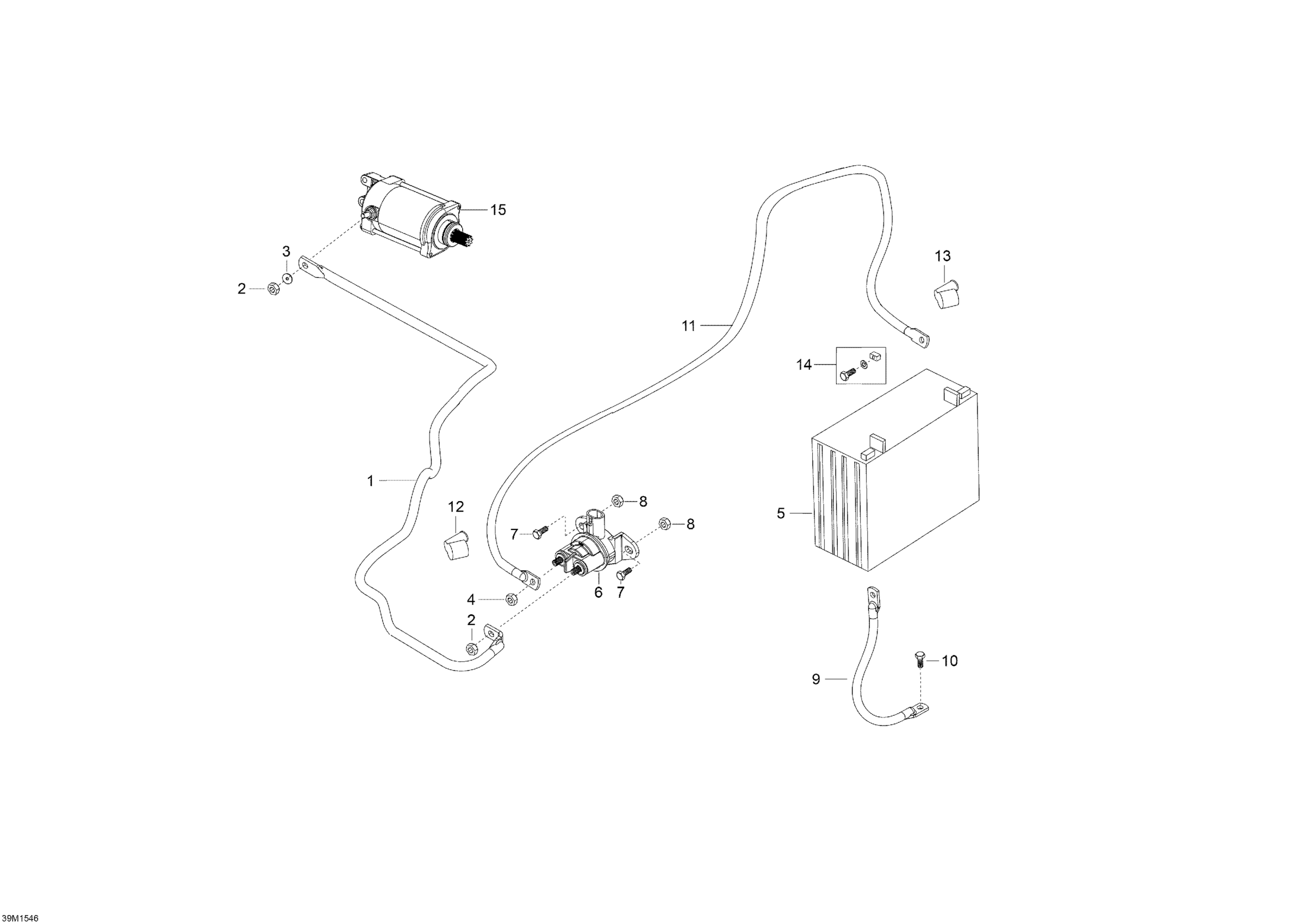

Ski-Doo Skandic WT 550, 2015 Battery And Starter _39M1546 Diagram

#

Description

Price

1

Battery Wire

515177605

Unavailable

2

Elastic Stop Nut M6

232561434

$1.78

3

Flat Washer 6 mm

234061410

$1.19

4

Elastic Stop Nut M6

232561434

$1.78

5

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

6

Starter Relay

278003012

$40.27

7

Hex. Flange Screw M6 X 16

207661644

$0.70

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

9

Ground Wire

515176780

Unavailable

10

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

11

Battery Cable

515176967

Unavailable

12

Protector Cap

710000495

$9.84

13

Protector Cap

710000495

$9.84

14

Battery Bolt Kit

250000282

$3.39

15

Starter

515178473

$319.49
