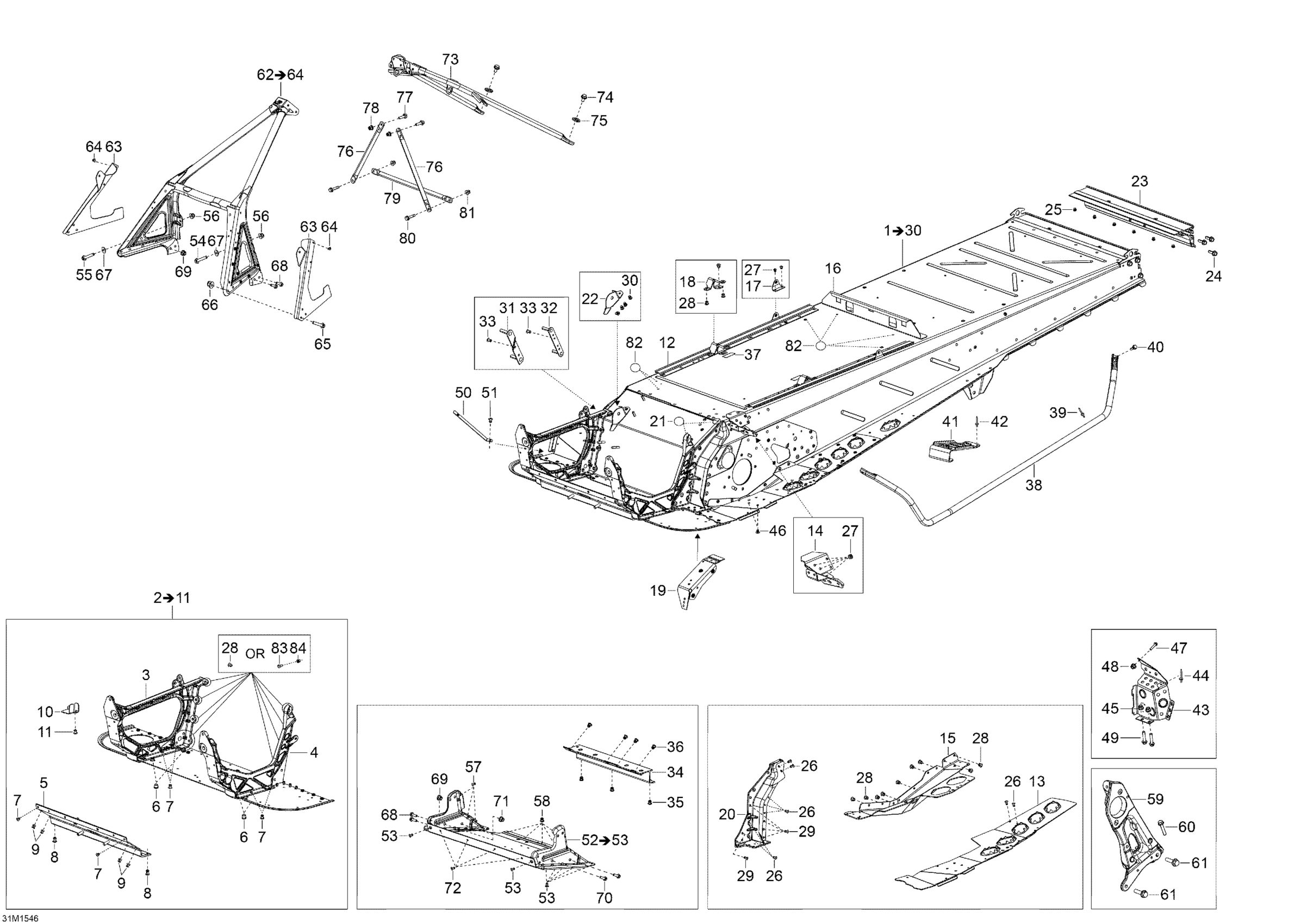

Ski-Doo Skandic WT 550, 2015 Frame _31M1546 Diagram

#

Description
Price

1

FRAME - Call your local BRP dealership | Includes 1 To 30

518328206

Unavailable

2

MODULE E - Call your local BRP dealership | Includes 2 To 11

518328189

Unavailable

3

RH Member

518326795

$284.99

4

LH Member

518325558

$249.99

5

Front Member | Includes 10as to 10at

518325818

$58.99

6

Clinch Nut Hexsert M8

605636002

$7.51

7

Avex Rivet

390909100

$0.30

8

Hemlock Rivet 6.5 mm

293150120

$7.41

9

Hemlock Rivet, 6.5 mm

293150119

$4.29

10

Muffler Support

518328433

$18.49

11

Rivet Hucklok

293150163

$2.99

12

Fastening rail

518326107

$18.49

13

FOOTREST LH - Call your local BRP dealership

518326895

Unavailable

13

FOOTREST RH - Call your local BRP dealership

518326896

Unavailable

14

Fastening Bracket

605355235

$56.99

15

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

$78.99

17

Seat Box Bracket

518327457

$31.99

18

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

18

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

19

Clinch Nut plate

518326430

$44.49

20

LH Frame Corner

518325524

$56.99

20

RH Frame Corner

518328024

$52.99

21

Adhesive Patch

518325560

$4.69

22

RH Support

518326520

$15.49

23

Rear Profile

518328748

$234.99

24

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

25

Hemlock Rivet, 6.4 mm

293150174

$7.86

26

Avex Rivet

390909100

$0.30

27

Avex Rivet

390909200

$0.30

28

Hemlock Rivet, 6.5 mm

293150119

$4.29

29

Rivet

293150183

$2.11

30

Hemlock Rivet, 6.5 mm

293150096

$3.27

31

Gearbox Front Plate

518326123

$17.49

32

Gearbox Rear Plate

518326124

$17.99

33

Pop Rivet 3/16"

390402200

$0.35

34

Engine Support

518326719

$43.49

35

Rivet Hucklok

293150163

$2.99

36

Avex Rivet

390909200

$0.30

37

RUBBER COVER - Call your local BRP dealership

518326357

Unavailable

38

LH Footboard Support Tube

518326963

$139.99

38

RH Footboard Support Tube

518326964

$139.99

39

Avex Rivet

390909100

$0.30

40

Hex. Flange Screw M6 x 20

207662056

$1.01

41

Footrest

520000492

$19.99

42

Avex Rivet

390909100

$0.30

43

TOE HOOK LH - Call your local BRP dealership

518326671

Unavailable

43

TOE HOOK RH - Call your local BRP dealership

518326672

Unavailable

44

Avex Rivet

390909200

$0.30

45

Clinch Nut M6 Hexsert

605636003

$4.23

46

Black, Dart

414644300

$0.98

47

Hex. Flange Screw M6 x 20

207662056

$1.01

48

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

49

Torx Screw M6 X 16

250000223

$2.11

50

Spring Bracket

514054846

$4.69

51

Avex Rivet

390909200

$0.30

52

S Module | Includes 300 to 300a

518326213

$839.99

53

Avex Rivet

390909200

$0.30

54

Hex. Flange Screw M6 X 25

207662544

$0.64

55

Hex. Flange Screw M6 X 25

207662544

$0.64

56

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

57

Avex Rivet

390909100

$0.30

58

Avex Rivet

390909200

$0.30

59

Pulley Support

518328434

$144.99

60

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

61

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$4.44

62

Front Member Ass'y | Includes 700 to 700d

518327004

$539.99

63

LH Bumper Fastener

502007077

$54.99

63

RH Bumper Fastener

502007078

$54.99

64

Avex Rivet

390909200

$0.30

65

Hex. Flange Screw M6 X 20

207662044

$2.00

66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

67

Flat Washer

224061201

$1.37

68

Hex. Flange Screw M6 X 20

207662044

$2.00

69

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

70

Hex. Flange Screw M6 X 20

207662044

$2.00

71

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

72

Avex Rivet

390909200

$0.30

73

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

$199.99

74

Hex. Flange Screw M6 x 20

207662056

$1.01

75

Not Available As Spare Part - Friction Washer

Unavailable

76

Upper Lateral Column Support

518325114

$22.49

77

Hex. Flange Screw M6 x 20

207662056

$1.01

78

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

79

Center Column Support

518325115

$22.49

80

Hex. Flange Screw M6 X 25

207662556

$4.44

81

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

82

Adhesive Patch

518325560

$4.69

83

Hex. Flange Screw M6 X 20

207662044

$2.00

84

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
