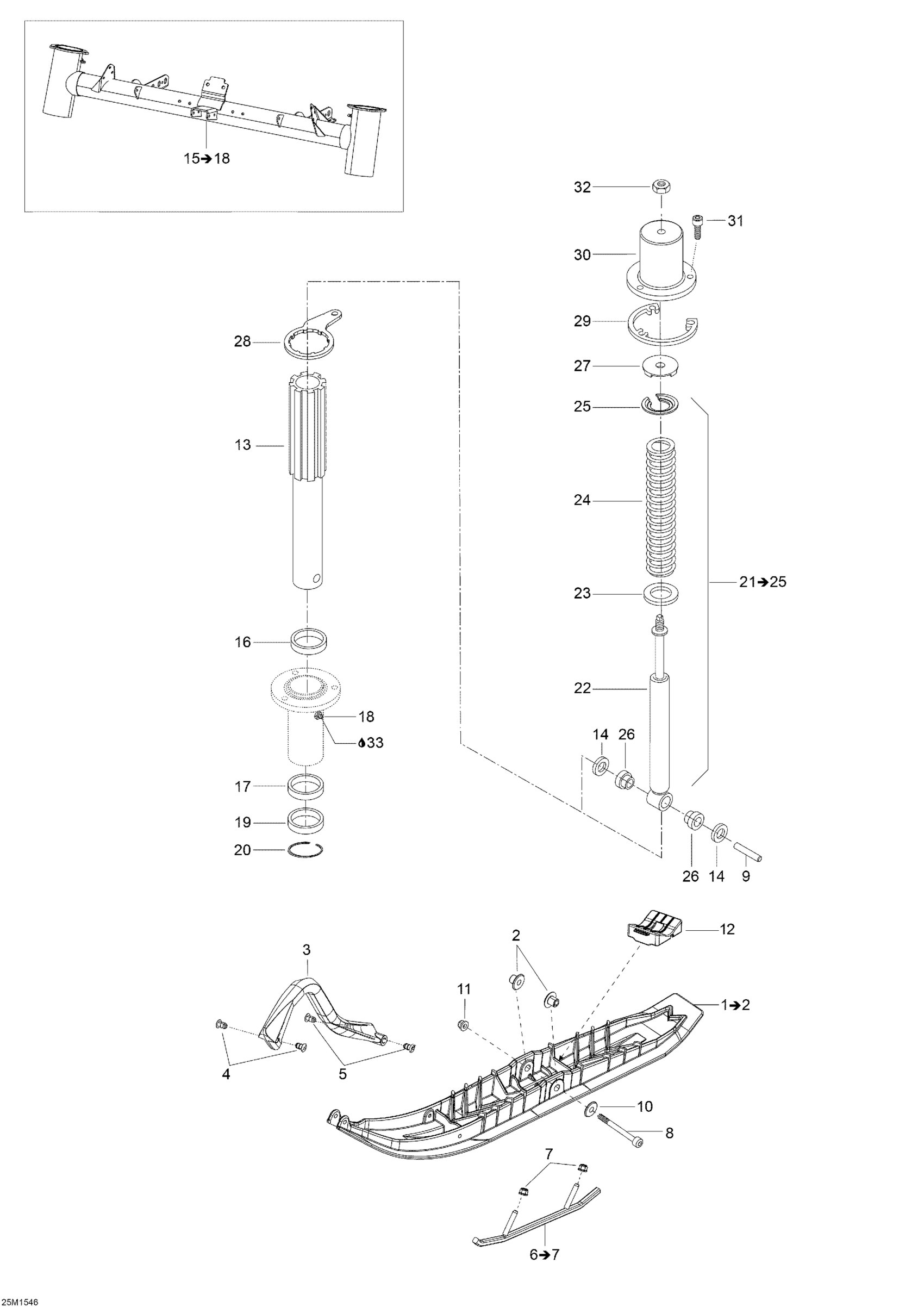

Ski-Doo Skandic WT 550, 2015 Front Suspension _25M1546 Diagram

#

Description
Price

1

Black, Ski

505073227

$175.35

2

Ski Bushing

505071781

$15.35

3

Black, Handle

505072976

$35.35

4

Retainer 17mm long

505071812

$4.43

5

Retainer 23mm Long

505072133

$5.03

6

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$129.97

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

9

Ski Axle

505073209

$12.69

10

Washer

732900049

$0.57

11

Hex. Flange Elastic Nut M10

233201414

$1.26

12

Ski Stopper

505072594

$17.66

13

Ski Leg

505073200

Unavailable

14

Spacer

505072579

$7.58

15

Module Ass'y | Includes 400 to 400d

505073967

$499.20

16

Upper Cushion

414803100

$8.42

17

Lower Cushion

414803200

$11.71

18

Grease Fitting

408200700

$2.80

19

Seal Oil

505072696

$46.12

20

Circlip

505072698

$12.89

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Shock

505073046

$157.66

23

Washer

505072578

$12.55

24

Black, Spring

505072557

$66.89

25

Spring Stopper

505072619

$10.23

26

Cushion

572034500

$9.98

27

Rubber Bumber

605354835

$13.95

28

Steering Arm

505073823

$92.28

29

Spacer

505073983

$24.58

30

Suspension Cover LH

505072874

$129.20

30

Suspension Cover RH

505072875

$129.20

31

Socket Head Screw M8 X 20

205082044

$1.09

32

Hex. Flange Elastic Nut M10

233201414

$1.26

33

Not Available As Spare Part - Friction Washer

Unavailable
