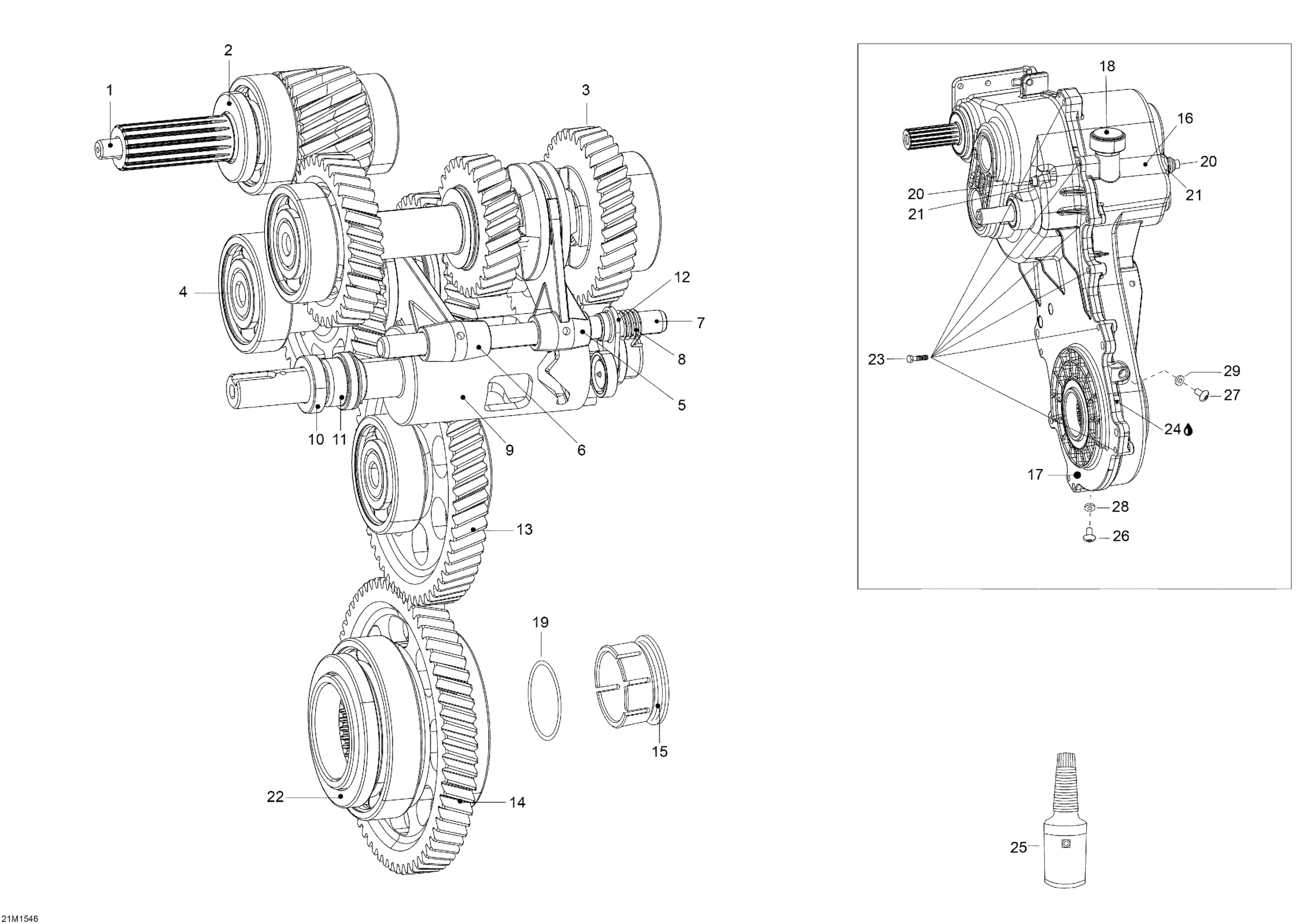

Ski-Doo Skandic WT 550, 2015 05- Transmission _21M1546 Diagram

#

Description
Price

-

Transmission Ass'y (Slow Ratio) | Gear Box 2.30

619230077

$2.00

1

Counter Shaft Ass'y | Gear Box 2.30

619230044

$614.49

2

Oil seal

619230010

$18.49

3

Main Shaft Ass'y | Gear Box 2.30

619230054

$582.49

4

Reverse Shaft Ass'y (Fast Ratio) | Gear Box 1.98

619230071

$603.99

5

Fork, Forwards

619230055

$149.99

6

Fork, reverse

619230015

$209.99

7

Shaft

619230016

$30.49

8

Spring

619230017

$16.99

9

Shifting Drum

619230056

$209.99

10

Oil seal This part replaces 619230052.

619230019

$20.49

11

Bushing

619230020

$11.54

12

Locking lever

619230021

$56.99

13

Middle gear

619230022

$239.99

14

Lower gear

619230023

$439.99

15

Magnetic Cap

504152821

Unavailable

16

Gearbox Cover Rh This part replaces 504153194.

504153477

$369.99

17

Inside Cover

504153243

Unavailable

18

Oil Plug

619230027

$41.49

19

O-Ring

619230028

$4.44

20

Screw

619230029

$5.40

21

Washer

619230030

$8.04

22

Oil seal

619230031

$20.49

23

SCREW M6 X 20 - Call your local BRP dealership

619230033

Unavailable

24

Sealing Compound Loctite 5366 310Ml

420297907

$54.99

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Allen Screw M8 x 10

619230037

$6.03

27

Allen Screw M10 x 16

619230038

$4.02

28

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

29

Seal Ring

619230047

$4.02
