Description

Price

1

Oil Tank

519000341

$244.99

2

Level Sensor

515176978

$56.99

3

Cap

519000273

$28.99

4

Oetiker Gear Clamp

293650043

$3.39

5

Cap

519000216

$7.29

6

Hex. Flange Screw M6 X 20, Scotch Grip

250000331

$2.11

7

Flat Washer

224061201

$1.37

8

Bracket

519000179

$10.49

9

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

10

Oil Filter

519000242

$13.77

11

Spring Clamp

414415200

$0.88

12

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

13

Spring

519000196

$9.69

14

Tubing 10 MM 1000MM Long

219704407

$2.79

15

Spring Clamp

414420700

$0.72

16

Crimp Clamp

293650099

$4.29

17

Tie-Rap 180 mm

414115200

$0.11

18

WARNING DECAL - Call your local BRP dealership

516006904

Unavailable

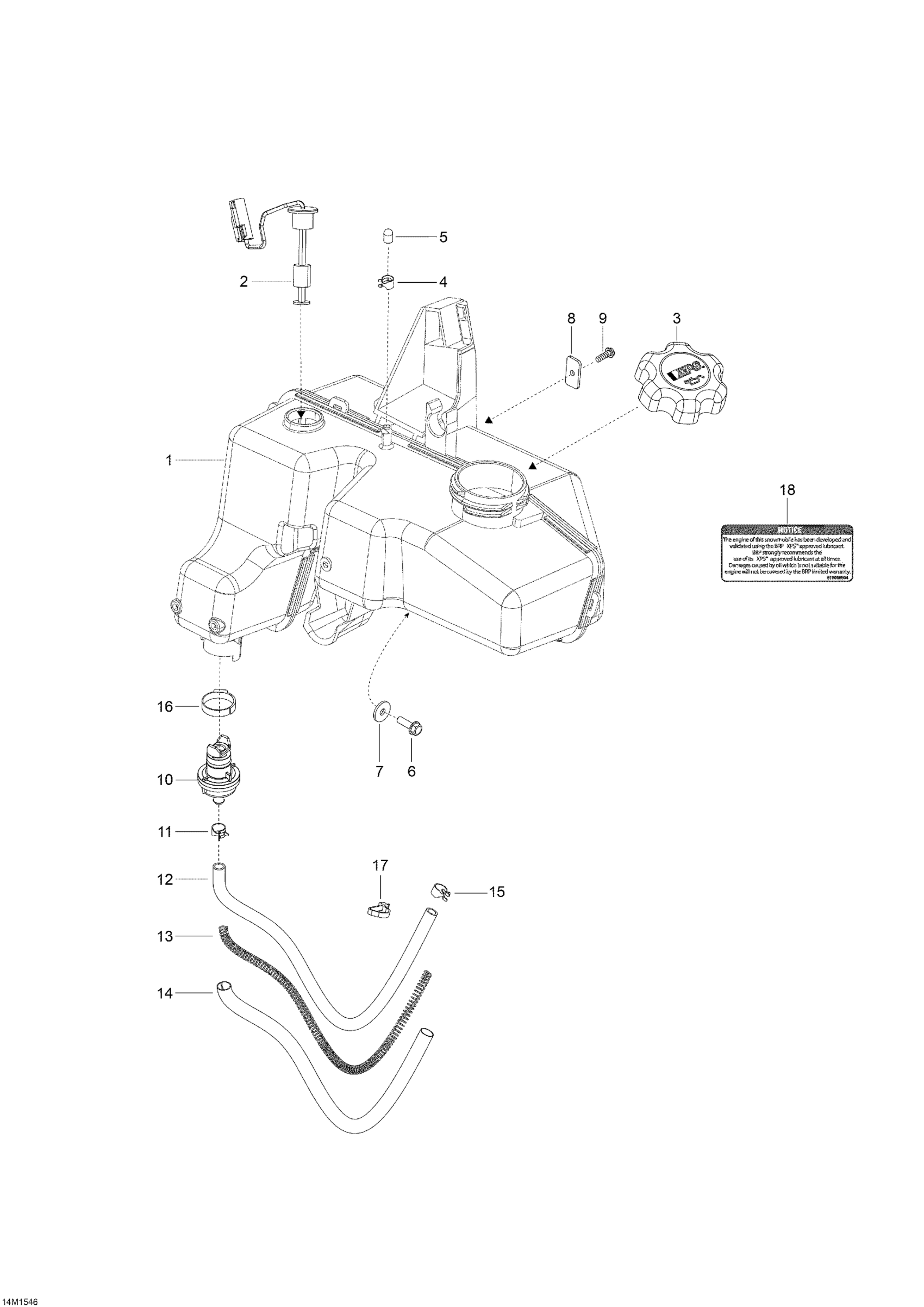

Ski-Doo Skandic WT 550, 2015 02- Oil System _14M1546 Diagram

Oil Tank

Level Sensor

Cap

Oetiker Gear Clamp

Cap

Hex. Flange Screw M6 X 20, Scotch Grip

Flat Washer

Bracket

Hex. Flange Screw K50 X 2.24 X 16

Oil Filter

Spring Clamp

Polyurethane Hose, 8 Mm 3000Mm Long

Spring

Tubing 10 MM 1000MM Long

Spring Clamp

Crimp Clamp

Tie-Rap 180 mm

WARNING DECAL - Call your local BRP dealership
