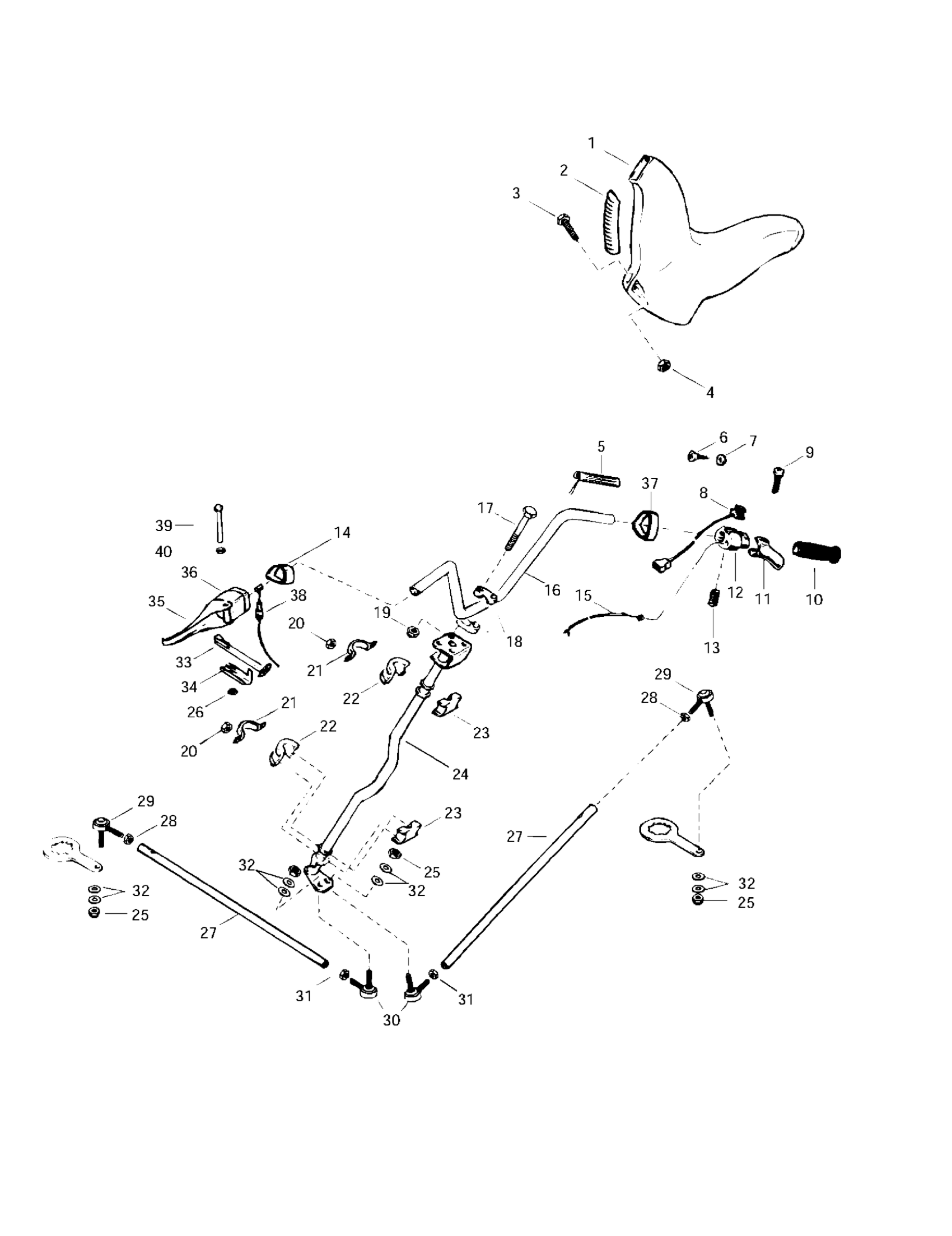

Ski-Doo Skandic Wide Track, 1997 07- Steering System Diagram

#

Description
Price

1

Steering Padding

572023800

Unavailable

2

Key Way

572023900

Unavailable

3

Phillips Screw M5 X 20

208652044

$1.47

4

Hex. Flange Elastic Nut M5

233251414

$1.04

5

Heather Assy - Call your local BRP dealership This part replaces M544345.

544345

Unavailable

6

Screw

414473200

Unavailable

7

Washer | Skandic 600.

M20026

Unavailable

8

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

9

Lever Pin

414438700

$11.64

10

Grip | WAKE This part replaces M5340464.

506152483

$12.17

11

Heat Throttle Handle

M549142

Unavailable

12

Throttle Housing

512060603

$12.49

13

Socket Set Screw M8 X 10

414440800

$4.12

14

BRAKE COVER - Call your local BRP dealership

572073800

Unavailable

15

Cable Accelerat*Throttle Cable | Skandic Super Wide Track. This part replaces M528766.

512060861

$105.99

16

BAR-HANDLE - Call your local BRP dealership

M529751

Unavailable

17

Socket Head Screw M8 X 45

M40286

Unavailable

18

Support Guidon *Support-Steer.

M548448

Unavailable

19

Hex. Elastic Stop Nut M8

232581414

$0.56

20

Hex. Elastic Stop Nut M8

232581414

$0.56

21

Retainer Support

517126200

Unavailable

22

BUSHING - Call your local BRP dealership

572064500

Unavailable

23

Bushing

572064400

Unavailable

24

Main Tube

M539809

Unavailable

25

Elastic Flange Nut M10

232501416

$1.48

26

Push Nut

389804300

$0.53

27

Tie Rod | Skandic Super Wide Track.

M549752

Unavailable

28

RH NUT - Call your local BRP dealership

M33019

Unavailable

29

RH BALL JOINT - Call your local BRP dealership

506151492

$38.99

30

LH JOINT BALL - Call your local BRP dealership

506151845

$38.99

31

LH NUT - Call your local BRP dealership

M33017

Unavailable

32

Lock Washer D10

20068

$2.00

33

Brake Lever

572025200

Unavailable

34

Spring

517229300

Unavailable

35

BRAKE HANDLE - Call your local BRP dealership

572025700

Unavailable

36

Brake Housing

M24034

Unavailable

37

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

38

Brake Cable

M535657

Unavailable

39

PIN - Call your local BRP dealership

517229400

Unavailable

40

WAVE SPRING WASHER METALCRAFT - Call your local BRP dealership

414729400

Unavailable
