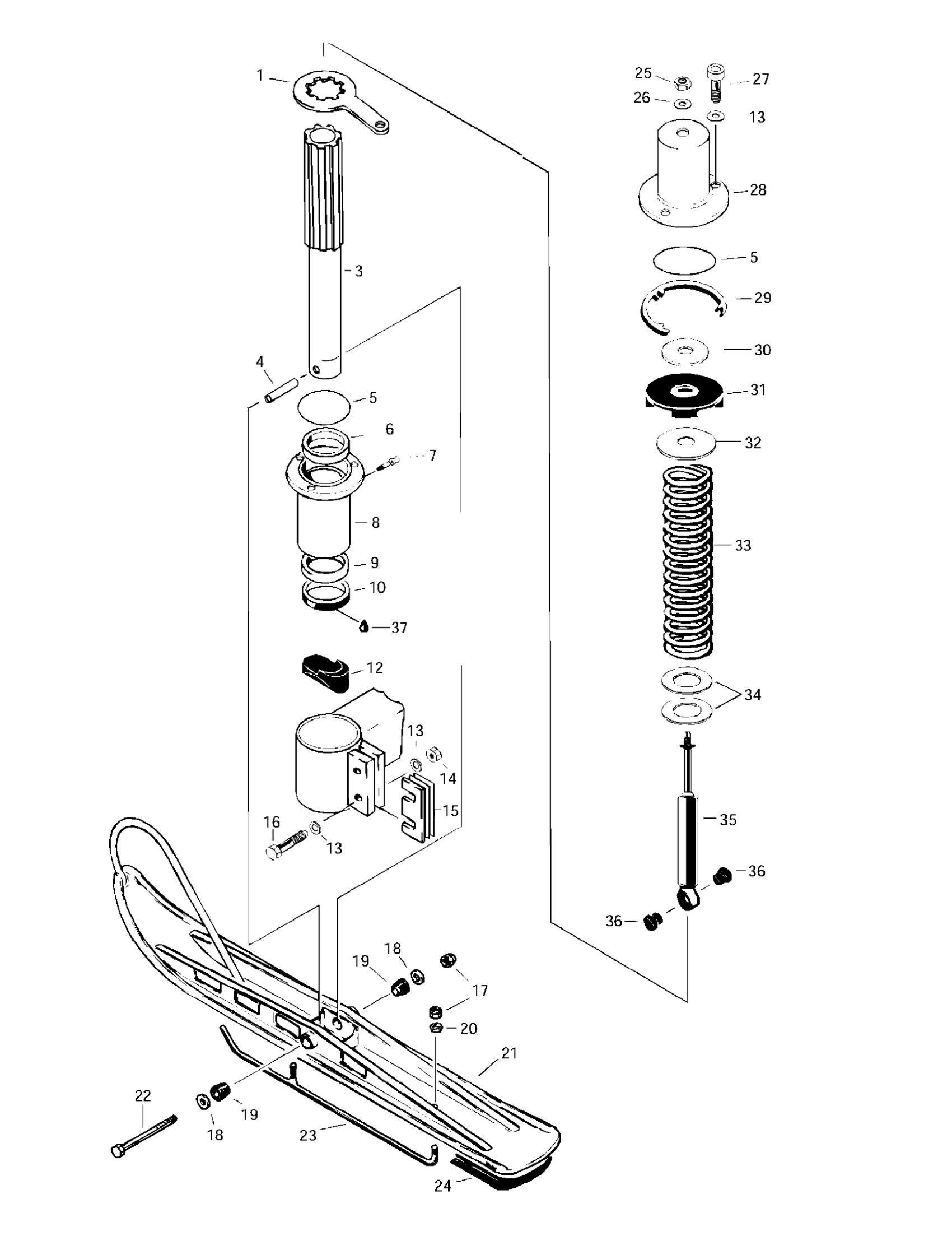

Ski-Doo Skandic Wide Track, 1997 07- Front Suspension And Ski Diagram

#

Description
Price

1

Steering Arm 8Te This part replaces M5340383.

5340383

$83.99

3

Ski Leg | Skandic Super Wide Track.

M5240384

Unavailable

4

Ski Cushion | SWT, WTLC This part replaces M549716.

549716

$41.49

5

O-Ring | Skandic Super Wide Track.

M5440031

Unavailable

6

Upper Cushion

414803100

$10.49

7

Grease Fitting | Skandic Super Wide Track.

M34100

Unavailable

8

Leg Housing R.H | Skandic Super Wide Track.

M5340388

Unavailable

Leg Housing L.H | Skandic Super Wide Track.

M5340387

Unavailable

9

Lower Cushion

414803200

$14.68

10

Seal - Call your local BRP dealership This part replaces M316373.

316373

$28.99

12

STOPPER - Call your local BRP dealership | SWT, WTLC

M5341750

Unavailable

13

Lock Washer 8 mm

234181401

$0.92

14

Hex. Elastic Stop Nut M8

232581414

$0.56

15

LTS Bushing 4 mm | Skandic Super Wide Track.

M5440595

Unavailable

LTS Bushing 5 mm | Skandic Super Wide Track.

M5440594

Unavailable

16

Socket Head Screw M8 X 45

M40286

Unavailable

17

Elastic Locking Nut M10 X 1.5

233601416

$1.69

18

WASHER-BLACK - Call your local BRP dealership

M20012

Unavailable

19

Cone Rubber | SWT, WTLC This part replaces M547543.

547543

$16.49

20

Flat Washer 10 mm

234001410

$1.26

21

Welded Ski

M528870

Unavailable

22

Screw

M40338

Unavailable

23

Carbide Ski Runner

M536131

Unavailable

24

Standard Plastic Ski Liner 155 mm

ME52930541

Unavailable

25

Elastic Locking Nut M10 X 1.5

233601416

$1.69

26

Lock Washer

M20015

Unavailable

27

Socket Head Screw M8 X 45

M40286

Unavailable

28

Welded cover

M5240019

Unavailable

29

SPACER - Call your local BRP dealership

503145600

Unavailable

30

Absorberfibber washer - Call your local BRP dealership

605455680

Unavailable

31

Stopper

570025800

$14.99

32

Absorberfibber washer - Call your local BRP dealership

605455680

Unavailable

33

Spring

M549756

Unavailable

34

Washer This part replaces M549493.

549493

$15.28

35

Shock | Skandic Super Wide Track.

M23017

Unavailable

36

Cushion

572034500

$12.58

37

Loctite 243, 10 ml

293800060

$21.49
