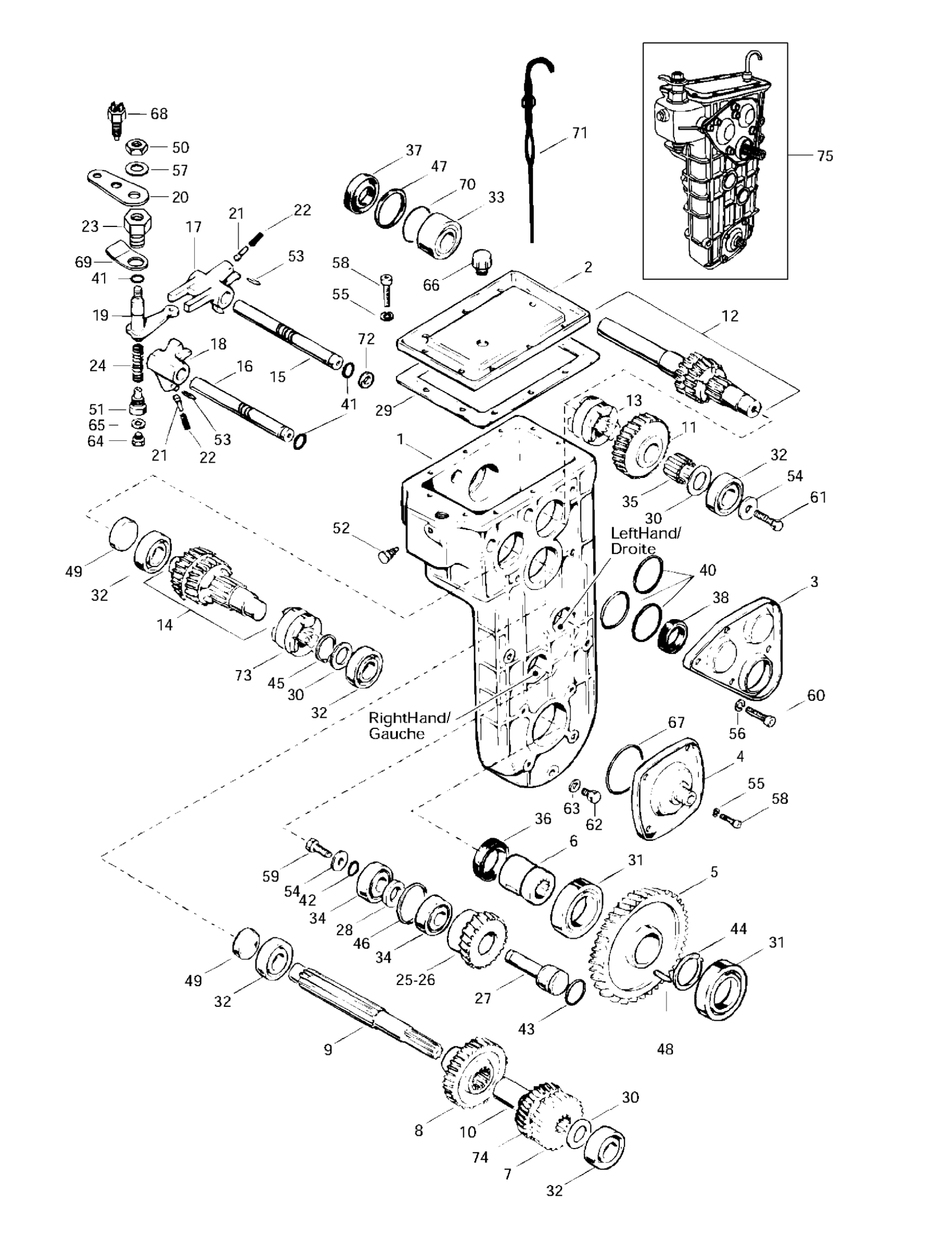

Ski-Doo Skandic Wide Track, 1997 05- Transmission Diagram

#

Description
Price

1

Chaincase | Skandic Wide Track LC.

M875147642

Unavailable

2

Cover | Skandic Wide Track LC.

M875156071

Unavailable

3

Cover Side | Skandic Wide Track LC.

M875146116

Unavailable

4

Lower Side Cover | Skandic Wide Track LC.

M875146416

Unavailable

5

Lower Wheel | Skandic Wide Track LC.

M875155048

Unavailable

6

Lower Shaft | Skandic 500F. Skandic 500F (SWT).

M875136962

Unavailable

7

Sprocket (30 Teeth)

M875156082

Unavailable

8

Sprocket | Skandic Wide Track LC.

M875146043

Unavailable

9

Shaft | Skandic Wide Track LC.

M875147162

Unavailable

10

Sleeve | Skandic Wide Track LC.

M875146112

Unavailable

11

Sprocket (29 Teeth)

M875156123

Unavailable

12

Clutch Shaft Ass'y | Skandic Wide Track LC.

M875146076

Unavailable

13

Clutch Wheel | Skandic Wide Track LC.

M875156120

Unavailable

14

Shaft | Skandic Wide Track LC.

M875146049

Unavailable

15

Shifter | Skandic Wide Track LC.

M875146093

Unavailable

16

Shifter | Skandic Wide Track LC.

M875146094

Unavailable

17

Gear Change Fork | Skandic Wide Track LC.

M875147874

Unavailable

18

Gear Change Fork | Skandic Wide Track LC.

M875146019

Unavailable

19

Lever | Skandic Wide Track LC.

M875146095

Unavailable

20

Shifter | Skandic Wide Track LC.

M875156004

Unavailable

21

Roll Pin | Skandic Wide Track LC.

M875119655

Unavailable

22

Spring | Skandic Wide Track LC.

M875147818

Unavailable

23

Sleeve | Skandic Wide Track LC.

M875156035

Unavailable

24

Spring | Skandic Wide Track LC.

M875146111

Unavailable

25

Sprocket (33 Teeth) | Skandic Wide Track LC.

M875156083

Unavailable

Gear Set L.H

M875156106

Unavailable

26

Sprocket (33 Teeth) | Skandic Wide Track LC.

M875147644

Unavailable

Lower Gear Set R.H

M875152220

Unavailable

27

Axe *Shaft This part replaces M875147204.

875147204

$132.49

28

Washer

M875147205

Unavailable

29

Seal | Skandic Wide Track LC.

M875146411

Unavailable

30

Washer | Skandic Wide Track LC.

M616092035

Unavailable

31

Bearing - Call your local BRP dealership This part replaces M6008.

6008

Unavailable

32

Bearing - Call your local BRP dealership This part replaces M6304.

6304

$41.99

33

Ball Bearing | Skandic Wide Track LC.

M3205

Unavailable

34

BALL BEARING - Call your local BRP dealership This part replaces M610063036.

610063036

Unavailable

35

Needle bearing This part replaces M611002529.

611002529

$27.49

36

Seal oil - Call your local BRP dealership | Skandic 500F. This part replaces M2652101.

2652101

$16.99

37

Oil Seal | Skandic Wide Track LC.

M614102552

Unavailable

38

Oil Seal | Skandic Wide Track LC.

M614102040

Unavailable

40

Ring-O | Skandic Wide Track LC.

M614605225

Unavailable

41

Ring-O | Skandic Wide Track LC.

M614601024

Unavailable

42

O-RING - Call your local BRP dealership This part replaces M614601224.

614601224

Unavailable

43

O-ring This part replaces M614602431.

614602431

$11.60

44

CIRCLIP - Call your local BRP dealership

M617300040

Unavailable

45

CIRCLIP - Call your local BRP dealership This part replaces M617450028.

617450028

$12.49

46

Circlip - Call your local BRP dealership This part replaces M617330047.

617330047

Unavailable

47

Retaining Ring (1=10Pcs) This part replaces M31002.

31002

$8.11

48

Key | Skandic 500F. Skandic 500F (SWT).

M603345070

Unavailable

49

Plug | Skandic Wide Track LC.

M640016036

Unavailable

50

Nut | Skandic Wide Track LC.

M505611402

Unavailable

51

Spring Holder | Skandic Wide Track LC.

M875146099

Unavailable

52

Screw | Skandic Wide Track LC.

M875146697

Unavailable

53

Pin Spring

M043030

Unavailable

54

WASHER - Call your local BRP dealership

M501150902

Unavailable

55

Washer | Skandic Wide Track LC.

M500950602

Unavailable

56

Washer | Skandic Wide Track LC.

M500950802

Unavailable

57

Washer-Spring | Skandic Wide Track LC.

M500451402

Unavailable

58

Allen Screw | Skandic Wide Track LC.

M581804182

Unavailable

59

Hex. Screw M8 x 16

207181644

$1.15

60

Allen Screw | Skandic Wide Track LC.

M581804582

Unavailable

61

Hex. Screw M8 X 20

207182044

$0.74

62

Hex. Screw M8 x 10 | Skandic Wide Track LC.

222081065

Unavailable

63

Ring Gasket | Skandic Wide Track LC.

M615580711

Unavailable

64

Plug | Skandic Wide Track LC.

M640046008

Unavailable

65

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

66

Plug Plastic | Skandic Wide Track LC.

M33025

Unavailable

67

O-Ring | Skandic Wide Track LC.

M614606825

Unavailable

68

Backup Sender | Skandic Wide Track LC.

M654100223

Unavailable

69

Support | Skandic Wide Track LC.

M875156003

Unavailable

70

Shim

M617394252

Unavailable

71

Dipstick | Skandic Wide Track LC.

M875152352

Unavailable

72

Shim | Skandic Wide Track LC.

M617390915

Unavailable

73

Wheel Clutch | Skandic Wide Track LC.

M875146948

Unavailable

74

Sprocket (32 Teeth) | Skandic Wide Track LC.

M875147873

Unavailable

75

Transmission Ass'y

M870156118

Unavailable
