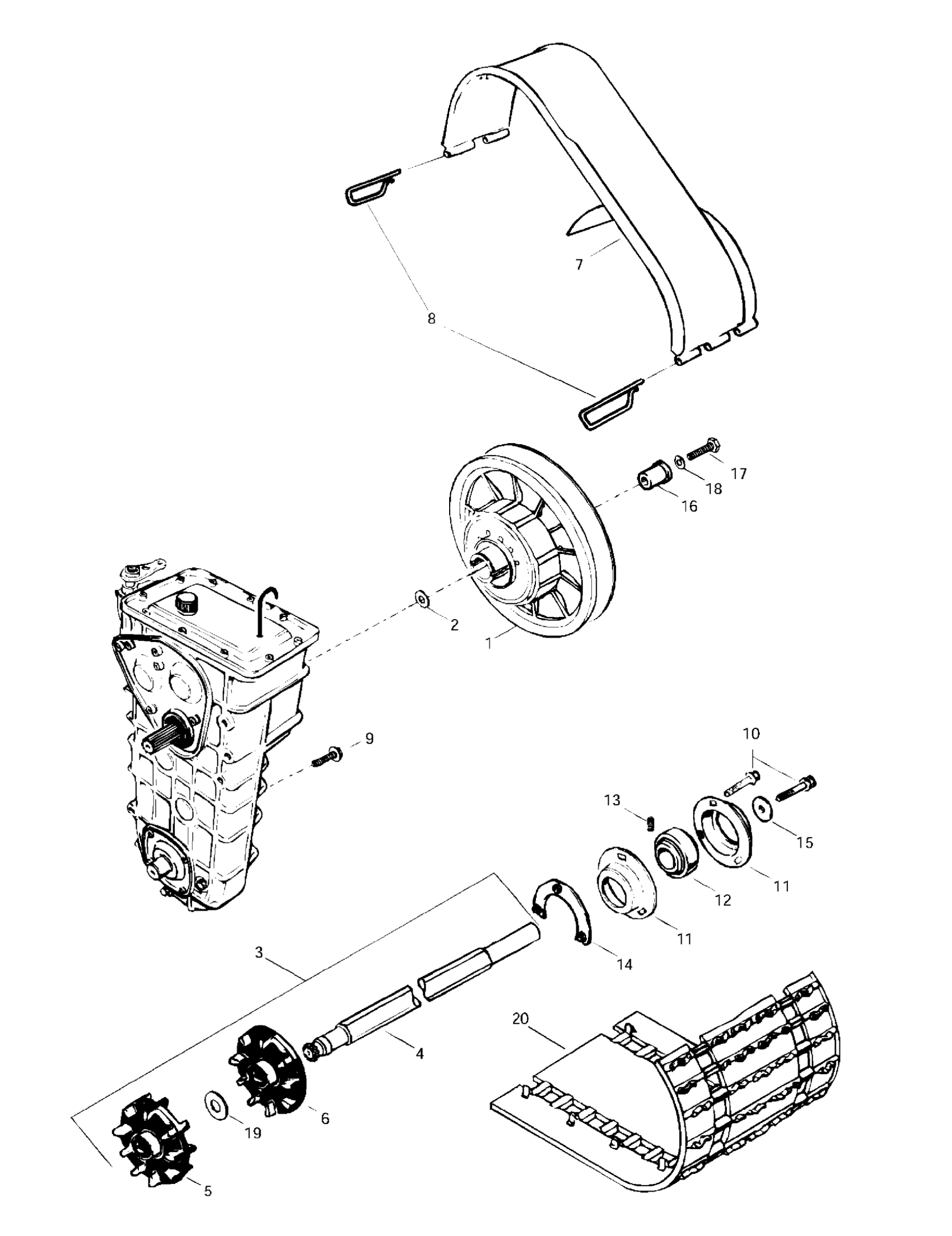

Ski-Doo Skandic Wide Track, 1997 05- Drive Axle, Track And Belt Guard Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Shim 2mm | Skandic Wide Track LC.

M542876

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Drive Axle

M539721

Unavailable

5

Sprocket | Skandic SWT.

M539749

Unavailable

6

Sprocket

M539750

Unavailable

7

Belt Guard | Skandic Wide Track LC.

M5140175

Unavailable

8

Pin | Skandic Wide Track LC.

M543027X

Unavailable

9

Screw

M40316

Unavailable

10

Screw

M40056

Unavailable

11

Bearing House This part replaces M534430.

534430

$23.99

12

BALL BEARING - Call your local BRP dealership | Includes 24 to 25

M31UC205

Unavailable

13

BALL BEARING - Call your local BRP dealership | Includes 24 to 25

M31UC205

Unavailable

14

Fasten Ring Weld This part replaces M546421.

546421

$40.99

15

Washer

M546336

Unavailable

16

Counter Shaft Extension | Skandic Wide Track LC.

M548548

Unavailable

17

Hex. Screw M8 X 55

207085544

$1.68

18

Lock Washer 8 mm

234181401

$0.92

19

Washer | Skandic Wide Track. Skandic Wide Track LC.

M5440766

Unavailable

20

Track ass'y | Includes 10 to 12 This part replaces M13070.

13070

$1.00
