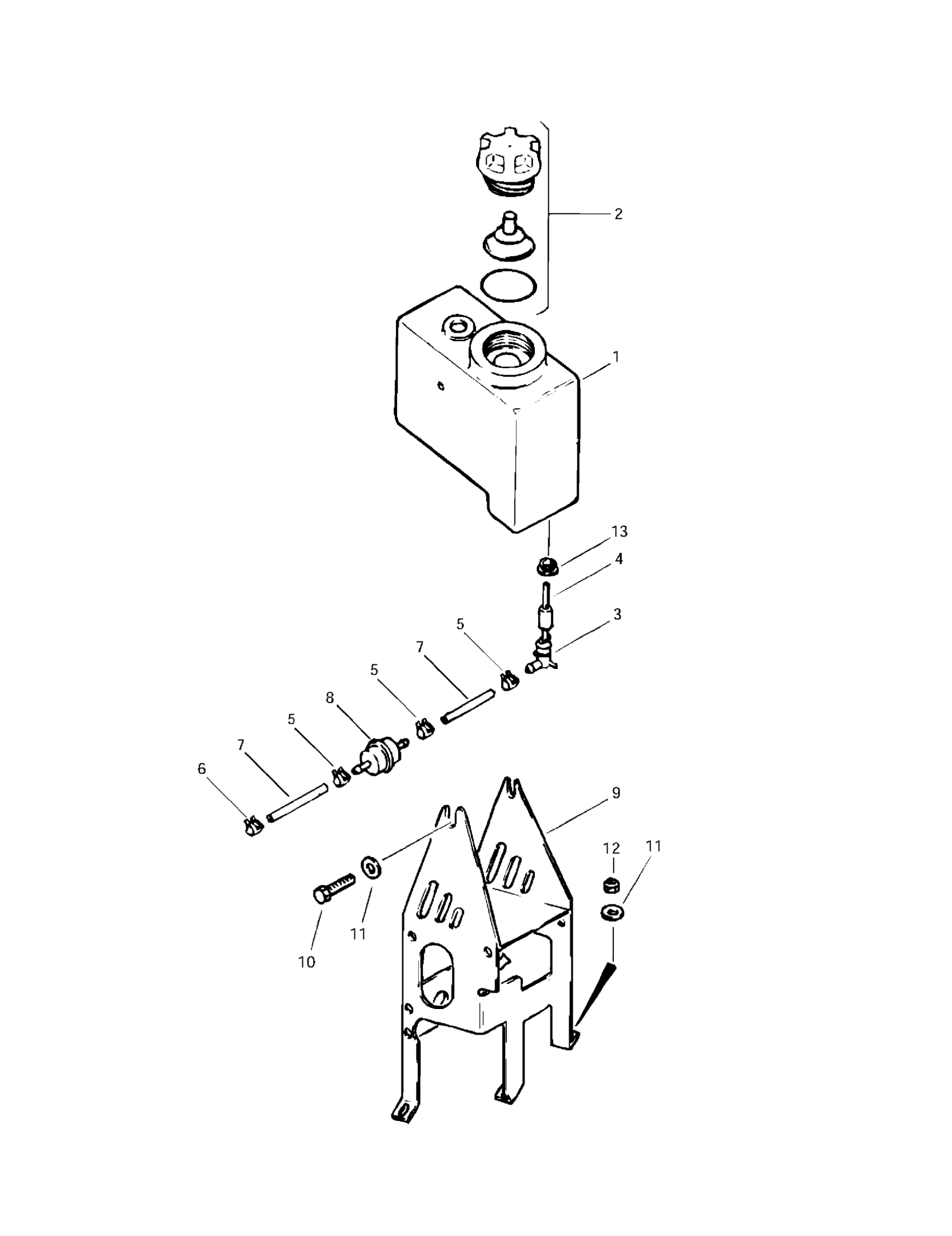

Ski-Doo Skandic Wide Track, 1997 Oil Tank And Support Diagram

#

Description

Price

1

Oil Tank

571002500

Unavailable

2

OIL TANK CAP - Call your local BRP dealership

580657210

Unavailable

3

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

4

Float

414681900

Unavailable

5

Spring Clamp

414415200

$0.81

6

Spring Clamp

414420700

$0.66

7

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

8

Filter

414536500

$3.73

9

Support

M539753

Unavailable

10

HEX. SCREW M6 X 12 - Call your local BRP dealership

207161244

Unavailable

11

Lock Washer M6, Black

234161471

$0.51

12

Elastic Stop Nut M6

232561414

$1.78

13

Insulating Ring

570023000

$5.30
