Description

Price

1

PUMP MOUNTING FLANGE - Call your local BRP dealership

420910160

Unavailable

2

Oil Pump Ass'y (Incl. It. 19-32) | Skandic Super Wide Track.

420886096

Unavailable

3

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

4

Oil Pump Gear, 27 Teeth

420935930

$16.33

5

Elastic Stop Nut M6

232561414

$0.55

6

Screw

420841971

$2.96

7

NEEDLE PIN - Call your local BRP dealership

420832260

Unavailable

8

Flat Washer 4

420244072

$1.01

9

Gear, 9 Teeth

420935970

$15.89

10

Taptite Screw M5 X 16

420941928

Unavailable

11

Washer | Formula Deluxe 380.

420945530

Unavailable

12

Sealing Washer

404146600

$2.97

13

Valve Ass’Y

420956010

$17.53

14

Banjo Bolt M6 X 16

404146800

Unavailable

15

Oil Hose 1500Mm Long

219704404

$17.26

16

Oil Hose 1500Mm Long

219704404

$17.26

17

Rubber Ring

420960700

Unavailable

18

Clamp

420853840

$4.44

19

Not Available As Spare Part - Friction Washer

Unavailable

20

O-Ring | Skandic Wide Track. Skandic Super Wide Track.

420230475

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

SCREW M4 X 8 WITH LOCK WASHER - Call your local BRP dealership

420241975

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Gasket

420850200

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

GASKET - Call your local BRP dealership

420227505

Unavailable

27

Hex. Screw M6 X 8

420841580

$1.15

28

Release Spring | Skandic Super Wide Track.

420838020

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Control Lever | Skandic Wide Track. Skandic Super Wide Track.

420848256

Unavailable

31

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

32

Hex. Nut M6 | Tundra.

420242621

Unavailable

33

Not Available As Spare Part - Friction Washer

Unavailable

34

SET-GASKET - Call your local BRP dealership | Skandic Wide Track. Skandic Super Wide Track.

420995046

Unavailable

35

Loctite 243, 10 ml

293800060

$21.49

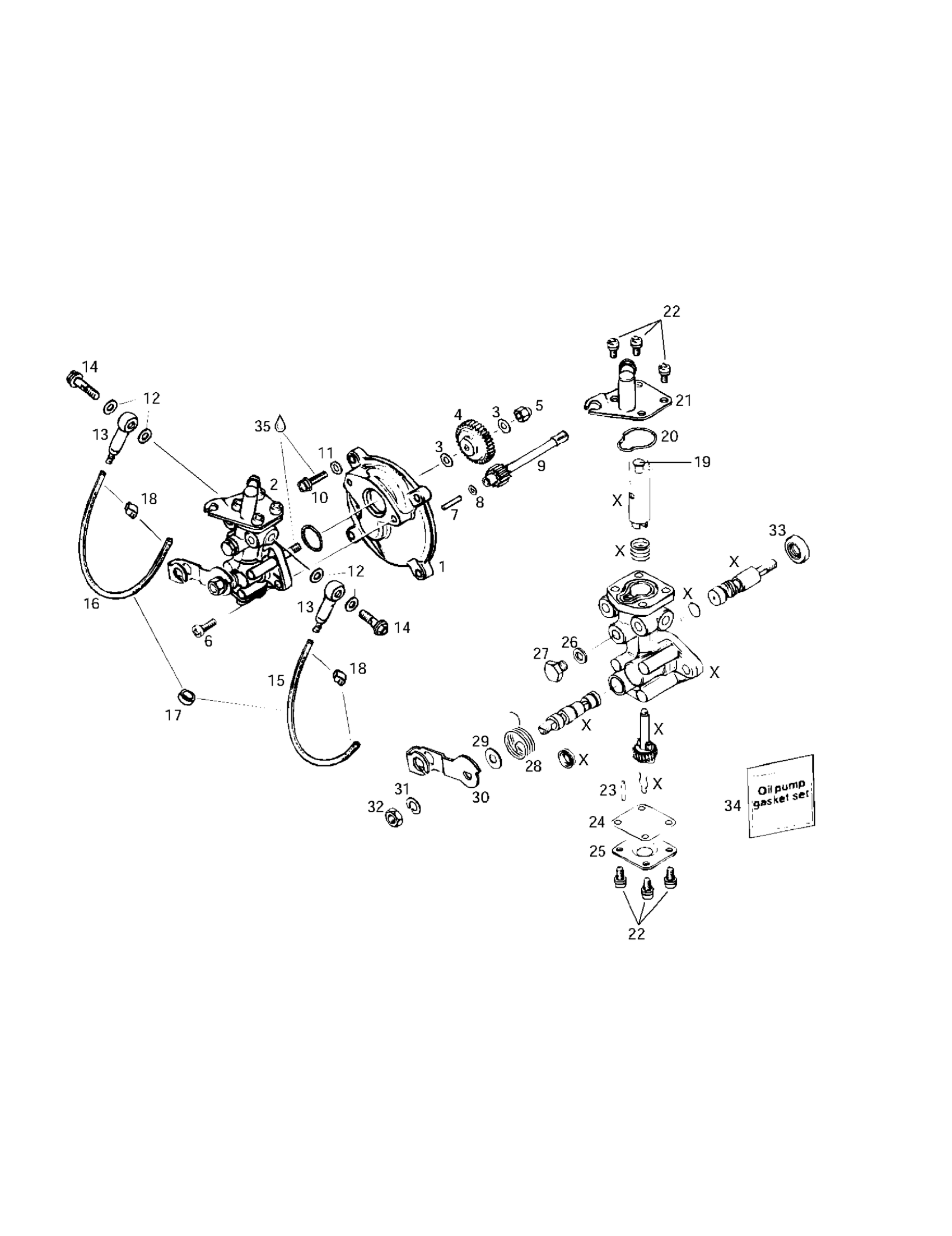

Ski-Doo Skandic Wide Track, 1997 02- Oil Injection System Diagram

PUMP MOUNTING FLANGE - Call your local BRP dealership

Oil Pump Ass'y (Incl. It. 19-32) | Skandic Super Wide Track.

FLAT WASHER - Call your local BRP dealership

Oil Pump Gear, 27 Teeth

Elastic Stop Nut M6

Screw

NEEDLE PIN - Call your local BRP dealership

Flat Washer 4

Gear, 9 Teeth

Taptite Screw M5 X 16

Washer | Formula Deluxe 380.

Sealing Washer

Valve Ass’Y

Banjo Bolt M6 X 16

Oil Hose 1500Mm Long

Oil Hose 1500Mm Long

Rubber Ring

Clamp

Not Available As Spare Part - Friction Washer

O-Ring | Skandic Wide Track. Skandic Super Wide Track.

Not Available As Spare Part - Friction Washer

SCREW M4 X 8 WITH LOCK WASHER - Call your local BRP dealership

Not Available As Spare Part - Friction Washer

Gasket

Not Available As Spare Part - Friction Washer

GASKET - Call your local BRP dealership

Hex. Screw M6 X 8

Release Spring | Skandic Super Wide Track.

Not Available As Spare Part - Friction Washer

Control Lever | Skandic Wide Track. Skandic Super Wide Track.

WASHER-LOCK DIN.128 - Call your local BRP dealership

Hex. Nut M6 | Tundra.

Not Available As Spare Part - Friction Washer

SET-GASKET - Call your local BRP dealership | Skandic Wide Track. Skandic Super Wide Track.

Loctite 243, 10 ml
