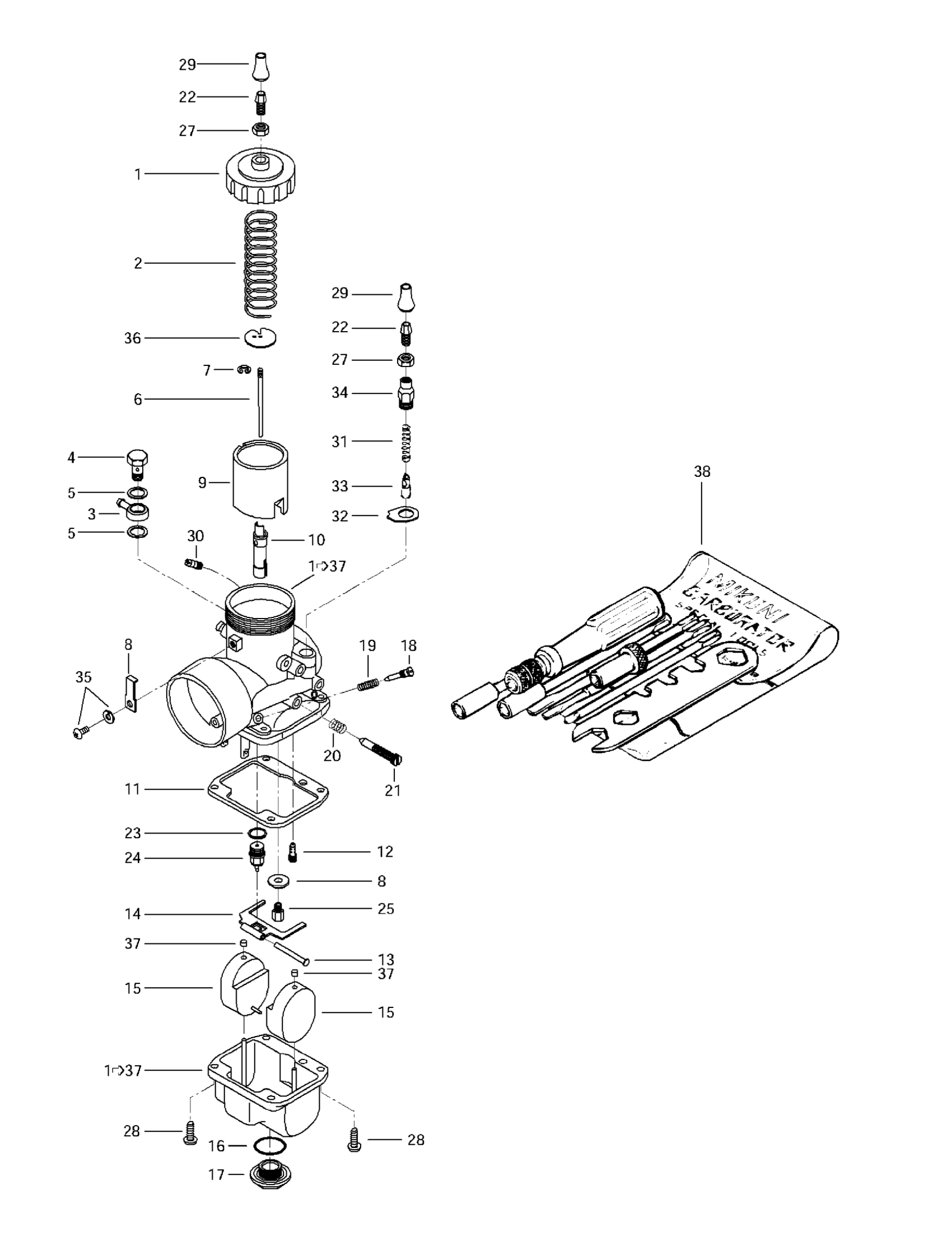

Ski-Doo Skandic Wide Track, 1997 Carburetors Diagram
#
Description
Price
1
Carburetor VM-32-269
403133500
Unavailable
1
Cover | Skandic Super Wide Track.
404129600
Unavailable
2
Throttle Valve Spring
404152700
Unavailable
3
BANJO FITTING - Call your local BRP dealership
404130000
Unavailable
4
Not Available As Spare Part - Friction Washer
Unavailable
5
Washer-Banjo Fitting | Skandic Super Wide Track.
404158200
Unavailable
6
Jet Needle J8 6DH8 | Skandic Super Wide Track.
404124400
Unavailable
7
E-Ring
404102400
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Valve Piston 3.0
404158400
Unavailable
10
Needle Jet
404130200
Unavailable
11
Gasket pan
404117900
Unavailable
12
Pilot Jet PJ 25 | Skandic Super Wide Track.
404110300
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
21
IDLE SPEED SCREW - Call your local BRP dealership
404102800
Unavailable
22
Not Available As Spare Part - Friction Washer
Unavailable
23
Washer | Skandic Super Wide Track.
404117600
Unavailable
24
Needle valve
404117700
Unavailable
25
WASHER - Call your local BRP dealership
404102200
Unavailable
26
MAIN JET, MJ 230 - Call your local BRP dealership | Skandic Super Wide Track.
404118900
Unavailable
27
Nut | Skandic Super Wide Track.
404121600
Unavailable
28
Screw
404118500
Unavailable
29
Not Available As Spare Part - Friction Washer
Unavailable
30
NIPPLE - Call your local BRP dealership
404127600
Unavailable
31
SPRING - Call your local BRP dealership | MAG Side
404127400
Unavailable
32
Washer
404158300
Unavailable
33
Plunger Ass'y | Formula Deluxe 380.
404127500
Unavailable
34
Support-Guide | Skandic Super Wide Track.
404129200
Unavailable
35
Not Available As Spare Part - Friction Washer
Unavailable
36
PLATE - Call your local BRP dealership
404103800
Unavailable
38
TOOL KIT - Call your local BRP dealership
404112000
Unavailable
39
High Altitude Kit (Not Shown)
861758000
Unavailable
