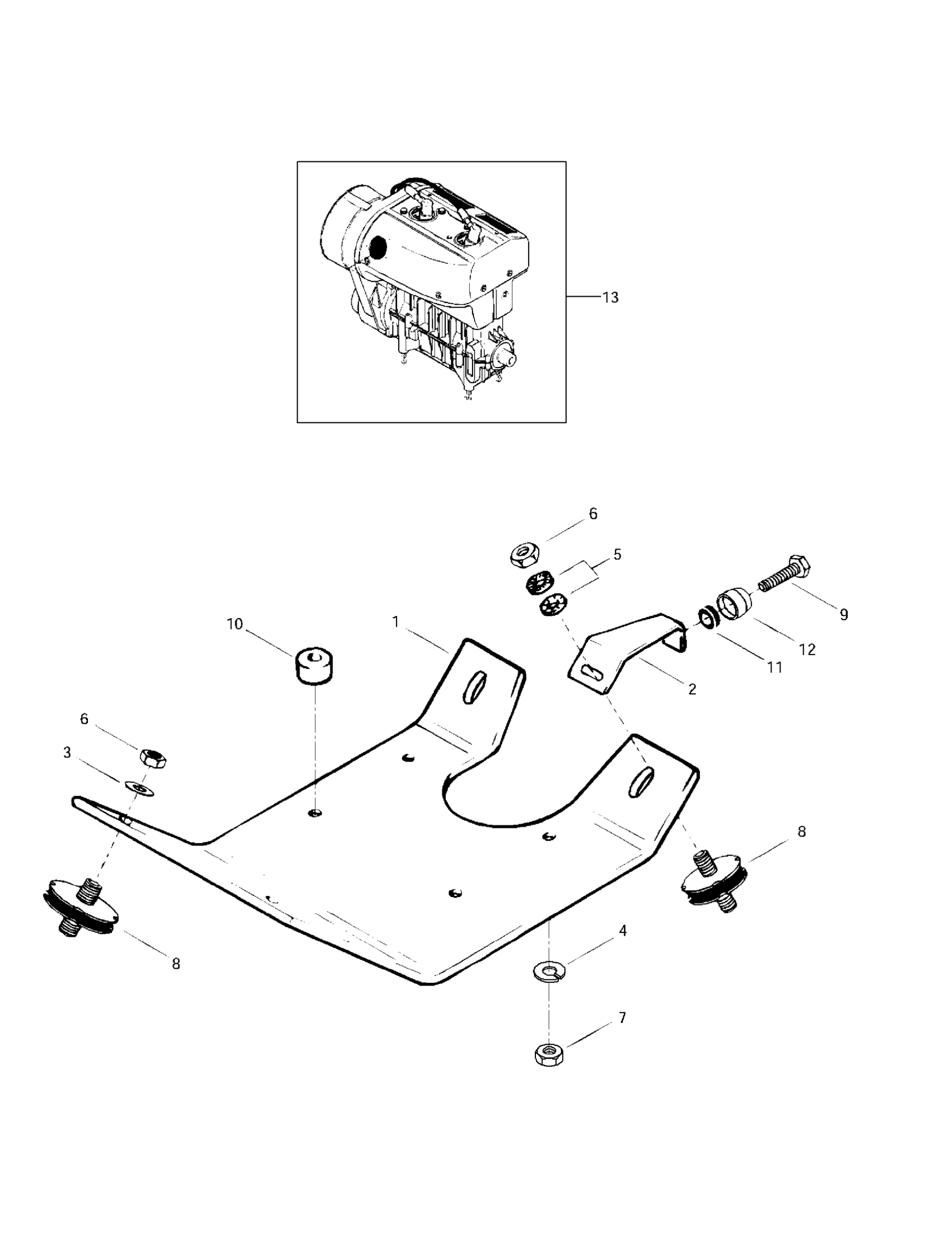

Ski-Doo Skandic Wide Track, 1997 Engine Support Diagram

#

Description

Price

1

Engine Support | Skandic Super Wide Track.

M539593

Unavailable

2

Support

M539902

Unavailable

3

Lock Washer

512056700

$3.17

4

Lock Washer 8 mm

234181401

$0.92

5

Lock Washer

M20015

Unavailable

6

Hex. Nut M10 X 1.5

232006414

$1.37

7

Nut

M33001

Unavailable

8

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

9

Hex. Screw M8 X 30

207183044

$1.15

10

Sleeve - Call Your Local BRP Dealership

M5440678

Unavailable

11

Rubber Washer

M2846014

Unavailable

12

SLEEVE - Call your local BRP dealership

605449240

Unavailable

13

<<503>> Engine | Skandic Super Wide Track.

400508900

Unavailable
