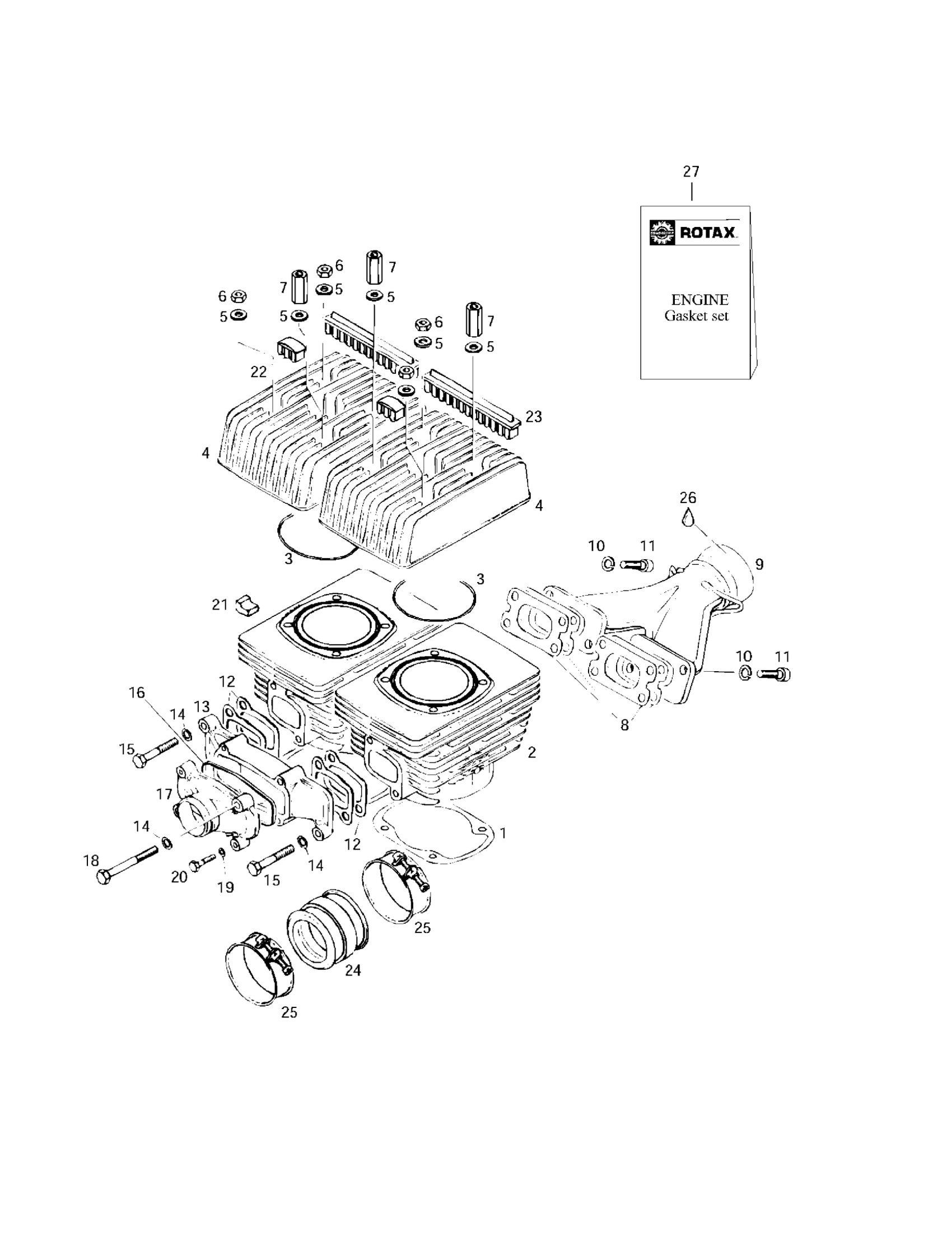

Ski-Doo Skandic Wide Track, 1997 01- Cylinder, Exhaust Manifold Diagram

#

Description
Price

1

Gasket 0.4 mm

420831858

$13.16

2

REBUILD-CYLINDER 503CC - Call your local BRP dealership This part replaces 420923417.

421000500

Unavailable

3

O-Ring This part replaces 420850540.

293300026

$3.39

4

Cylinder head | Skandic 500.

420823664

Unavailable

5

Flat Washer 8.4 mm

420250315

$1.15

6

Hex. Nut M8

232081414

$0.72

7

Distance Nut M8 x 37 | Skandic Wide Track LC.

420842050

Unavailable

8

Gasket 1.0 mm

420831849

$8.85

9

Exhaust Manifold Ass'y | Skandic Super Wide Track.

420878936

Unavailable

10

Lock Washer 8 mm

234181401

$0.92

11

Socket Head Screw M8 X 30

205083044

$1.15

12

INTAKE GASKET 1.0 MM - Call your local BRP dealership

420831867

Unavailable

13

Intake Manifold | Skandic Super Wide Track.

420867450

Unavailable

14

Washer-Lock Din.128

420945832

$1.15

15

Hex. Screw M8 X 40

207084044

$1.15

16

RING-RUBBER - Call your local BRP dealership | Skandic Super Wide Track. This part replaces 420850150.

420850151

$8.09

17

Intake Cover Ass'y | Skandic Super Wide Track.

420867462

Unavailable

18

Hex. Screw M8 x 65

207086544

$1.47

19

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

20

Hex. Screw M6 X 30

207063044

$1.26

21

Rubber Damper | Skandic Wide Track LC.

420860060

Unavailable

22

Short-Noise Damper | Skandic Wide Track LC.

570125800

Unavailable

23

Long-Noise Damper | Skandic Wide Track LC.

570125900

Unavailable

24

Flange

420867481

$14.49

25

Clamp

420951510

Unavailable

26

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

27

Engine Gasket Set | Skandic Wide Track. Skandic Super Wide Track.

420994236

Unavailable
