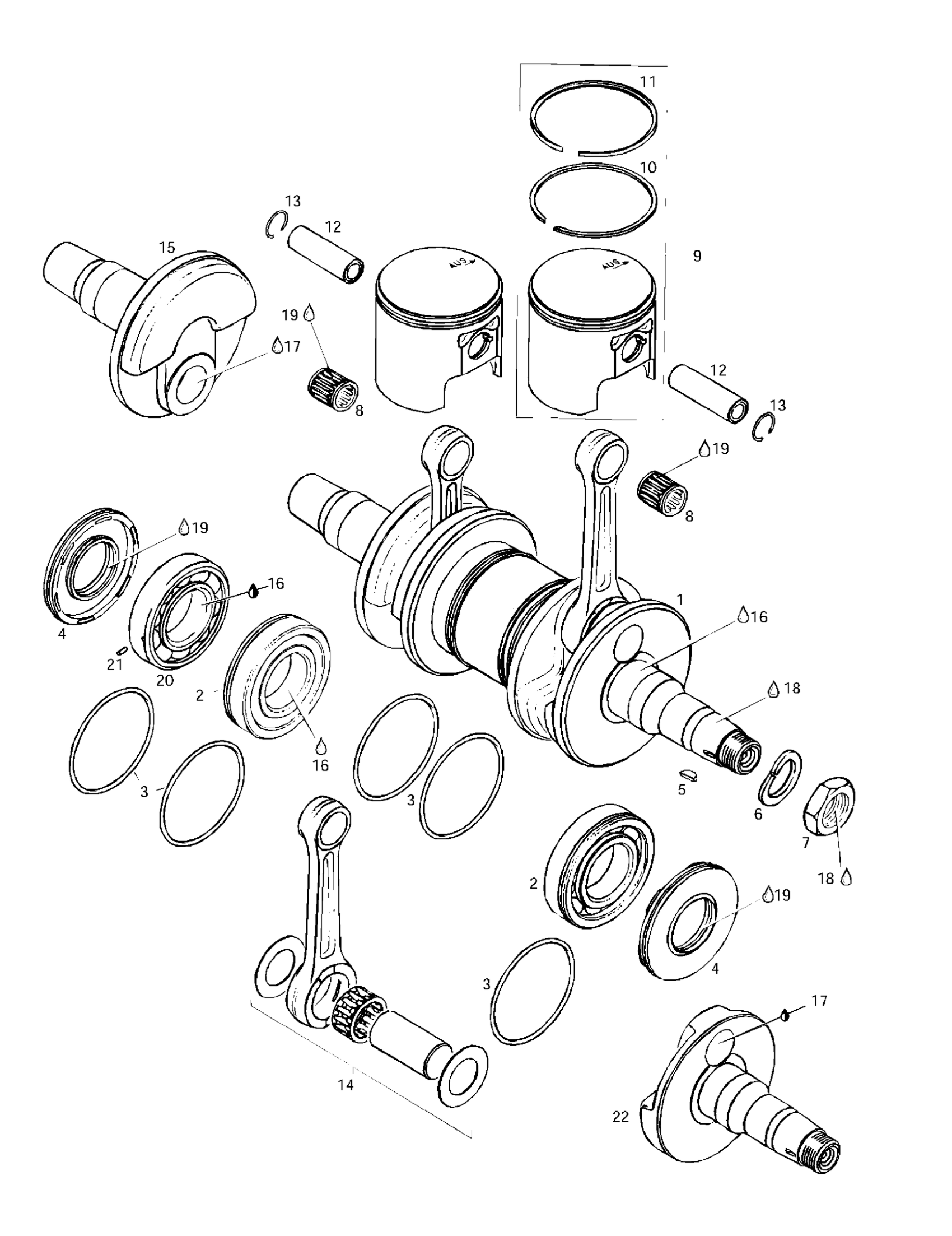

Ski-Doo Skandic Wide Track, 1997 01- Crankshaft Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 - 6. Formula Deluxe 500.

420996447

Unavailable

2

Bearing_Ball This part replaces 290832231.

420832584

$41.49

3

O-Ring, 64 mm X 2 mm

293300022

$12.72

4

Oil Seal This part replaces 290831952.

420831952

$18.01

5

Woodruff Key

420246055

$2.43

6

Lock Washer, 22 mm

420945759

$1.90

7

Hex. Nut, M22 X 1.5

420842239

$17.53

8

Needle Bearing

420932904

$15.89

9

Piston 71.91, Std | 22 to 24 This part replaces 420888175.

420890070

$169.99

Piston 72.16, 1st Oversize This part replaces 420888176.

420890071

$169.99

Piston 72.41, 2nd Oversize This part replaces 420888177.

420890072

$154.49

10

RECTANGULAR RING 72 MM, STD - Call your local BRP dealership

420915850

Unavailable

RECTANGULAR RING 72.25 MM, 1ST - Call your local BRP dealership

420915851

Unavailable

RECTANGULAR RING 72.5 MM, 2ND - Call your local BRP dealership

420915852

Unavailable

11

Semi-Trapez Ring 72.00 mm

420215235

Unavailable

Semi-Trapez Ring 72.25 mm

420215236

Unavailable

Semi-Trapez Ring 72.50 mm

420215237

Unavailable

12

PISTON PIN - Call your local BRP dealership

420916185

Unavailable

13

Piston Circlip

420945735

$4.46

14

Crankshaft Repair Kit | Skandic 500F. Skandic 500F (SWT).

420994564

Unavailable

15

Half Crankshaft PTO | Touring SLE.

420818242

Unavailable

16

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

17

Sealant Loctite 648

219703000

$45.99

18

Loctite 243, 10 ml

293800060

$21.49

19

Dow Corning 111, 150 g

413707000

$59.99

20

Ball Bearing

420832573

$44.49

20

Ball Bearing

420832573

$44.49

21

Dowel Pin

420929972

Unavailable

22

CRANKSHAFT HALF MAG - Call your local BRP dealership

420819020

Unavailable
