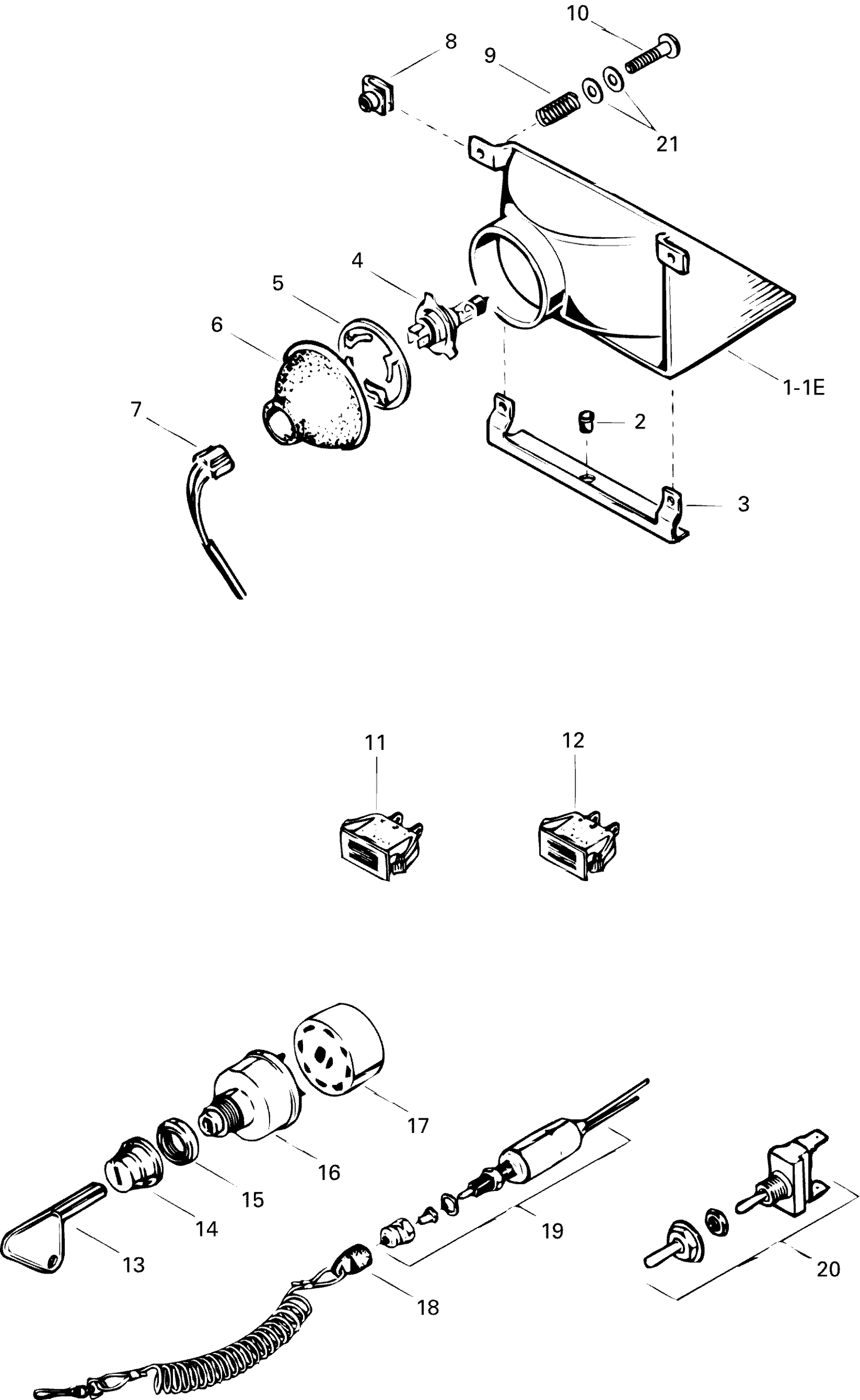

Ski-Doo Skandic Wide Track, 1996 10- Electrical System 1 Diagram
#
Description
Price
1
HEADLAMP ASS'Y - Call your local BRP dealership | Includes 1 - 1E.
410608800
Unavailable
1A
RUBBER STOPPER - Call your local BRP dealership
410608200
Unavailable
1C
PROTECTOR CAP - Call your local BRP dealership
410607100
Unavailable
1D
BULB HOLDER - Call your local BRP dealership
410608300
Unavailable
1E
Headlamp
410608900
Unavailable
2
RUBBER STOPPER - Call your local BRP dealership
410608200
Unavailable
3
HOLDER - Call your local BRP dealership
M539864
Unavailable
5
BULB HOLDER - Call your local BRP dealership
410608300
Unavailable
6
PROTECTOR CAP - Call your local BRP dealership
410607100
Unavailable
7
Tab Connector Housing
M1200909
Unavailable
8
Projector Nut
572018300
Unavailable
10
Screw M4 x 40
732603002
Unavailable
11
Pilot Lamp (Red)
410109500
Unavailable
12
Pilot Lamp (Blue)
410109600
Unavailable
15
FACE NUT - Call your local BRP dealership
410112100
Unavailable
16
Ignition Switch
410103100
Unavailable
17
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership
572150700
Unavailable
18
Cap Ass’y
M4299163
Unavailable
19
Switch
M544139
Unavailable
20
Heat Grip Switch
M42007
Unavailable
