Description

Price

1

Dash Decal | Skandic Wide Track.

414959600

Unavailable

2

Warning Label

414995800

Unavailable

3

Reverse Decal

414976900

Unavailable

4

Heat Grip Decal | Skandic 500F. Skandic 500F (SWT).

414996100

Unavailable

5

Reflector Decal Kit (Red) | Skandic Wide Track. Skandic Wide Track LC.

415018500

Unavailable

6

Warning Decal

414108700

Unavailable

7

Front Identification Decal

414996300

Unavailable

8

<> Logo

414957800

Unavailable

9

<> Decal (White)

414848400

Unavailable

11

<> Decal | Skandic 500.

414995600

Unavailable

12

Side Decal Kit

414968100

Unavailable

13

Adapter

M5440653

Unavailable

14

Hex. Screw M6 X 30

207063044

$1.26

15

Taillamp Housing

414979400

Unavailable

15A

Socket

414979410

Unavailable

15B

Rubber Damper

414979411

Unavailable

16

Hex. Flange Elastic Nut M5

233251414

$1.04

17

Lens

414513700

$28.99

18

Washer - Call your local BRP dealership

414516400

Unavailable

19

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

20

Bulb

520000758

$9.10

21

HITCH ASS'Y - Call your local BRP dealership

5344156

$79.99

21

SPRING - Call your local BRP dealership | Model- EUROPE This part replaces M545693.

545693

Unavailable

22

Hair pin

41029

$4.44

23

Latch

M545225

Unavailable

24

Pin

41012

$6.39

25

HITCH ASS'Y - Call your local BRP dealership

5344156

$79.99

26

Cotter Pin

41031

$7.65

27

Hex. Screw M10 X 40

207004044

$4.76

28

Elastic Locking Nut M10 X 1.5

233601416

$1.69

29

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

30

Hitch Bracket | Skandic WT. Skandic WT LC.

M538918

Unavailable

31

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

$42.99

32

Black, Rivet

M36036

$1.69

33

Snow guard This part replaces M538629.

538629

$95.99

34

Washer 5,3 mm

20008

$0.74

35

Lateral Snow Guard | Skandic Wide Track LC.

M537811

Unavailable

36

Black, Rivet

M36036

$1.69

37

Rivet

36005

$2.11

38

Frame

M519487

Unavailable

39

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

40

Flat Washer 8 mm

234082410

$1.47

41

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

42

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

43

Instruction Label (Hitch)

414998500

Unavailable

44

Mountain Special Kit (Not Shown)

M5240321

Unavailable

45

Emergency Brake Kit (Not Shown)

M5340394

Unavailable

46

Engine/Hood Protector Bar (Not Shown)

M5340389

Unavailable

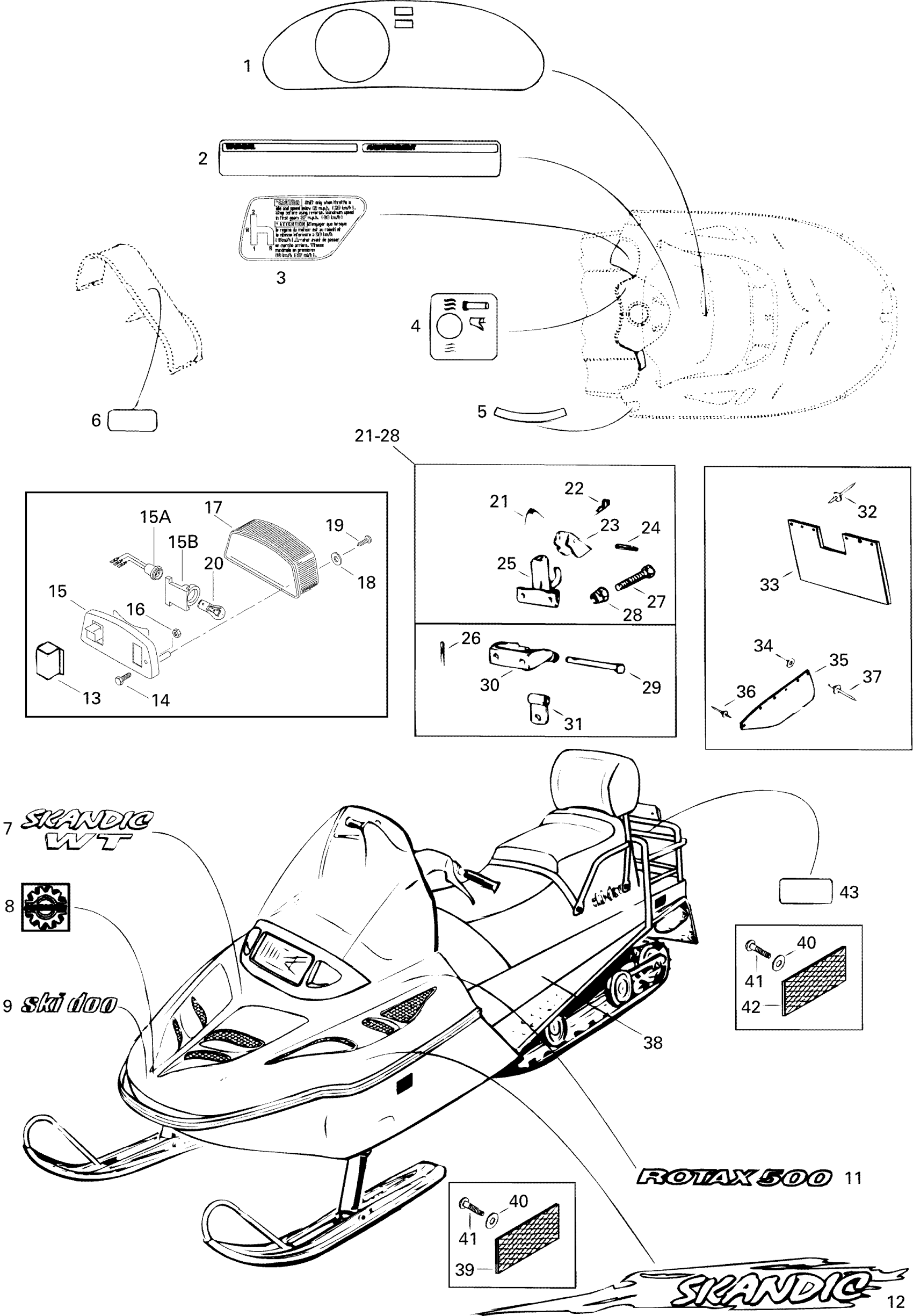

Ski-Doo Skandic Wide Track, 1996 09- Decals Diagram

Dash Decal | Skandic Wide Track.

Warning Label

Reverse Decal

Heat Grip Decal | Skandic 500F. Skandic 500F (SWT).

Reflector Decal Kit (Red) | Skandic Wide Track. Skandic Wide Track LC.

Warning Decal

Front Identification Decal

<> Logo

<> Decal (White)

<> Decal | Skandic 500.

Side Decal Kit

Adapter

Hex. Screw M6 X 30

Taillamp Housing

Socket

Rubber Damper

Hex. Flange Elastic Nut M5

Lens

Washer - Call your local BRP dealership

Phillips Tapping Screw M3.9 X 25

Bulb

HITCH ASS'Y - Call your local BRP dealership

SPRING - Call your local BRP dealership | Model- EUROPE This part replaces M545693.

Hair pin

Latch

Pin

HITCH ASS'Y - Call your local BRP dealership

Cotter Pin

Hex. Screw M10 X 40

Elastic Locking Nut M10 X 1.5

PIN-RETAINER - Call your local BRP dealership | North America

Hitch Bracket | Skandic WT. Skandic WT LC.

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

Black, Rivet

Snow guard This part replaces M538629.

Washer 5,3 mm

Lateral Snow Guard | Skandic Wide Track LC.

Black, Rivet

Rivet

Frame

REFLECTOR, AMBER - Call your local BRP dealership

Flat Washer 8 mm

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

REFLECTOR, RED - Call your local BRP dealership

Instruction Label (Hitch)

Mountain Special Kit (Not Shown)

Emergency Brake Kit (Not Shown)

Engine/Hood Protector Bar (Not Shown)
