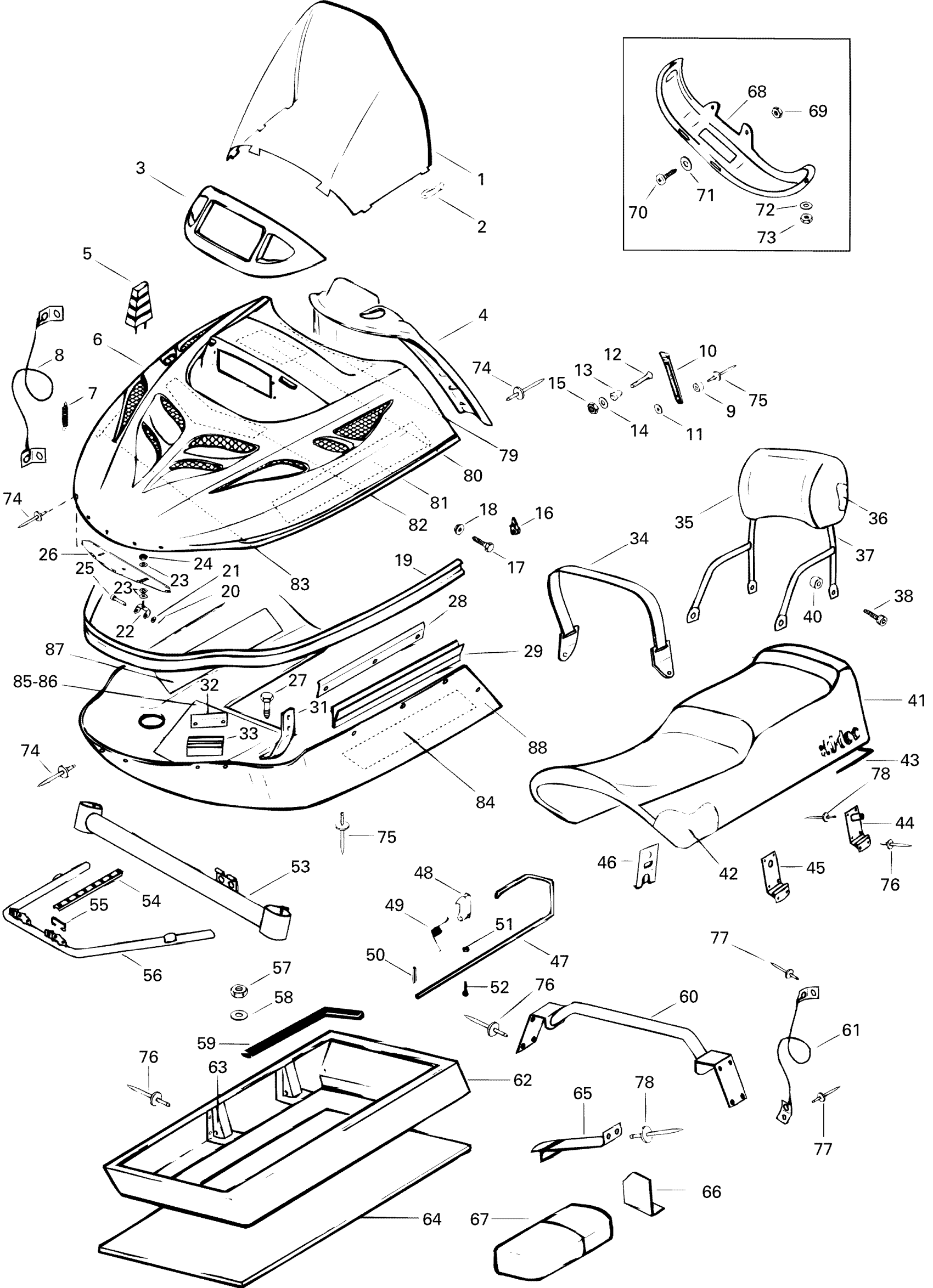

Ski-Doo Skandic Wide Track, 1996 Cab And Console 1 Diagram

#

Description
Price

1

Windshield

M5340168

Unavailable

2

Windshield Latch

570023800

$4.49

3

Lamp Moulding

572079200

Unavailable

4

Dash

M539391

Unavailable

5

Windshield Support

570277900

Unavailable

6

Hood (Black) | Skandic Super Wide Track.

M539385

Unavailable

7

Spring

M2505171211

Unavailable

8

Retainer Cable

M5440745

Unavailable

9

Bushing

M5440681

Unavailable

10

Hood Latch

M531955

Unavailable

11

Flat Washer 6 mm

234062410

$0.77

12

Slot Sc. M4 X 25 Din966M4.8Zne(1=10Pcs) This part replaces M40168.

40168

$2.11

13

Counter Roller

605449087

$4.12

14

Flat Washer M5

234051410

$0.53

15

Elastic Stop Nut M5

232551414

$0.87

16

LH Cap

M549096L

Unavailable

16

RH Cap

M549096R

Unavailable

17

Screw

M40071

Unavailable

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Front Bumper

M539429

Unavailable

20

Cotter Pin

M41048

Unavailable

21

Flat Washer 6 mm

234061410

$1.36

22

Lower Hinge

M5440083

Unavailable

23

Washer 5,3 mm

20008

$0.74

24

Elastic Stop Nut M4

232541414

$0.58

25

Pin-Pivot

M5440711

Unavailable

26

Upper Hinge

M5229926

Unavailable

27

Hex. Screw M8 x 16

207181644

$1.15

28

Guide-Hood

M546852

Unavailable

29

Rubber Guide

M5440621

Unavailable

31

Guide

M5340476

Unavailable

32

Guide-Hood

M542471

Unavailable

33

Rubber Guide

M5440683

Unavailable

34

Belt-Seat | Skandic Wide Track LC.

M5340171

Unavailable

35

COVER-BACKREST - Call your local BRP dealership This part replaces M5340917.

5340917

Unavailable

36

Backrest Foam

M539399

Unavailable

37

Backrest | Skandic 500F. Skandic 600.

M539877

Unavailable

38

Socket Head Screw M8 X 20

205082044

$1.15

40

Spacer

M5440665

Unavailable

41

Seat

M519388

Unavailable

42

Seat Cover

M539489

Unavailable

43

SEALING STRIP PROFIL - Call your local BRP dealership

M5440059

Unavailable

44

HINGE - Call your local BRP dealership

M549874

Unavailable

45

HINGE - Call your local BRP dealership

M5440581

Unavailable

46

Lock Plate

M549732

Unavailable

47

Pivot Pin | Skandic Wide Track. Skandic Wide Track LC.

M539875

Unavailable

48

Lock Tongue | Skandic Wide Track. Skandic Wide Track LC.

M549605

Unavailable

49

Lock Plate

M549732

Unavailable

50

Lock Pin | Skandic Wide Track. Skandic Wide Track LC.

M41006

Unavailable

51

Elastic Stop Nut M4

232541414

$0.58

52

Screw

M40146

Unavailable

53

Face Bar

M529485

Unavailable

54

Support

M5340470

Unavailable

55

Pin

M5440127

Unavailable

56

Bottom Pan Support

M5340303

Unavailable

57

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

58

Flat Washer 6 mm

234062410

$0.77

59

Tape-Gasket

M39016

Unavailable

60

Reinforcement Tube

M5340773

Unavailable

61

ton | Skandic Wide Track LC.

M5440747

Unavailable

62

Welded Seat Base | Skandic Wide Track LC.

M539764

Unavailable

63

Housing | Skandic Wide Track. Skandic Wide Track LC.

M539595

Unavailable

64

Cushion | Skandic Wide Track. Skandic Wide Track LC.

M539873

Unavailable

65

Spring

M539455

Unavailable

66

Plate End | Skandic Wide Track. Skandic Wide Track LC.

M549324

Unavailable

67

Tool Box Kit | Skandic Wide Track LC.

529019700

Unavailable

67

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable

68

Air Duct

M539894

Unavailable

69

Elastic Stop Nut M5

232551414

$0.87

70

Screw

M40156

Unavailable

71

Flat Washer M5

234051410

$0.53

72

Washer

M20001

Unavailable

73

Nut

M33001

Unavailable

74

Rivet

36005

$2.11

75

RIVET - Call your local BRP dealership

M36072

Unavailable

76

Rivet | Skandic Wide Track. Skandic Wide Track LC.

M36079

Unavailable

77

Rivet

36005

$2.11

78

Rivet

36108

$1.90

79

Not Available As Spare Part - Friction Washer

Unavailable

80

Not Available As Spare Part - Friction Washer

Unavailable

81

Not Available As Spare Part - Friction Washer

Unavailable

82

Not Available As Spare Part - Friction Washer

Unavailable

83

Not Available As Spare Part - Friction Washer

Unavailable

84

Not Available As Spare Part - Friction Washer

Unavailable

85

Not Available As Spare Part - Friction Washer

Unavailable

86

Not Available As Spare Part - Friction Washer

Unavailable

87

Not Available As Spare Part - Friction Washer

Unavailable

88

Bottom Pan (Black)

M539387

Unavailable
