Description

Price

1

Fuel Tank

M519393

Unavailable

2

Fuel Tank Cap

572161200

$38.99

3

Gasket

M544297

Unavailable

4

Grommet

280000674

$4.69

5

Male Connector This part replaces M533535.

533535

$19.49

6

Weight

M542743

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Spring Clamp

M27091

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Fuel Filter This part replaces 414363600.

605352516

$18.49

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Spring Clamp

M27028

Unavailable

14

FUEL PUMP DF44-226A - Call your local BRP dealership

403800800

$84.99

14A

Screw

404118500

Unavailable

14B

Packing (Cap)

404901600

Unavailable

14C

Diaphragm

404901700

Unavailable

14D

Membrane

404901800

Unavailable

15

Male Connector | Skandic Wide Track LC.

M533606

Unavailable

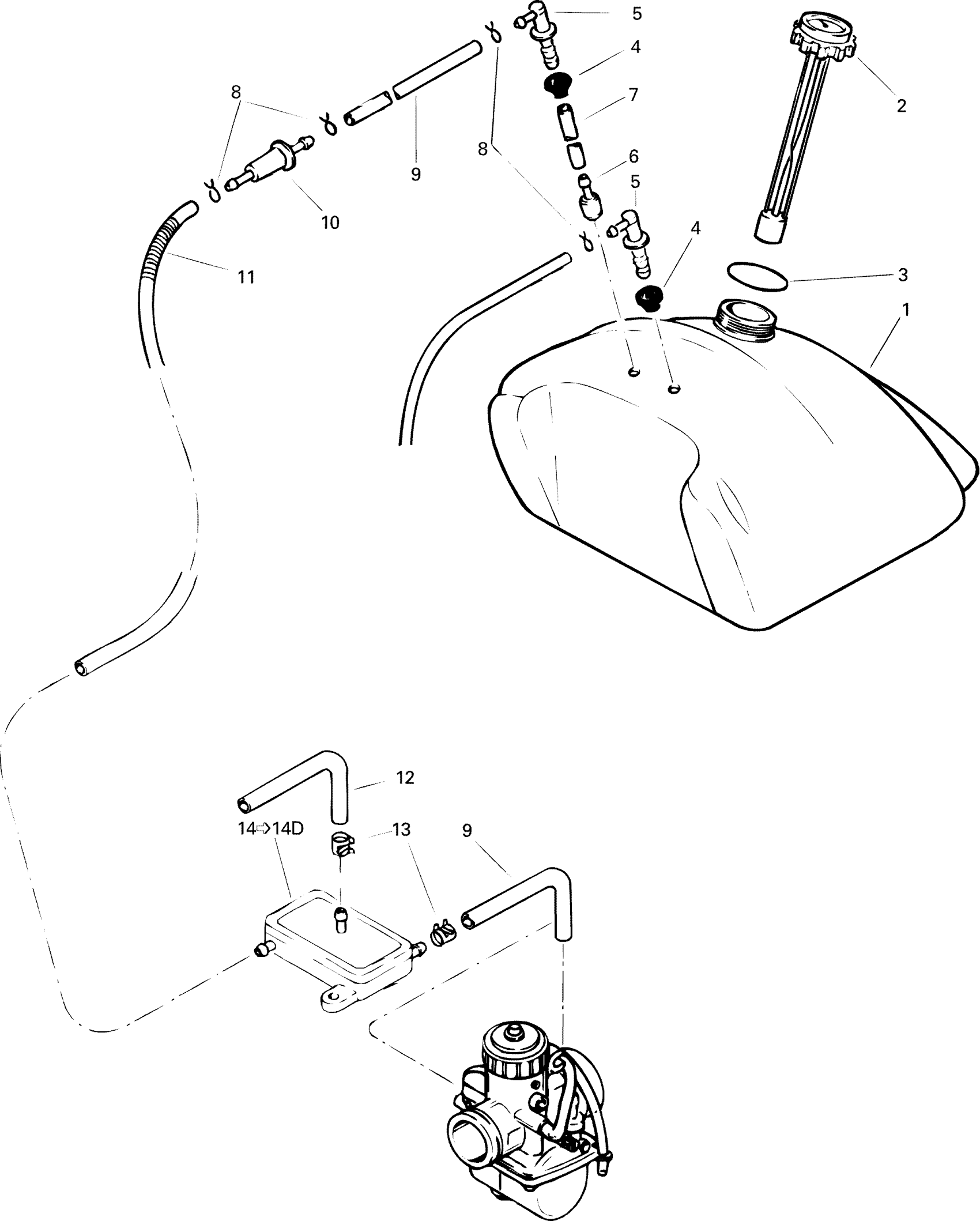

Ski-Doo Skandic Wide Track, 1996 02- Fuel System Diagram

Fuel Tank

Fuel Tank Cap

Gasket

Grommet

Male Connector This part replaces M533535.

Weight

Not Available As Spare Part - Friction Washer

Spring Clamp

Not Available As Spare Part - Friction Washer

Fuel Filter This part replaces 414363600.

Not Available As Spare Part - Friction Washer

Spring Clamp

FUEL PUMP DF44-226A - Call your local BRP dealership

Screw

Packing (Cap)

Diaphragm

Membrane

Male Connector | Skandic Wide Track LC.
