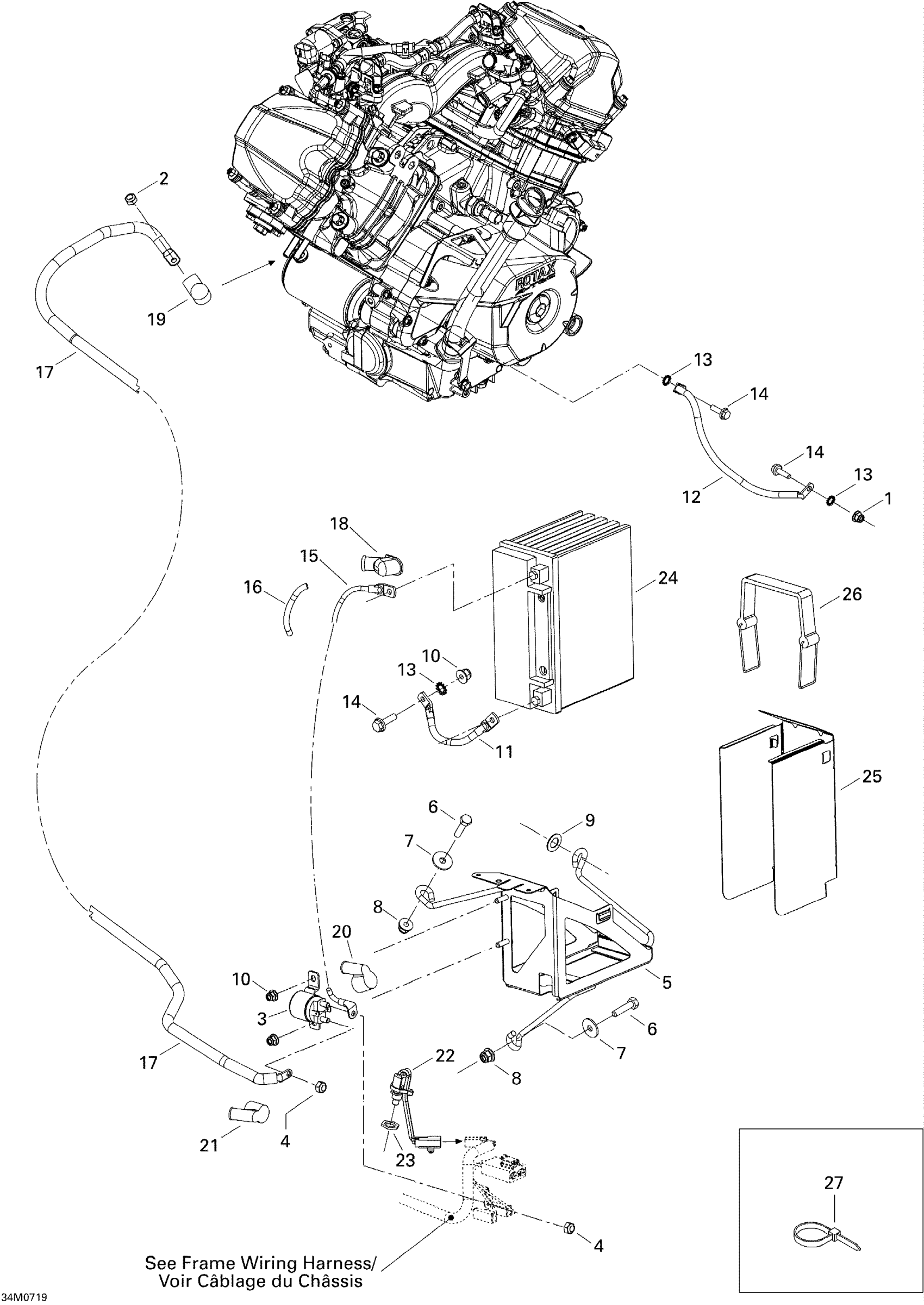

Ski-Doo Skandic Tundra V-800, 2007 Battery And Starter Diagram

#

Description
Price

1

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

2

Elastic Stop Nut M6

232561414

$1.78

3

Starter Relay

515176011

$59.67

4

Elastic Stop Nut M6

232561414

$1.78

5

BATTERY SUPPORT - Call your local BRP dealership

515176401

Unavailable

6

Hex. Screw M6 X 25

207162544

$1.01

7

Flat Washer

224061201

$1.27

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

9

Washer

503175800

$3.16

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

11

Ground Wire

515175749

$18.63

12

Ground Wire

515176407

Unavailable

13

External Serrated Lock Washer 6 mm

234461608

$1.06

14

Hex. Flange Screw M6 X 20

207662044

$1.91

15

Battery Wire

515175904

$17.88

16

Was 409901700 Tubing (9 mm)

219704399

$77.58

17

Battery Wire

515176392

Unavailable

18

Protector Cap

710000495

$9.84

19

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

20

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

21

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

22

Switch Ass'y

515176472

$69.37

23

BRASS NUT - Call your local BRP dealership

250100012

Unavailable

24

Battery, 12 Volts, 21 Amperes

410922962

$184.30

25

DEFLECTOR - Call your local BRP dealership

515175616

Unavailable

26

Battery Strap This part replaces 515175955.

605356180

$25.34

27

Tie-Rap 180 mm

414115200

$0.10

27

Tie Wrap 368 mm

293750008

$0.97

27

Tie Wrap 142 mm

293750002

$1.01

27

Tie-Rap 173 mm

293750009

$0.97
