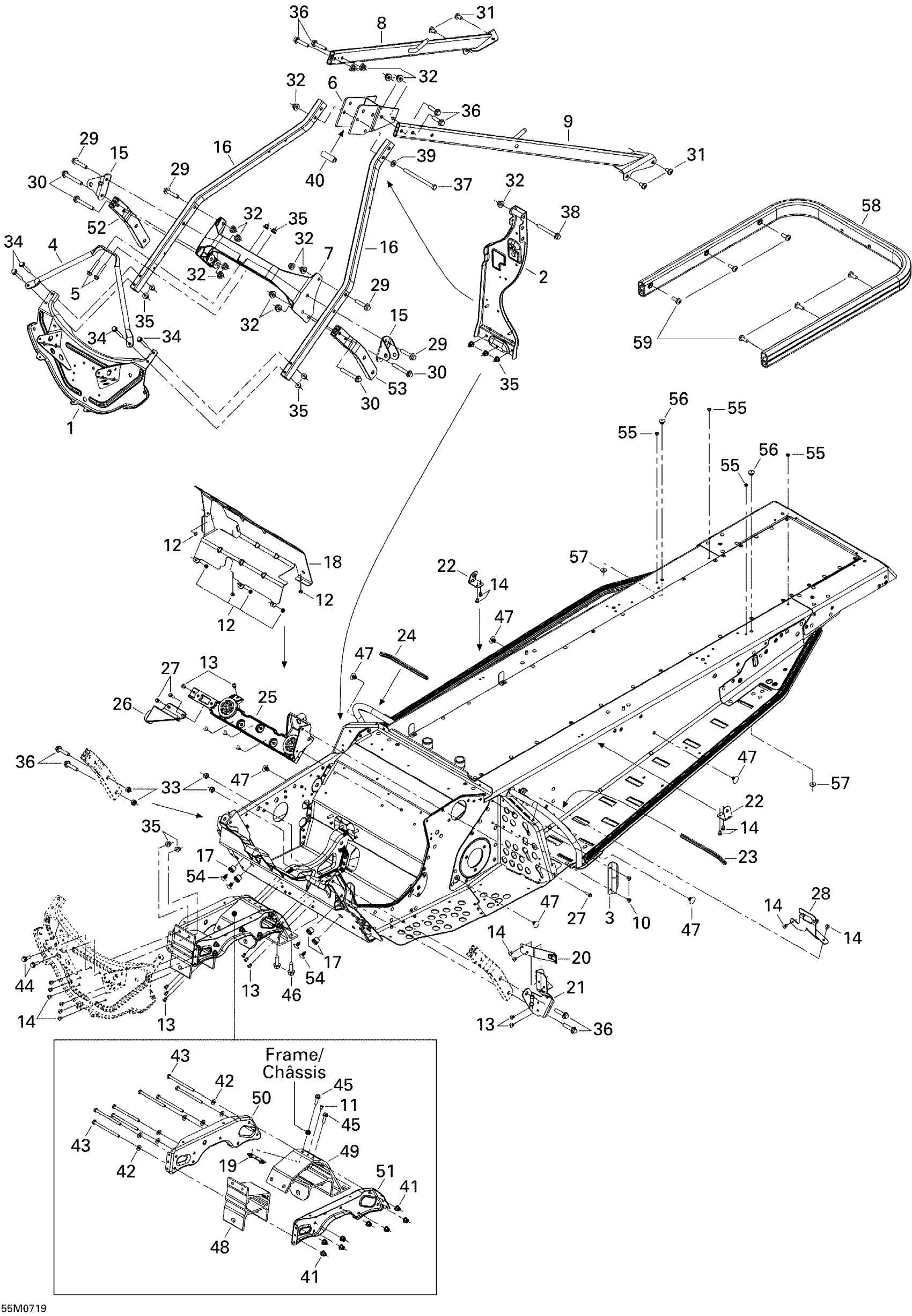

Ski-Doo Skandic Tundra V-800, 2007 09- Frame and Components Diagram

#

Description
Price

1

FRONT PLATE - Call your local BRP dealership

518324216

Unavailable

2

UPPER COLUMN SUPPORT - Call your local BRP dealership

518325212

Unavailable

3

CABLE PROTECTOR - Call your local BRP dealership

518317504

Unavailable

4

BRACE - Call your local BRP dealership

518325036

Unavailable

5

Hex. Flange Screw M6 X 40

207664044

$2.22

6

BRACKET BLOCK - Call your local BRP dealership

518324196

Unavailable

7

UPPER CROSS MEMBER - Call your local BRP dealership

518324808

Unavailable

8

RH MEMBER - Call your local BRP dealership

518324480

Unavailable

9

LH Member

518325193

Unavailable

10

Pop Rivet 3/16"

390402200

$0.35

11

Pop Rivet 3/16"

390402300

$0.75

12

Pop Rivet 3/16"

390402400

$0.35

13

Avex Rivet

390909100

$0.30

14

Avex Rivet

390909200

$0.30

15

SHOCK BRACKET - Call your local BRP dealership

518324202

Unavailable

16

UPPER TUBE - Call your local BRP dealership

518325074

Unavailable

17

Insert

293450166

$4.29

18

Heat Shield

514054097

Unavailable

19

HOLDER PLATE - Call your local BRP dealership

518324204

Unavailable

20

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518325235

Unavailable

21

GUARD BELT SUPPORT - Call your local BRP dealership

518325075

Unavailable

22

TRUNK BRACKET - Call your local BRP dealership

518324688

Unavailable

23

Was 271000110 Protection Trim

219704353

$15.99

24

Was 271000110 Protection Trim

219704353

$15.99

25

LH REAR ENGINE SUPPORT - Call your local BRP dealership

518324902

Unavailable

26

RH Rear Engine Support

518324903

Unavailable

27

Hex. Flange Screw, Scotch Grip

207551634

$2.00

28

GUARD BELT BRACKET - Call your local BRP dealership

518325077

Unavailable

29

Hex. Flange Screw M8 X 40

207684044

$1.48

30

Hex. Flange Screw M8 x 60

207686044

$3.07

31

Pan Head Torx Screw M8 X 12

250000887

$1.90

32

Hex. Flange Elastic Nut M8

233281414

$1.47

33

Hex. Elastic Stop Nut M8

232581414

$0.56

34

Hex. Flange Screw M6 X 45

207664544

$1.46

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

36

Hex. Flange Screw M8 X 35

207683544

$1.69

37

HEX. SCREW M8 X 110 - Call your local BRP dealership

230081044

Unavailable

38

Hex. Flange Screw M8 X 70

207687044

$7.41

39

Washer

503189157

$3.28

40

Housing Bushing

506150500

$7.99

41

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

42

Flat Washer

250200039

$0.74

43

Hex. Screw M6 X 90

207069044

$4.87

44

Hex. Flange Screw M6 X 20

207662044

$2.00

45

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

46

Cone Screw, M8 X 30

250000257

$1.89

47

Panel Fastener

518321954

$7.69

48

FRONT ATTACHMENT, FRONT SUSPENSION - Call your local BRP dealership

518324019

Unavailable

49

REAR ATTACHMENT, FRONT SUSPENSION - Call your local BRP dealership

518324020

Unavailable

50

RH LATERAL REINFORCEMENT - Call your local BRP dealership

518324014

Unavailable

51

LH LATERAL REINFORCEMENT - Call your local BRP dealership

518324017

Unavailable

52

RH TUBE - Call your local BRP dealership

518324786

Unavailable

53

LH TUBE - Call your local BRP dealership

518324787

Unavailable

54

Black, Dart

414644300

$0.98

55

Pop Rivet 3/16"

390402400

$0.35

56

Pop Rivet 3/16”

390910000

$0.57

57

Washer

517124300

$0.19

58

Rear Bumper

518325215

Unavailable

59

Hex. Screw M8 X 20

236282084

$1.48
