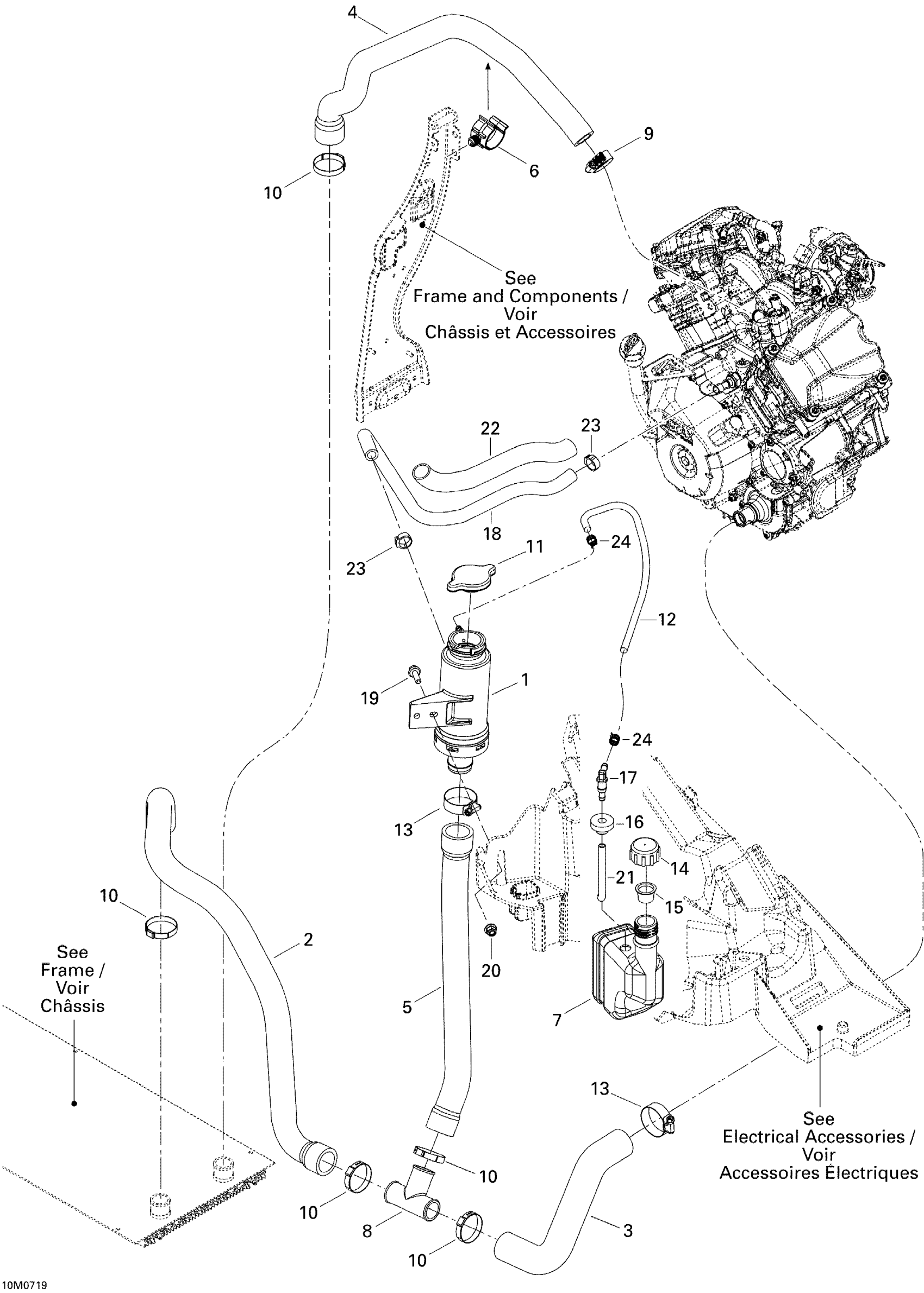

Ski-Doo Skandic Tundra V-800, 2007 01- Cooling System Diagram

#

Description
Price

1

FILLER NECK ASS'Y - Call your local BRP dealership

509000176

Unavailable

2

T-FITTING HOSE - Call your local BRP dealership

509000364

Unavailable

3

PUMP INLET HOSE - Call your local BRP dealership

509000365

Unavailable

4

REAR RADIATOR HOSE - Call your local BRP dealership

509000366

Unavailable

5

COOLANT TANK HOSE - Call your local BRP dealership

509000367

Unavailable

6

Retainer

275500526

$4.55

7

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

8

T-Fitting

509000219

$15.89

9

Tridon Gear Clamp

293650019

$5.82

10

Oetiker Gear Clamp 36.1MM

509000045

$8.29

11

Pressure Cap

509000187

$29.49

12

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

13

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

14

TANK CAP - Call your local BRP dealership

709200009

Unavailable

15

PROTECTION CAP - Call your local BRP dealership

709200205

Unavailable

16

Grommet

709200285

$9.69

17

Elbow Male Connector

414580600

$4.23

18

Was 509000407 Hose 8 mm

219704420

$50.99

19

Hex. Flange Screw M6 X 20

207662044

$2.00

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

22

Tubing 16 Mm 1000Mm Long

219704408

$7.49

23

Oetiker Clamp

293650140

$2.69

24

Spring Clamp

414554800

$0.88
