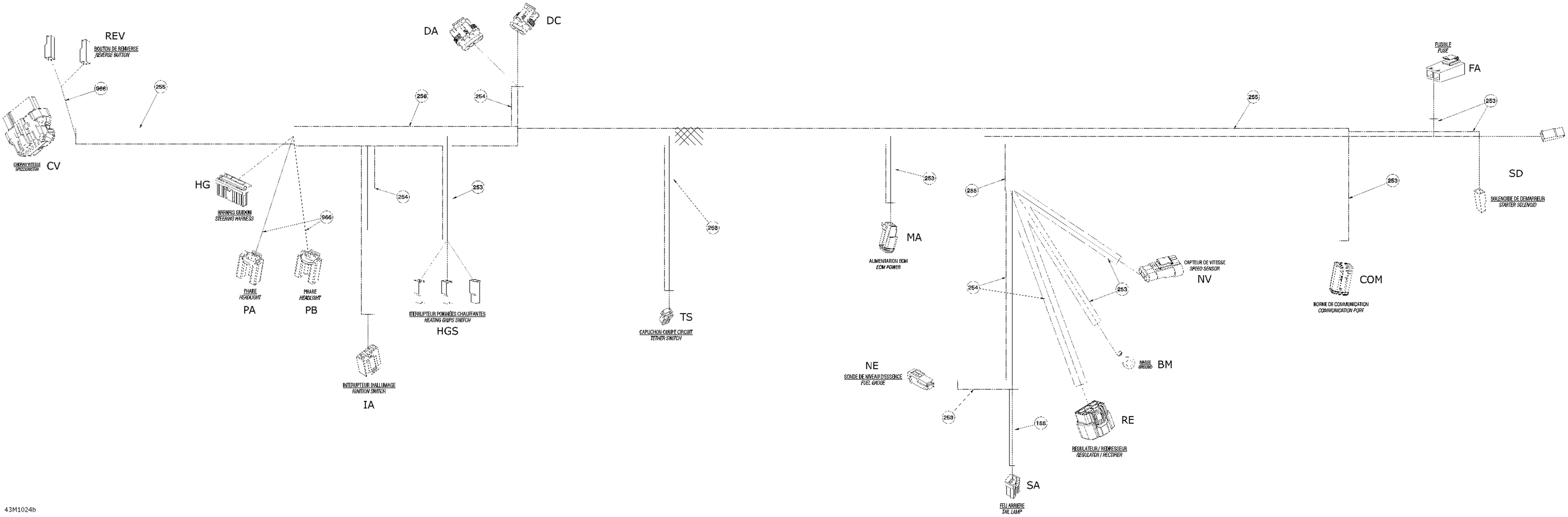

Ski-Doo Skandic Tundra, STD, SPORT, LT, 2010 Electrical Harness STD Diagram

#

Description
Price

1

FRAME HARNESS - Call your local BRP dealership | STD

515176903

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

188

Tubing 12 mm

409902000

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

254

Was 409901700 Tubing (9 mm)

219704399

$84.99

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

256

Tubing 16 Mm 1000Mm Long

219704408

$7.49

966

Not Available As Spare Part - Friction Washer

Unavailable

BM

Open Barrel

278000992

$2.21

COM

Female Terminal

278000632

$2.09

COM

Sealing Cap

293000052

$3.19

COM

Male Housing, 6 Circuits

515175673

$15.49

COM

Male Wedge, 6 Circuits

515175678

$5.39

CV

Plug

515175812

$2.19

CV

Female Housing, 24 Circuits

515175801

$9.59

CV

Retainer Block

515175802

$11.49

CV

Wire Seal

515175803

$2.99

CV

Female Terminal

515175806

$0.99

CV

Female Housing

710000399

$16.49

CV

Female Terminal

710001131

$8.89

DA

Female Terminal

710001340

$5.89

DA

Wire Seal

515176621

$7.49

DA

Female Housing, 4 Circuits

409209700

$16.18

DC

Female Terminal

278001014

$3.28

DC

Female Housing, 3 Circuits

409209600

$35.99

DC

Wire Seal

278001013

$3.28

FA

Female Terminal

409004200

$4.55

FA

Fuse Holder

409004000

$8.09

FA

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

FA

Clip

710000992

$4.29

HG

Female Terminal

515175231

$4.39

HG

Female Terminal

515175282

$7.86

HG

FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175719

Unavailable

HGS

Female Terminal

409010100

$5.61

HGS

Female Terminal Housing, 1 Circuit

409010400

$7.62

IA

Female Terminal Housing, 4 Circuits

710000272

$10.99

IA

Lock, 4 Circuits

710000273

$9.59

IA

Female Terminal

710000274

$9.59

MA

Female Terminal

278000632

$2.09

MA

Female Terminal Housing, 2 Circuits

515175670

$8.39

MA

Female Lock, 2 Circuits

515175675

$4.55

NE

Male Terminal

515175232

$1.58

NE

Male Terminal Housing, 2 Circuits

515175654

$9.12

NV

Housing

710000568

$11.12

NV

Male Terminal

515176164

$7.16

NV

Clip

710000992

$4.29

NV

Wire Seal

515176621

$7.49

PA

Female Housing

515176908

$13.99

PA

Terminal

515176909

$2.21

PB

Female Housing

515176908

$13.99

PB

Terminal

515176909

$2.21

RE

Connector

515176530

$30.49

RE

Terminal

515176531

$10.74

RE

Seal

515176594

$7.86

REV

Female Terminal

409010100

$5.61

REV

Female Terminal Housing, 1 Circuit

409010400

$7.62

SA

Female Terminal

515175231

$4.39

SA

Female Housing, 3 Circuits

515175495

$16.18

SD

Female Terminal

409010100

$5.61

SD

Female Terminal Housing, 1 Circuit

409010400

$7.62

TS

Female Terminal

515175231

$4.39

TS

Female Terminal Housing, 2 Circuits

515176296

$5.89
