Description

Price

1

Indicator | Includes 10 to 10c

515177279

$569.99

1a

Lens | XTP

415129349

$24.49

1b

Gauge Ring

415129348

$13.99

2

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

3

Ignition Swirch

515177063

$50.99

4a

Brake Switch

515175653

$19.49

4b

Male Terminal

515175232

$1.58

4c

Male Terminal Housing, 2 Circuits

515175654

$9.12

5

Switch Nut

515145900

$12.12

6

Plunger Cap

570151100

$9.85

7

WASHER - Call your local BRP dealership

503183500

Unavailable

8

Cap Ass'y

515178283

$38.99

9

ROCKER SWITCH ASS'Y - Call your local BRP dealership | Includes 950 to 950,002

515176844

Unavailable

10

Push Button

415130372

$122.49

11

Not Available As Spare Parts

XXX

Unavailable

12

Not Available As Spare Parts

XXX

Unavailable

13

Not Available As Spare Parts

XXX

Unavailable

14

Voltage Regulator

515176699

$153.49

15

Hex. Flange Screw M6 X 20

210262040

$2.11

16

LH Housing

515177021

$229.99

17

Start/RER Button

515176088

$20.99

18

Switch Housing Plate

515175926

$20.99

19

Torx Screw #8-18

250000263

$1.04

20

DIMMER SWITCH - Call your local BRP dealership | STD

515176918

Unavailable

21

FRAME HARNESS - Call your local BRP dealership

515176882

Unavailable

21

FRAME HARNESS - Call your local BRP dealership | STD

515176903

Unavailable

22

FILTER TACHOMETER HARNESS - Call your local BRP dealership

515176974

Unavailable

23

Lock

515176681

$20.99

24

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

25

Steering Wiring Harness Ass'y | Includes 3200 to 3200n

515176995

$114.99

25

Steering Wiring Harness | STD

515176911

Unavailable

26

Male Terminal Housing, 8 Circuits

515175817

$8.79

27

Male Terminal Housing, 6 Circuits

515175662

$8.79

28

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

28

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

29

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Cap

515176498

$12.99

32

Rubber Cap Protector

219800280

$19.49

33

Torx Screw M6 X 20

250000722

$1.68

34

Panel Nut M6 X 1.0

250100198

$2.11

A

Tie-Rap 180 mm

414115200

$0.11

B

Tie Wrap 142 mm

293750002

$1.25

C

Tie Wrap 368 mm

293750008

$1.04

D

Tie Wrap 94 mm | 4X4

293750001

$1.03

E

Tie-Rap 173 mm

293750009

$1.04

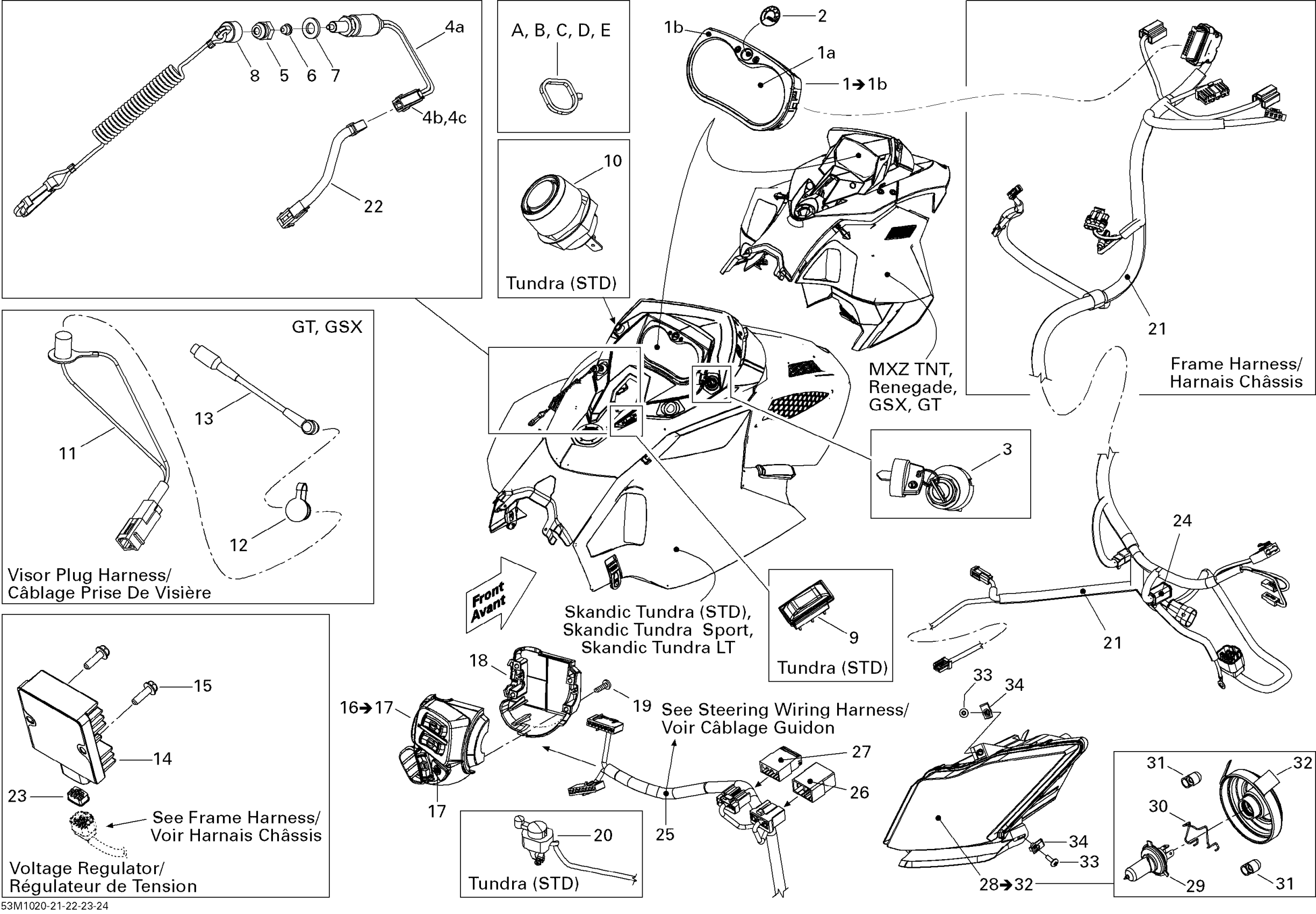

Ski-Doo Skandic Tundra, STD, SPORT, LT, 2010 10- Electrical Accessories Diagram

Indicator | Includes 10 to 10c

Lens | XTP

Gauge Ring

BRP Logo 20MM x 2MM | XTP

Ignition Swirch

Brake Switch

Male Terminal

Male Terminal Housing, 2 Circuits

Switch Nut

Plunger Cap

WASHER - Call your local BRP dealership

Cap Ass'y

ROCKER SWITCH ASS'Y - Call your local BRP dealership | Includes 950 to 950,002

Push Button

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Voltage Regulator

Hex. Flange Screw M6 X 20

LH Housing

Start/RER Button

Switch Housing Plate

Torx Screw #8-18

DIMMER SWITCH - Call your local BRP dealership | STD

FRAME HARNESS - Call your local BRP dealership

FRAME HARNESS - Call your local BRP dealership | STD

FILTER TACHOMETER HARNESS - Call your local BRP dealership

Lock

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

Steering Wiring Harness Ass'y | Includes 3200 to 3200n

Steering Wiring Harness | STD

Male Terminal Housing, 8 Circuits

Male Terminal Housing, 6 Circuits

RH Headlamp Ass'y | Includes 2400 to 2400c

LH Headlamp Ass'y | Includes 2600 to 2600c

Halogen Bulb, 60/55 W, 12 V ( H4 )

Not Available As Spare Part - Friction Washer

Cap

Rubber Cap Protector

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Tie-Rap 180 mm

Tie Wrap 142 mm

Tie Wrap 368 mm

Tie Wrap 94 mm | 4X4

Tie-Rap 173 mm
