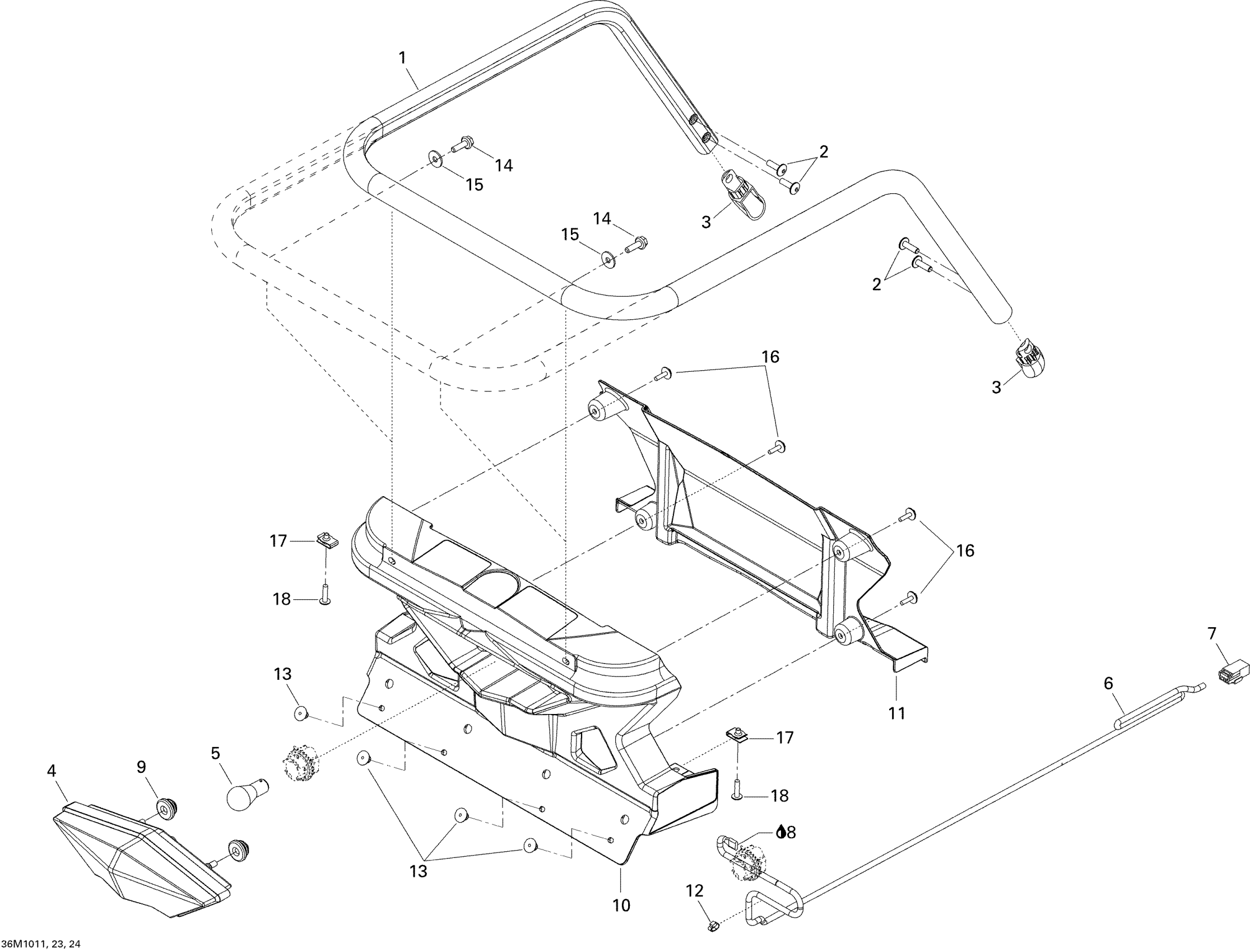

Ski-Doo Skandic Tundra, STD, SPORT, LT, 2010 09- Luggage Rack Diagram

Luggage Rack

511000705

$121.99

Luggage Rack | LT

511000706

$121.99

Torx Screw M6 X 20, Scotch Grip

250000786

$3.17

Black Cap

520000899

$16.49

Rear Light Ass'y

520000679

$105.99

Bulb

520000758

$9.10

WIRING HARNESS ASS'Y - Call your local BRP dealership

520000680

Unavailable

Male Housing, 3 Circuits

515175494

$16.18

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

Stopper Rubber

705014429

$5.95

Rear Light Support

511000625

$45.99

Rear Cover Support | Not Shown

511000701

$37.99

Tie Wrap 142 mm

293750002

$1.25

Pop Rivet 3/16"

293150103

$0.55

Hex. Flange Screw M6 X 20

207662044

$2.00

Flat Washer

250200082

$0.42

Screw M4 X 16

250000725

$3.49

Panel Nut M5 X 0.8

250000958

$4.23

Torx Screw M5 X 20

250000724

$1.69
