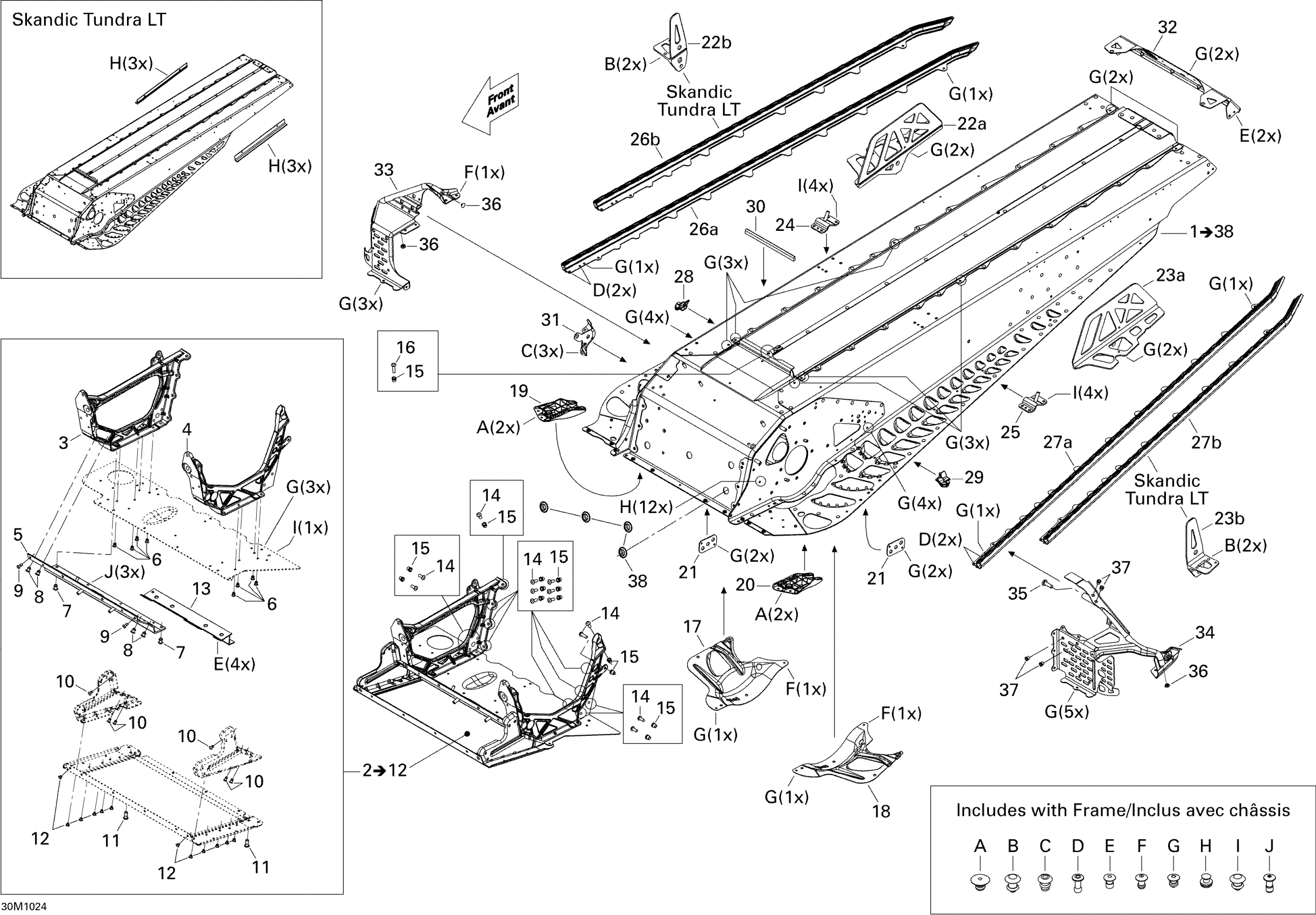

Ski-Doo Skandic Tundra, STD, SPORT, LT, 2010 Frame Diagram

#

Description
Price

1

FRAME TUNDRA 137 - Call your local BRP dealership | Sport

415130258

Unavailable

1

FRAME TUNDRA LT - Call your local BRP dealership | LT

415130259

Unavailable

2

Module E Tundra | Includes 10av to 10bm

518326926

$463.40

3

RH Member

518326795

$252.21

4

LH Member

518325558

$223.85

5

Front Member | Includes 10as to 10at

518325818

$52.96

6

Stavex Rivet

293150144

$0.75

7

Hemlock Rivet 6.5 mm

293150120

$7.01

8

Hemlock Rivet, 6.5 mm

293150119

$3.88

9

MONOBOLT RIVET 4.8 - Call your local BRP dealership

293150179

Unavailable

10

Avex Rivet

390909100

$0.28

11

Monobolt Rivet 6.4

293150182

$2.82

12

Avex Rivet

390909200

$0.28

13

ENGINE SUPPORT - Call your local BRP dealership

518326120

Unavailable

14

Hex. Flange Screw M6 X 20

207662044

$1.91

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

16

Hex. Flange Screw M6 X 20

207662044

$1.91

17

RH Reinforcement

518324874

$24.60

18

LH Reinforcement

518324875

$24.60

19

RH Deflector, Black Polypropylene

518325782

$11.42

20

LH Deflector, Black Polypropylene

518325783

$11.42

21

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

22a

RH Bracket | Sport

518328787

$73.10

22b

RH Slide Bracket

518325955

Unavailable

23a

LH Bracket | Sport

518328788

$71.61

23b

LH Slide Bracket

518325956

$44.75

24

RH Rear Base

518325973

$17.88

25

LH Rear Base | Includes 10v to 10x

518325974

$17.88

26a

RH ROLLER - Call your local BRP dealership

518325377

Unavailable

26b

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

27a

LH Roller

518325378

$76.99

27b

LH Roller | Includes 10bd to 10be

518325160

$76.09

28

RH SEAL - Call your local BRP dealership

518325653

Unavailable

29

LH SEAL - Call your local BRP dealership

518325654

Unavailable

30

NEOPRENE SEAL - Call your local BRP dealership

293200105

Unavailable

31

RH Engine Support

518325559

$17.88

32

Rear Cap

518327105

$20.12

33

RH Stirup | Includes 10aa to 10ab

518328938

$155.94

34

LH STIRUP - Call your local BRP dealership

518327935

Unavailable

35

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

36

Full Moon Dart 5 mm

293730042

$2.06

37

Insert M5 X 0.8

293450268

$1.90

38

Black, Plug

293730052

$6.18

A

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

B

Ornit Rivet 6,5 X 14.5

293150266

$1.88

C

Hemlock Rivet, 6.5 mm

293150096

$3.07

D

Pop Rivet 3/16"

390402300

$0.73

E

Avex Rivet

390909200

$0.28

F

Avex Rivet

390909100

$0.28

G

Stavex Rivet

293150144

$0.75

G

Stavex Rivet

293150144

$0.75

H

Henrob Rivet

293150146

$1.87

H

Henrob Rivet

293150146

$1.87

I

Hemlock Rivet, 6.4 mm

293150174

$6.24

J

MONOBOLT RIVET 4.8 - Call your local BRP dealership

293150179

Unavailable
