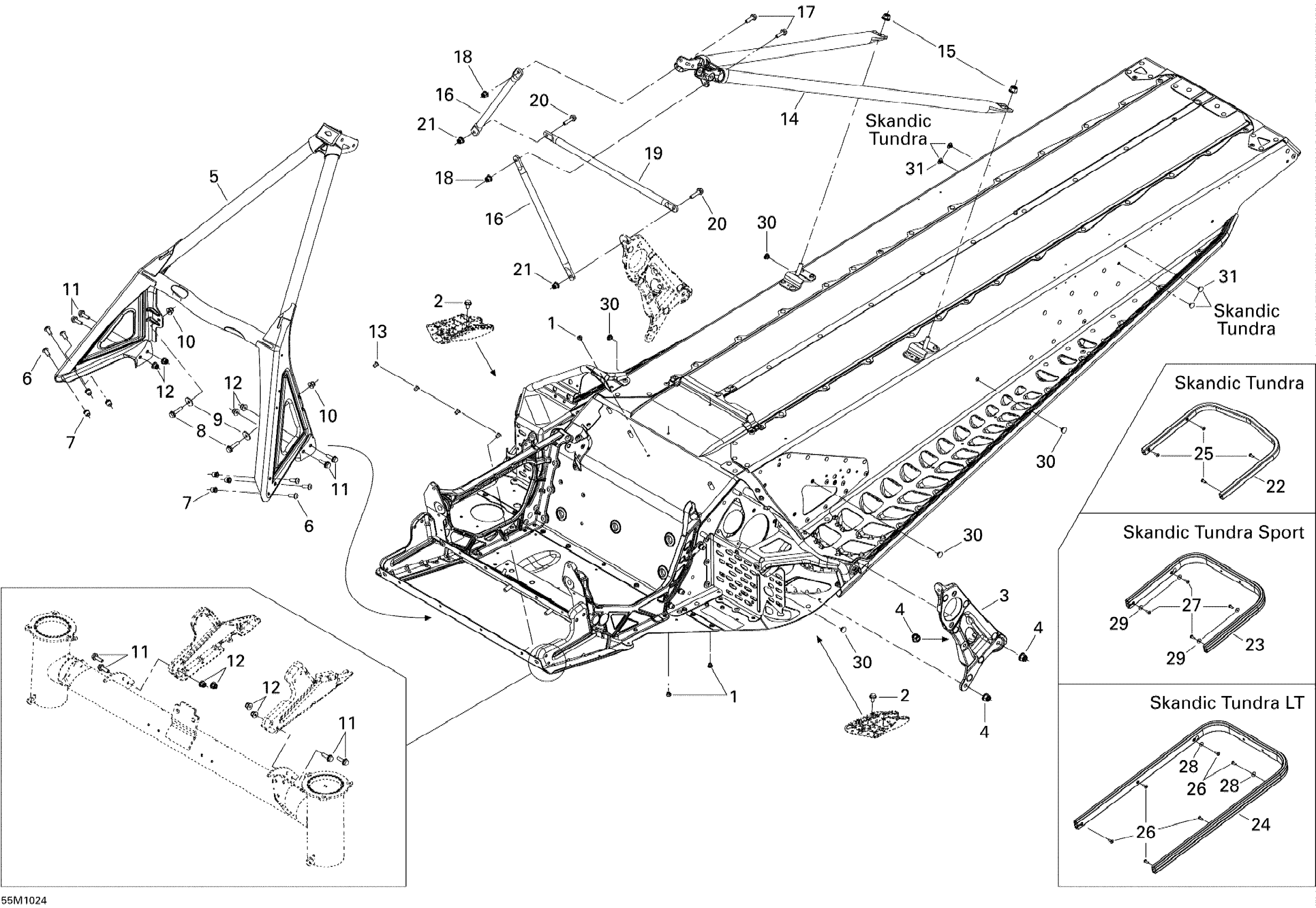

Ski-Doo Skandic Tundra, STD, SPORT, LT, 2010 Frame and Components Diagram

#

Description
Price

1

Pop Rivet 3/16"

390402400

$0.28

2

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

3

Pulley Support

518328346

$114.15

4

Hex. Flange Elastic Nut M8

233281414

$1.31

5

Front Member, S Module

518326557

$326.84

6

Hex. Flange Screw M6 X 20

207662044

$1.91

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

8

Hex. Flange Screw M6 X 25

207662544

$0.61

9

Flat Washer

224061201

$1.27

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

11

Hex. Flange Screw M6 X 20

207662044

$1.91

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

13

Pop Rivet 3/16"

390402200

$0.30

14

Rear Member

518326559

$237.28

15

Hex. Flange Elastic Nut M8

233281414

$1.31

16

Upper Lateral Column Support

518325114

$20.12

17

Hex. Flange Screw M6 X 20

207662044

$1.91

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

19

Center Column Support

518325115

$20.12

20

Hex. Flange Screw M6 X 25

207662544

$0.61

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

22

Clear Rear Bumper

518324980

$94.00

23

Clear Rear Bumper | Sport

518325577

$106.69

24

Clear Rear Bumper

518325579

$106.69

25

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

26

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

27

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

28

Flat Washer

224061201

$1.27

29

Flat Washer

224061201

$1.27

30

Full Moon Dart 8 mm

293730041

$2.06

31

Full Moon Dart 5 mm

293730042

$2.06
