Description

Price

1

Black, Bottom Pan

502007361

$144.99

2

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

3

RH Upper Bottom Pan Foam

502007204

$19.99

4

LH Upper Bottom Pan Foam

502007205

$19.99

5

RH Lower Bottom Pan Foam

502007206

$18.99

6

LH Lower Bottom Pan Foam

502007207

$18.99

7

Botton Pan Grille

502006887

$27.99

8

Black RH Bottom Pan

502006965

$77.99

9

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

10

Pop Rivet 3/16"

390402300

$0.75

11

Washer

517124300

$0.19

12

Torx Screw M6 X 20

250000722

$1.68

13

Insert

293450275

$12.99

14

Panel Nut M6 X 1.0

250100198

$2.11

15

Black LH Bottom Pan

502006966

$65.99

16

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

17

Pop Rivet 3/16"

390402300

$0.75

18

Washer

517124300

$0.19

19

Torx Screw M6 X 20

250000722

$1.68

20

Insert

293450275

$12.99

21

Panel Nut M6 X 1.0

250100198

$2.11

22

LH Bottom Pan Foam

502007208

$18.99

23

Anodized - Front Bumper

502006963

$111.49

24

Hex. Flange Screw M6 X 16

207661644

$0.74

25

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

26

Black Bottom Pan Door

502006970

$19.99

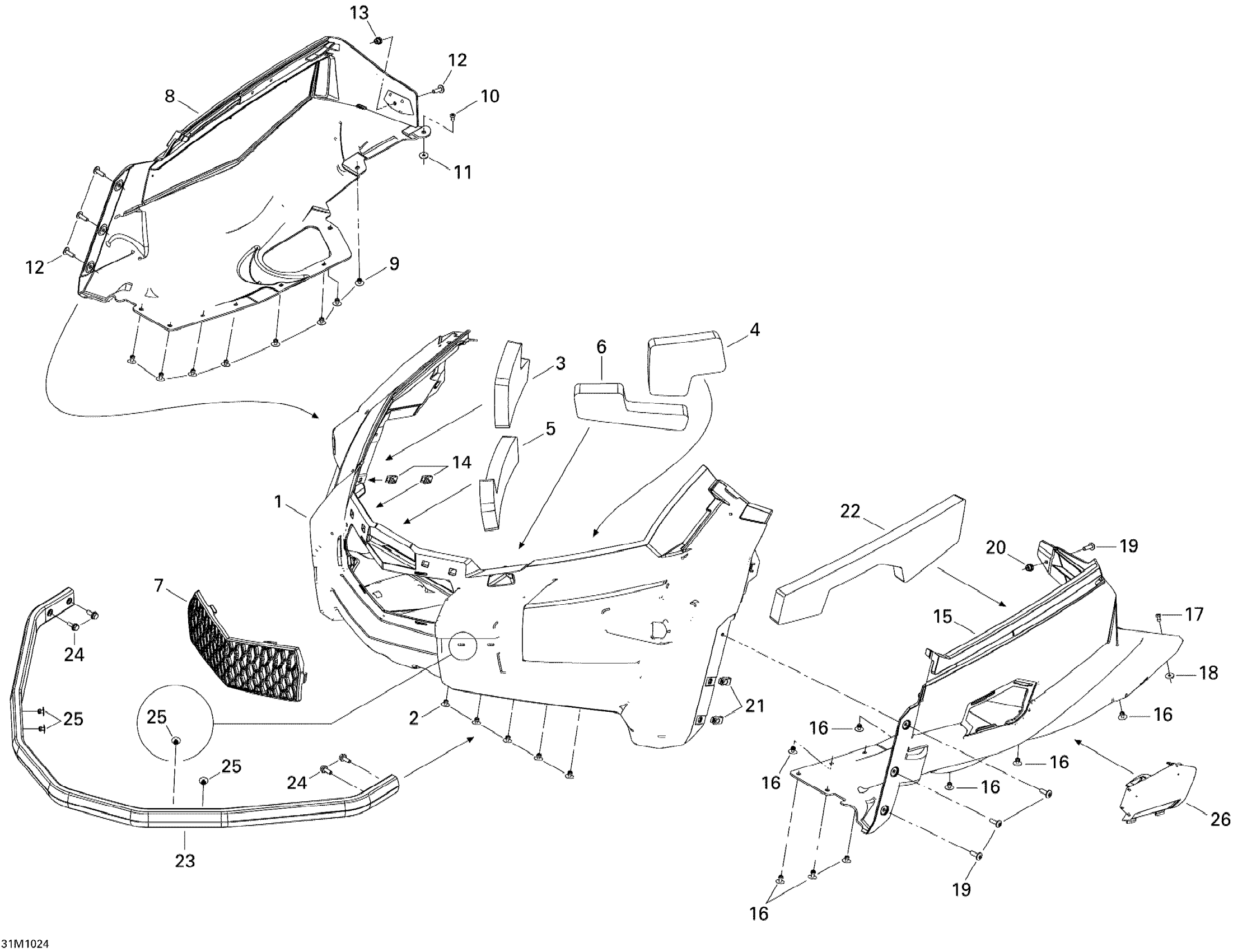

Ski-Doo Skandic Tundra, STD, SPORT, LT, 2010 09- Bottom Pan Diagram

Black, Bottom Pan

Pop Rivet 3/16" | DS 650 X

RH Upper Bottom Pan Foam

LH Upper Bottom Pan Foam

RH Lower Bottom Pan Foam

LH Lower Bottom Pan Foam

Botton Pan Grille

Black RH Bottom Pan

Pop Rivet 3/16" | DS 650 X

Pop Rivet 3/16"

Washer

Torx Screw M6 X 20

Insert

Panel Nut M6 X 1.0

Black LH Bottom Pan

Pop Rivet 3/16" | DS 650 X

Pop Rivet 3/16"

Washer

Torx Screw M6 X 20

Insert

Panel Nut M6 X 1.0

LH Bottom Pan Foam

Anodized - Front Bumper

Hex. Flange Screw M6 X 16

Pop Rivet 3/16" | DS 650 X

Black Bottom Pan Door
