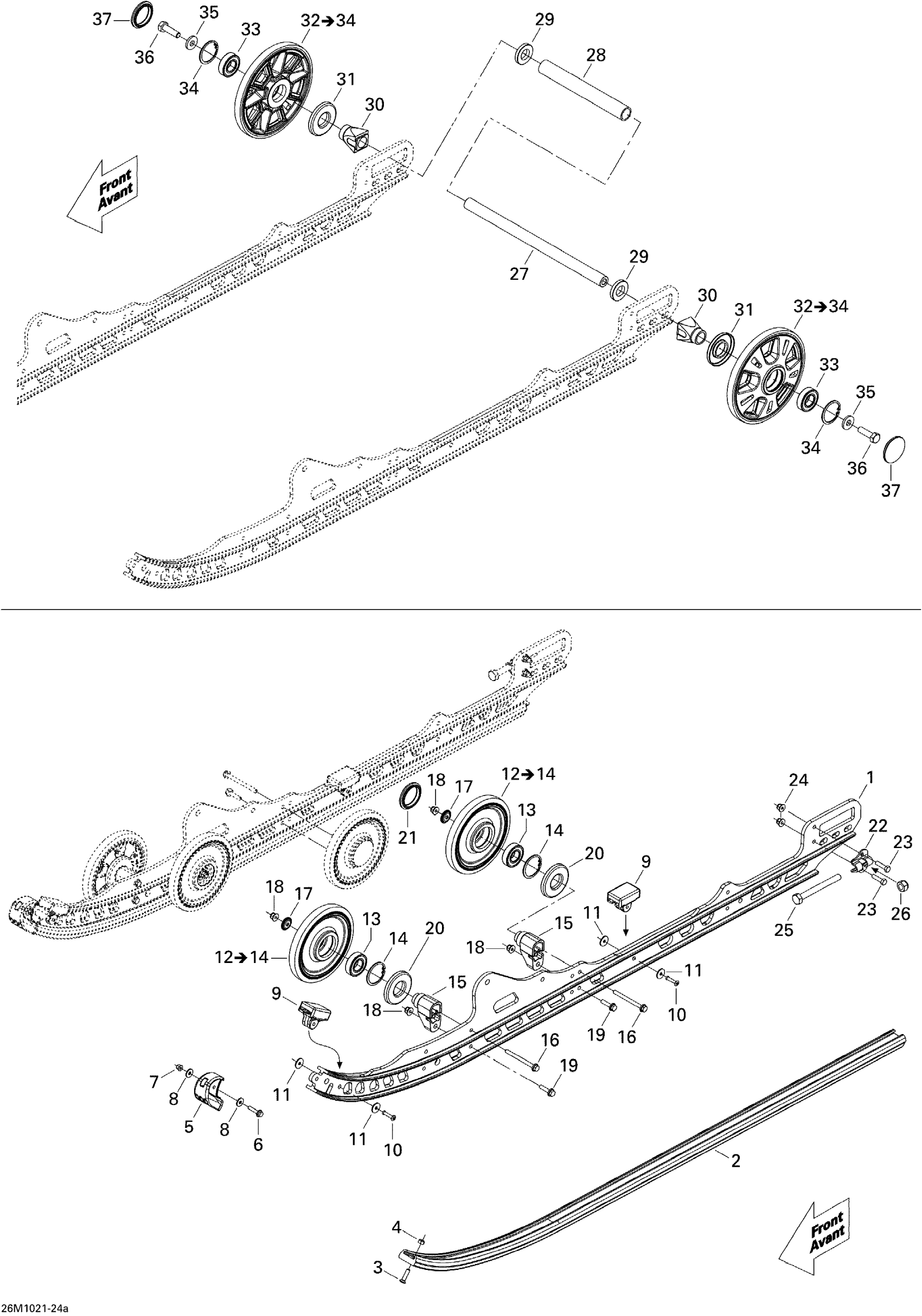

Ski-Doo Skandic Tundra, STD, SPORT, LT, 2010 Rear Suspension STD & SPORT Diagram

#

Description
Price

1

RAIL_SUSPENSION 137 - Call your local BRP dealership

503192738

Unavailable

2

Slider 137

503191619

$33.05

3

Phillips Screw M6 X 25

208562531

$1.74

4

Elastic Stop Nut M6

232561414

$1.55

5

Runner Protector

503192299

$23.82

6

Hex. Flange Screw M5 X 25

207652544

$0.42

7

Hex. Flange Elastic Nut M5

233251414

$1.66

8

Washer | DS 650 X

391301600

$0.48

9

Rubber Stopper

503190576

$10.23

10

Pop Rivet 3/16"

293150142

$2.11

11

Washer

503191273

$1.06

12

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$46.12

13

Ball Bearing | Package-STD

503190396

$7.12

14

Retaining Ring

415129371

$8.92

15

Casted Support

503193894

$12.75

16

Hex. Flange Screw M6 X 70

207667056

$3.61

17

Wheel Cup M6

503191820

$4.66

18

Elastic Flange Nut M6 X 1.0

233261416

$1.74

19

Hex. Flange Screw M6 X 25

207662544

$0.53

20

Labyrinth Seal

503190434

$5.85

21

Wheel Cap

570063600

$3.28

22

Tensioner

503192583

$5.85

23

Hex. Screw M6 X 25

207162544

$1.05

24

Elastic Flange Nut M6 X 1.0

233261416

$1.74

25

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

26

Elastic Locking Nut M10 X 1.5

233601416

$1.68

27

Rear Axle

503190429

$59.97

28

Spacer

503191108

$15.35

29

Washer

503190432

$12.52

30

Rear Wheel Spacer

503190428

$6.06

31

Labyrinth Seal

503190434

$5.85

32

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

$49.97

32

Black, Wheel Ass'y, 180 mm | Includes 600 to 600b

503191742

$49.97

33

Ball Bearing | Package-STD

503190396

$7.12

34

Retaining Ring

415129371

$8.92

35

Washer

503190439

$5.82

36

Hex. Screw With Nylon

250000019

$1.42

37

Wheel Cap

570063600

$3.28
