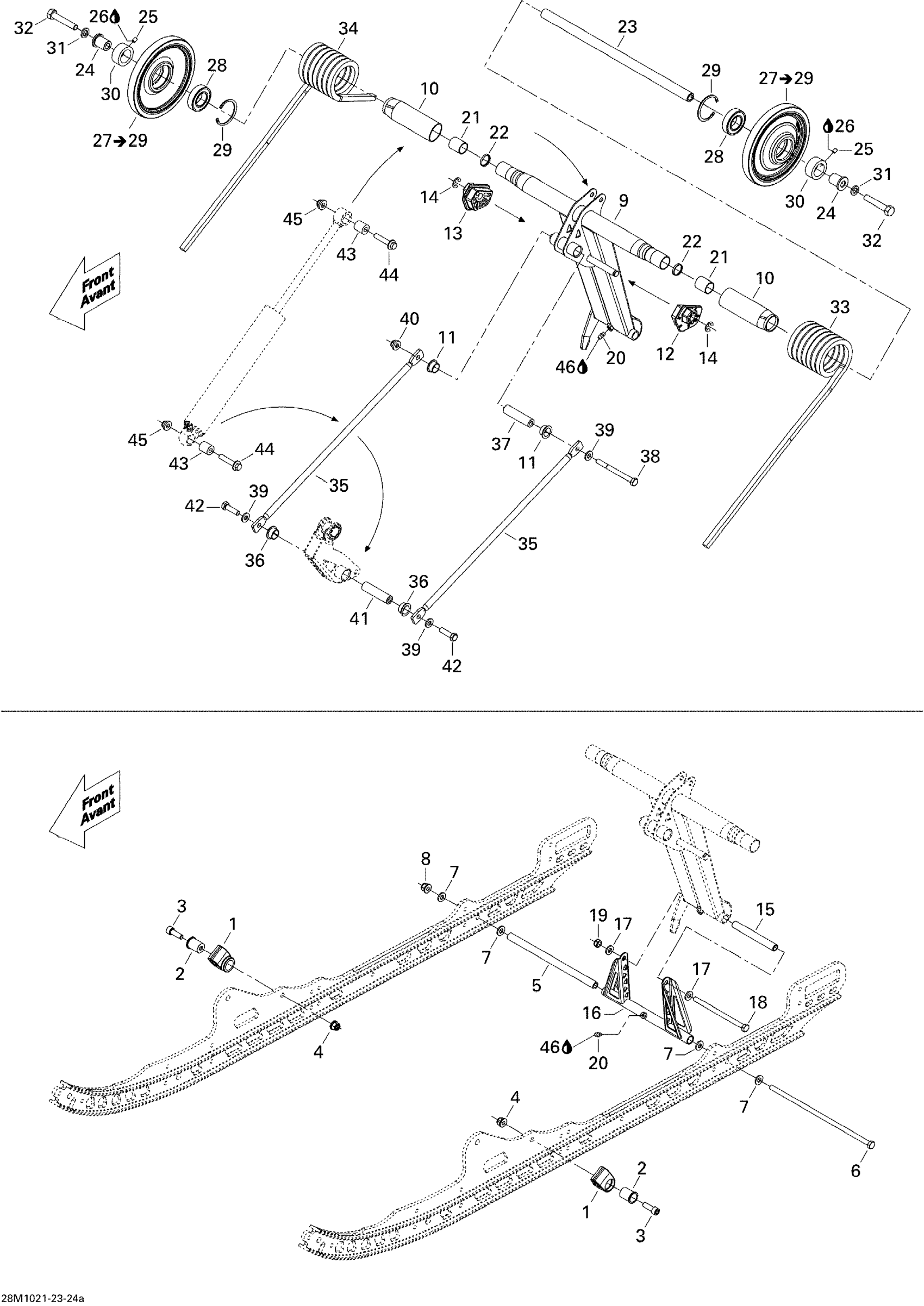

Ski-Doo Skandic Tundra, STD, SPORT, LT, 2010 08- Rear Arm STD & SPORT Diagram

#

Description
Price

1

Spring Support Kit

861805547

$10.49

2

Spring Support Kit

861805547

$10.49

3

Socket Head Screw M8 X 25

205082544

$1.15

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

Pivot Arm Axle

503189156

$21.99

6

Bolt M8 X 248mm

503192440

$30.49

7

Washer

503189157

$3.28

8

Hex. Flange Elastic Nut M8

233281414

$1.47

9

Rear Arm Ass'y | Includes 3000 to 3000r

503192252

$98.49

10

Bushing

572080700

$17.39

11

Swivel Bushing

503191555

$7.83

12

LH Cam Adjuster

503191565

$16.49

13

RH Cam Adjuster

503191566

$16.49

14

E-Circlip

293370013

$0.65

15

Upper Axle, Pivot Arm

503144300

$11.65

16

Pivot Arm | Includes 3000j to 3000j3

503191209

$124.99

17

Washer

503189157

$3.28

18

Bolt M8, Short

732601197

$15.36

19

Hex. Elastic Stop Nut M8

232581414

$0.56

20

Grease Fitting

408200700

$3.49

21

Extended Bushing

503191556

$7.83

22

Washer

503191651

$8.32

23

UPPER SHAFT - Call your local BRP dealership

503192222

Unavailable

24

BUSHING - Call your local BRP dealership

503192223

Unavailable

25

Socket Set Screw M6 X 8

206260844

$1.48

26

Loctite 243, 10 ml

293800060

$21.49

27

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$48.49

28

Ball Bearing

503193548

$17.99

29

Retaining Ring

415129371

$12.01

30

Retaining Ring

503168800

$14.99

31

Washer

503189276

$3.28

32

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

33

LH Spring

503192081

$67.99

34

RH Spring

503192080

$67.99

35

Linkage Rod

503192255

$44.49

36

Swivel Bushing

503191555

$7.83

37

Axle Bar (Long)

503190643

$17.39

38

Hex. Screw M8 X 90

207089044

$3.48

39

Washer

503189157

$3.28

40

Hex. Flange Elastic Nut M8

233281414

$1.47

41

BAR AXLE - Call your local BRP dealership

503192139

Unavailable

42

HEX. SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership

207383044

Unavailable

43

Bushing

414936000

$13.99

44

Hex. Flange Screw M8 X 40

207684044

$1.48

45

Hex. Flange Elastic Nut M8

233281414

$1.47

46

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable
