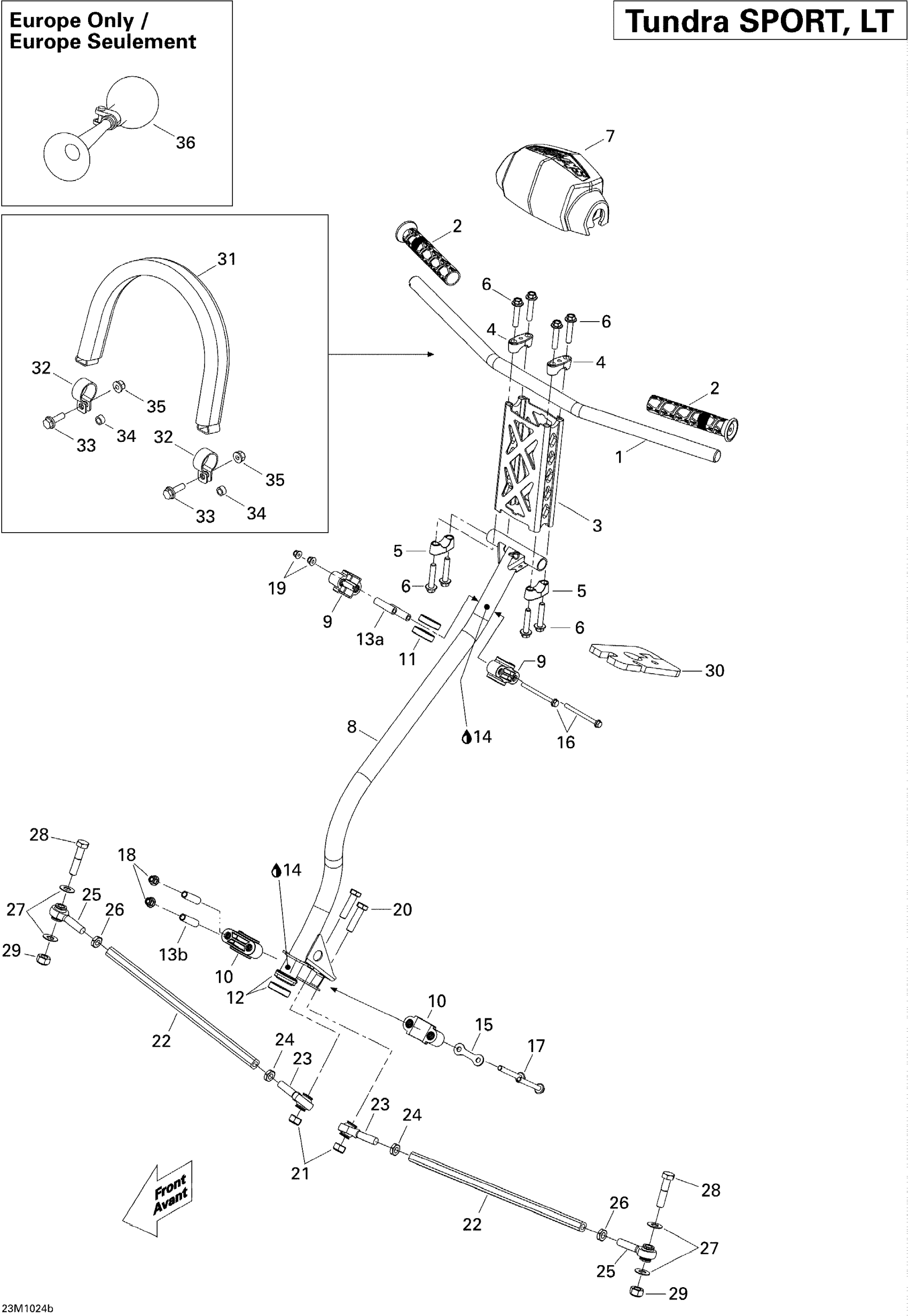

Ski-Doo Skandic Tundra, STD, SPORT, LT, 2010 07- Steering 2, SPORT, LT Diagram

#

Description
Price

1

HANDLE BAR - Call your local BRP dealership

506152203

Unavailable

2

Handle Grip

506152424

$15.29

3

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

$84.99

4

Steering Support | Includes 40 to 40a

506152751

$13.99

5

Steering Support | Includes 40 to 40a

506152751

$13.99

6

Hex. Flange Screw M8 X 40

250000352

$3.38

7

Steering Pad

506152192

$58.99

8

Steering Column

506152963

$309.99

9

Upper Half Housing

506152219

$1.79

10

Lower Half-Housing

506152217

$7.62

11

Upper Vibration Ring

506152292

$0.74

12

Lower Vibration Ring

506152518

$4.79

13a

Housing Bushing

506152297

$12.99

13b

Lower Housing Bushing

506152388

$17.39

14

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

15

Stopper Plate

506152389

$12.99

16

Hex. Flange Screw M6 X 70

207667056

$4.44

17

Hex. Flange Screw M8 x 65

207686534

$2.11

18

Hex. Flange Elastic Nut M8

233281414

$1.47

19

Elastic Flange Nut M6 X 1.0

233261416

$2.11

20

Hex. Screw M10 X 1.5 X 40

207004034

$2.11

21

Elastic Stop Nut M10

232500416

$1.90

22

ROD_LINK - Call your local BRP dealership

506152377

Unavailable

23

LH Thread Ball Joint

506152081

$41.49

24

LH Threaded Hex. Jam Nut M10

250100016

$0.74

25

RH Threaded Ball Joint

506152019

$41.49

26

RH Threaded Hex. Jam Nut M10

732610010

$0.74

27

Washer

506152194

$4.55

28

Hex. Screw M10 X 45

207004544

$1.69

29

Elastic Stop Nut M10

232500416

$1.90

30

Bushing

506152521

$15.79

31

Strap Ass'y | Package XMR

506152115

$44.49

32

Black Support Plate

506152536

$9.19

33

Hex. Flange Screw M6 X 20

207662084

$1.69

34

Bushing | Package XMR

506152156

$5.61

35

Hex. Flange Elastic Nut M6

233261494

$1.58

36

Horn

549011291

$35.99
