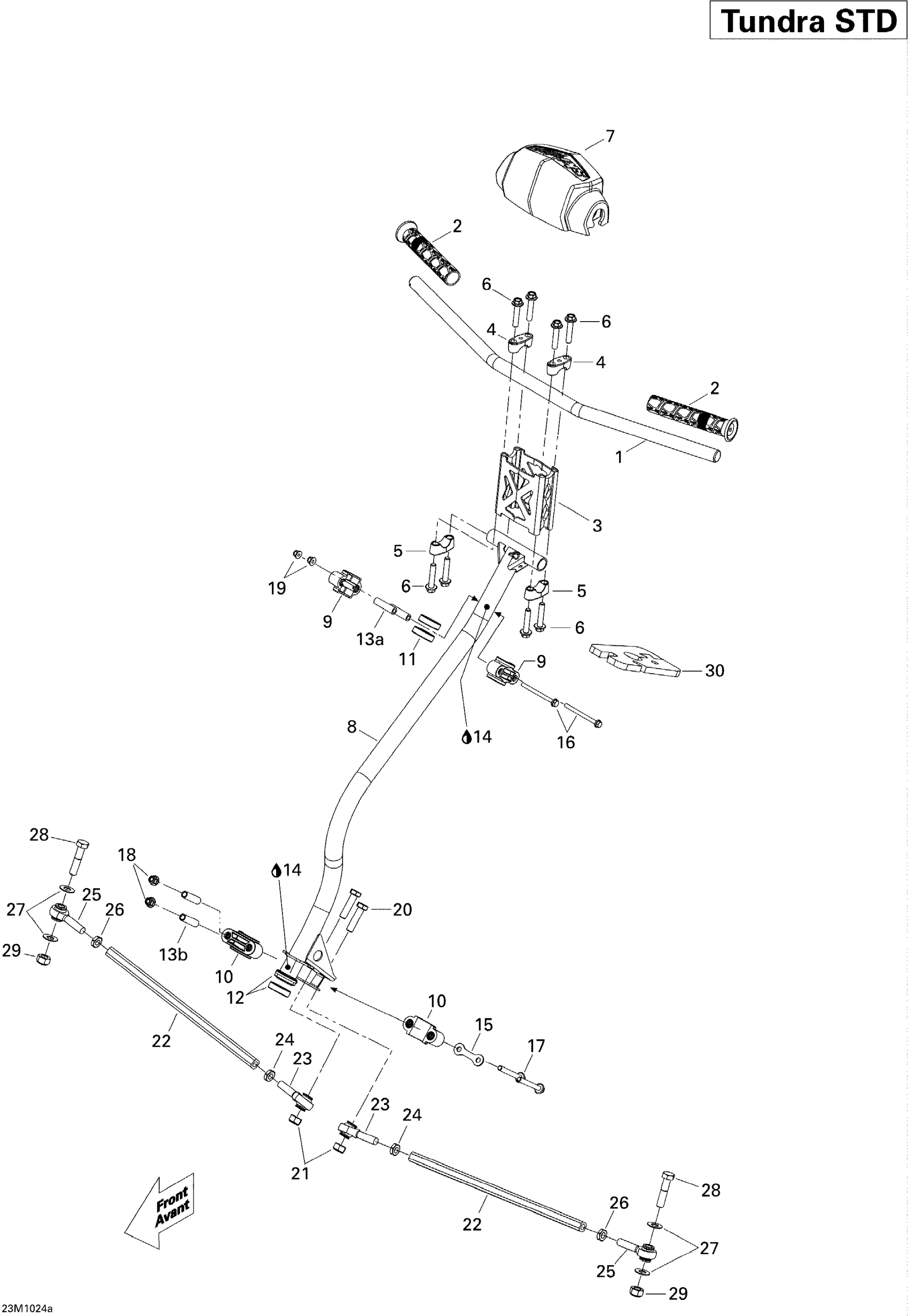

Ski-Doo Skandic Tundra, STD, SPORT, LT, 2010 Steering 1, STD Diagram

#

Description
Price

1

HANDLE BAR - Call your local BRP dealership

506152203

Unavailable

2

Handle Grip

506152424

$13.37

3

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

Unavailable

4

Steering Support | Includes 40 to 40a

506152751

$11.58

5

Steering Support | Includes 40 to 40a

506152751

$11.58

6

Hex. Flange Screw M8 X 40

250000352

$3.16

7

Steering Pad

506152192

$52.96

8

Steering Column

506152963

$276.84

9

Upper Half Housing

506152219

$1.63

10

Lower Half-Housing

506152217

$5.40

11

Upper Vibration Ring

506152292

$0.70

12

Lower Vibration Ring

506152518

$4.39

13a

Housing Bushing

506152297

$9.93

13b

Lower Housing Bushing

506152388

$14.81

14

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

15

Stopper Plate

506152389

$9.93

16

Hex. Flange Screw M6 X 70

207667056

$4.15

17

Hex. Flange Screw M8 x 65

207686534

$2.00

18

Hex. Flange Elastic Nut M8

233281414

$1.31

19

Elastic Flange Nut M6 X 1.0

233261416

$2.00

20

Hex. Screw M10 X 1.5 X 40

207004034

$2.00

21

Elastic Stop Nut M10

232500416

$1.79

22

ROD_LINK - Call your local BRP dealership

506152377

Unavailable

23

LH Thread Ball Joint

506152081

$38.78

24

LH Threaded Hex. Jam Nut M10

250100016

$0.70

25

RH Threaded Ball Joint

506152019

$38.78

26

RH Threaded Hex. Jam Nut M10

732610010

$0.70

27

Washer

506152194

$4.28

28

Hex. Screw M10 X 45

207004544

$1.60

29

Elastic Stop Nut M10

232500416

$1.79

30

Bushing

506152521

$13.19
