Description

Price

1

Large ''Blow Mold'' Ski With Handle | STD

505072020

$159.99

2

Black Pilot Ski Ass'y 6.9 RH

505073056

$179.99

3

Ski Bushing

505071781

$16.18

4

Black Pilot Ski Ass'y 6.9 LH

505073055

$179.99

5

Ski Bushing

505071781

$16.18

6

Retainer 17mm long

505071812

$5.95

7

Black, Handle

505070963

$35.99

8

Retainer 23mm Long

505072133

$6.78

9

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

10

Hex. Flange Elastic Nut M8

233281414

$1.47

11

Carbide Runner Kit | STD, Includes 7 to 9 This part replaces 861805509.

860512100

$92.99

12

Hex. Flange Elastic Nut M8

233281414

$1.47

13

Flat Washer 8 mm

234082410

$1.47

14

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

15

Spacer

506133300

$23.99

16

Washer

732900049

$0.58

17

Washer

732900049

$0.58

18

Hex. Flange Elastic Nut M10

233201414

$1.58

19

SKI STOPPER - Call your local BRP dealership | STD

505072593

Unavailable

20

Ski Stopper

505072594

$18.49

21

Ski Leg

505072778

$269.99

22

Spacer

505072579

$9.69

23

S2 Modul, Ass'y | Includes 400 to 400c

505073497

$529.99

24

Upper Cushion

414803100

$10.49

25

Lower Cushion

414803200

$14.68

26

Grease Fitting

408200700

$3.49

27

Seal Oil

505072696

$45.99

28

Circlip

505072698

$14.99

29

SHOCK - Call your local BRP dealership

505072555

Unavailable

30

Washer

505072578

$14.22

31

Black, Spring

505072557

$67.99

32

Spring Stopper

505072619

$12.99

33

Cushion

572034500

$12.58

34

Stopper

570025800

$14.99

35

Steering Arm

505073171

$134.99

36

Spacer

505073983

$25.99

37

LH Suspension Cover | Includes 1320 to 1320a

505073449

$59.99

38

RH Suspension Cover | Includes 1330 to 1330a

505073450

$59.99

39

Socket Head Screw M8 X 20

205082044

$1.15

40

Hex. Flange Elastic Nut M10

233201414

$1.58

41

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

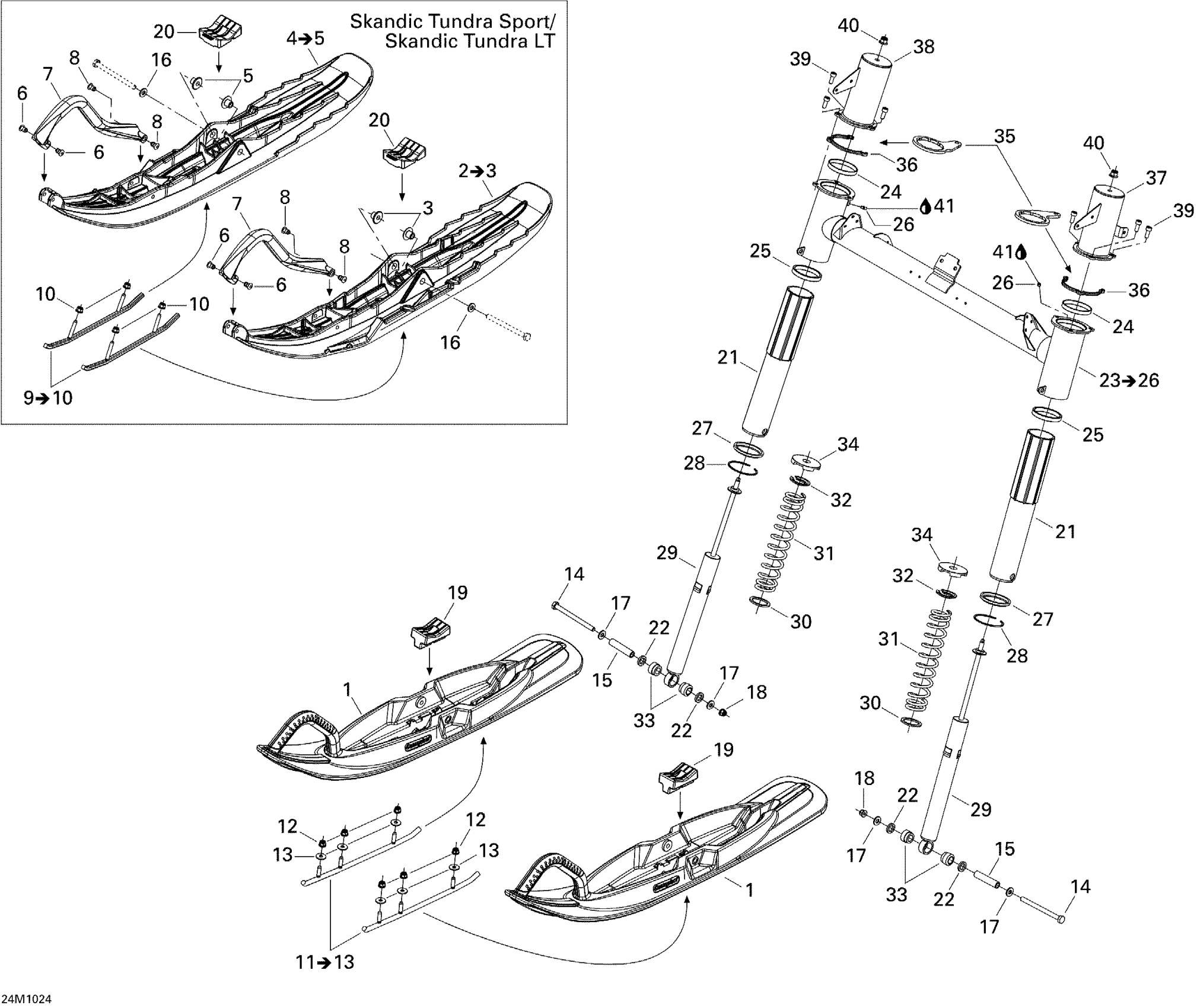

Ski-Doo Skandic Tundra, STD, SPORT, LT, 2010 07- Front Suspension And Ski Diagram

Large ''Blow Mold'' Ski With Handle | STD

Black Pilot Ski Ass'y 6.9 RH

Ski Bushing

Black Pilot Ski Ass'y 6.9 LH

Ski Bushing

Retainer 17mm long

Black, Handle

Retainer 23mm Long

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

Hex. Flange Elastic Nut M8

Carbide Runner Kit | STD, Includes 7 to 9 This part replaces 861805509.

Hex. Flange Elastic Nut M8

Flat Washer 8 mm

Hex. Screw M10 X 130 | Model-RT STD

Spacer

Washer

Washer

Hex. Flange Elastic Nut M10

SKI STOPPER - Call your local BRP dealership | STD

Ski Stopper

Ski Leg

Spacer

S2 Modul, Ass'y | Includes 400 to 400c

Upper Cushion

Lower Cushion

Grease Fitting

Seal Oil

Circlip

SHOCK - Call your local BRP dealership

Washer

Black, Spring

Spring Stopper

Cushion

Stopper

Steering Arm

Spacer

LH Suspension Cover | Includes 1320 to 1320a

RH Suspension Cover | Includes 1330 to 1330a

Socket Head Screw M8 X 20

Hex. Flange Elastic Nut M10

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
