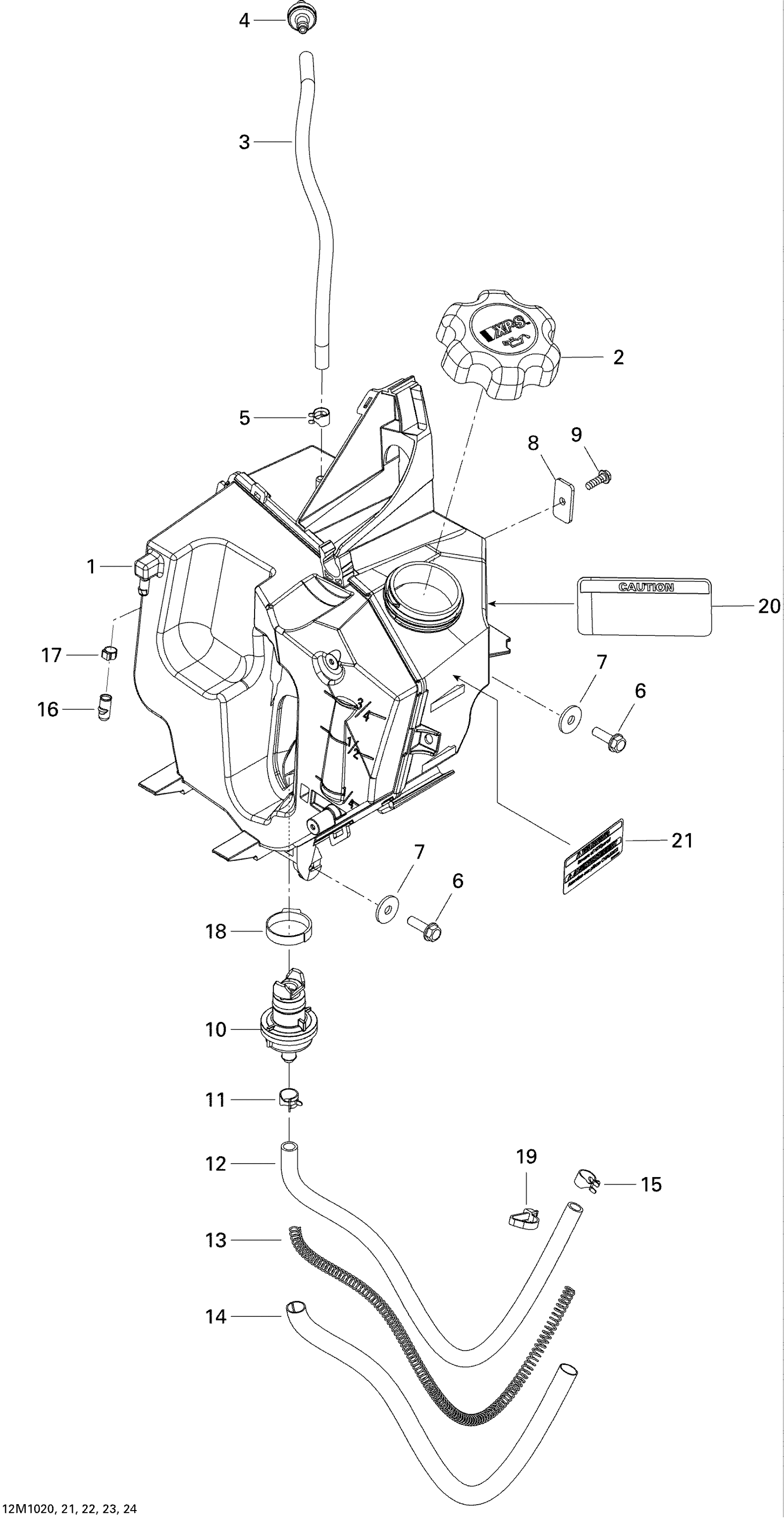

Ski-Doo Skandic Tundra, STD, SPORT, LT, 2010 02- Oil System Diagram

#

Description
Price

1

Oil Tank

519000312

$97.99

2

CAP - Call your local BRP dealership

519000194

Unavailable

3

Polyurethane Hose 10000Mm Long

219704410

$56.99

4

Check Valve

275500398

$10.99

5

Spring Clamp

414554800

$0.88

6

Hex. Flange Screw M6 X 20, Scotch Grip

250000331

$2.11

7

Flat Washer

224061201

$1.37

8

Bracket

519000179

$10.49

9

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

10

Oil Filter

519000242

$13.77

11

Spring Clamp

414415200

$0.88

12

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

13

Spring

519000196

$9.69

14

Tubing 10 MM 1000MM Long

219704407

$2.79

15

Spring Clamp

414420700

$0.72

16

Cap

519000216

$7.29

17

Oetiker Gear Clamp

293650043

$3.39

18

Crimp Clamp

293650099

$4.29

19

Tie-Rap 180 mm

414115200

$0.11

20

WARNING DECAL, BRP XPS OIL - Call your local BRP dealership

516004720

Unavailable

21

WARNING DECAL, HOT PARTS - Call your local BRP dealership

516002965

Unavailable
