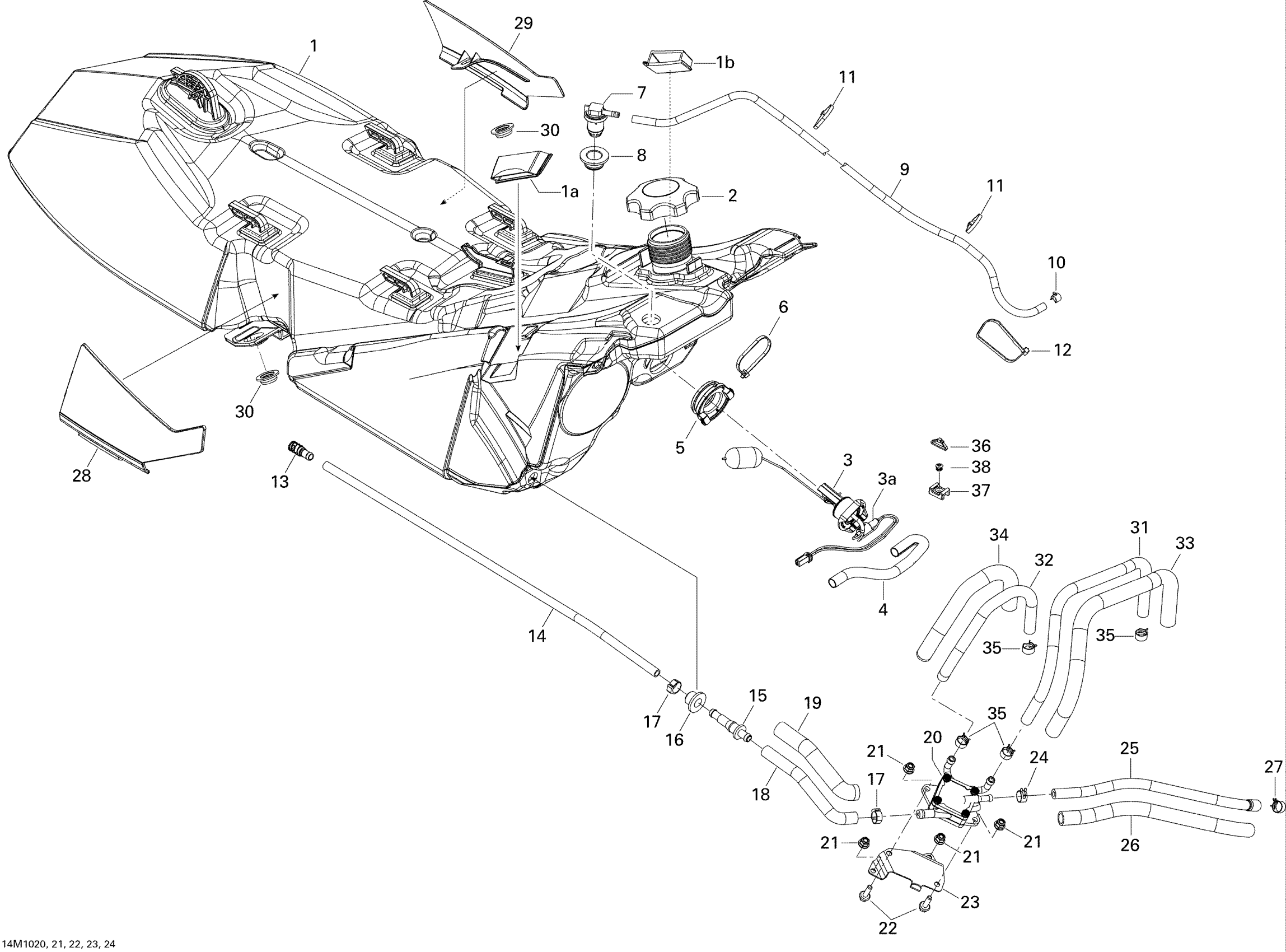

Ski-Doo Skandic Tundra, STD, SPORT, LT, 2010 Fuel System Diagram

#

Description
Price

1

Fuel Tank

513033695

$304.45

1a

RH Panel Clip

513033471

$5.36

1b

LH Panel Clip

513033472

$5.36

2

Fuel Tank Cap

513033025

$22.36

3

Sensor Level Fuel | Includes 40 to 40a

513033958

$101.46

3a

Fuse, 0.5 Ampère

710001995

$7.25

4

Tubing 10 MM 1000MM Long

219704407

$2.52

5

Grommet

513033606

$17.88

6

Tie Wrap 368 mm

293750008

$0.97

7

Check Valve

513033842

$32.81

8

Grommet

513033596

$17.88

9

Polyurethane Hose 10000Mm Long

219704410

$52.96

9

Polyurethane Hose 10000Mm Long

219704410

$52.96

10

Spring Clamp

414554800

$0.81

11

Tie-Rap 180 mm

414115200

$0.10

12

Tie-Rap 180 mm

414115200

$0.10

13

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

14

Polyurethane Hose 1000Mm Long

219704391

Unavailable

15

Male Connector

414872700

Unavailable

16

Grommet

513033435

$4.28

17

Crimp Clamp

293650053

$2.78

18

Formed Hose

513033499

$28.33

19

Tubing 16 Mm 1000Mm Long

219704408

$7.15

20

Fuel Pump

403901813

$84.99

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

22

Hex. Flange Screw M6 X 20

207662044

$1.91

23

Pump Bracket

513033543

$17.88

24

Spring Clamp

414415200

$0.81

25

Formed Hose

513033553

$23.10

26

Tubing 16 Mm 1000Mm Long

219704408

$7.15

27

Universal Spring Clamp

513033029

$4.96

28

RH Cap

513033418

$12.24

29

LH Cap

513033419

$12.24

30

Shoulder Bushing

513033326

$12.24

31

Hose 3000Mm Long

219704612

$77.58

32

Hose 3000Mm Long

219704612

$77.58

33

Tubing 16 Mm 1000Mm Long

219704408

$7.15

34

Tubing 16 Mm 1000Mm Long

219704408

$7.15

35

Universal Spring Clamp

513033029

$4.96

36

Tie Rap Mount (screwable)

515176795

$4.96

37

Tie Wrap 142 mm

293750002

$1.01

38

Pop Rivet 3/16" | DS 650 X

390402000

$0.27
