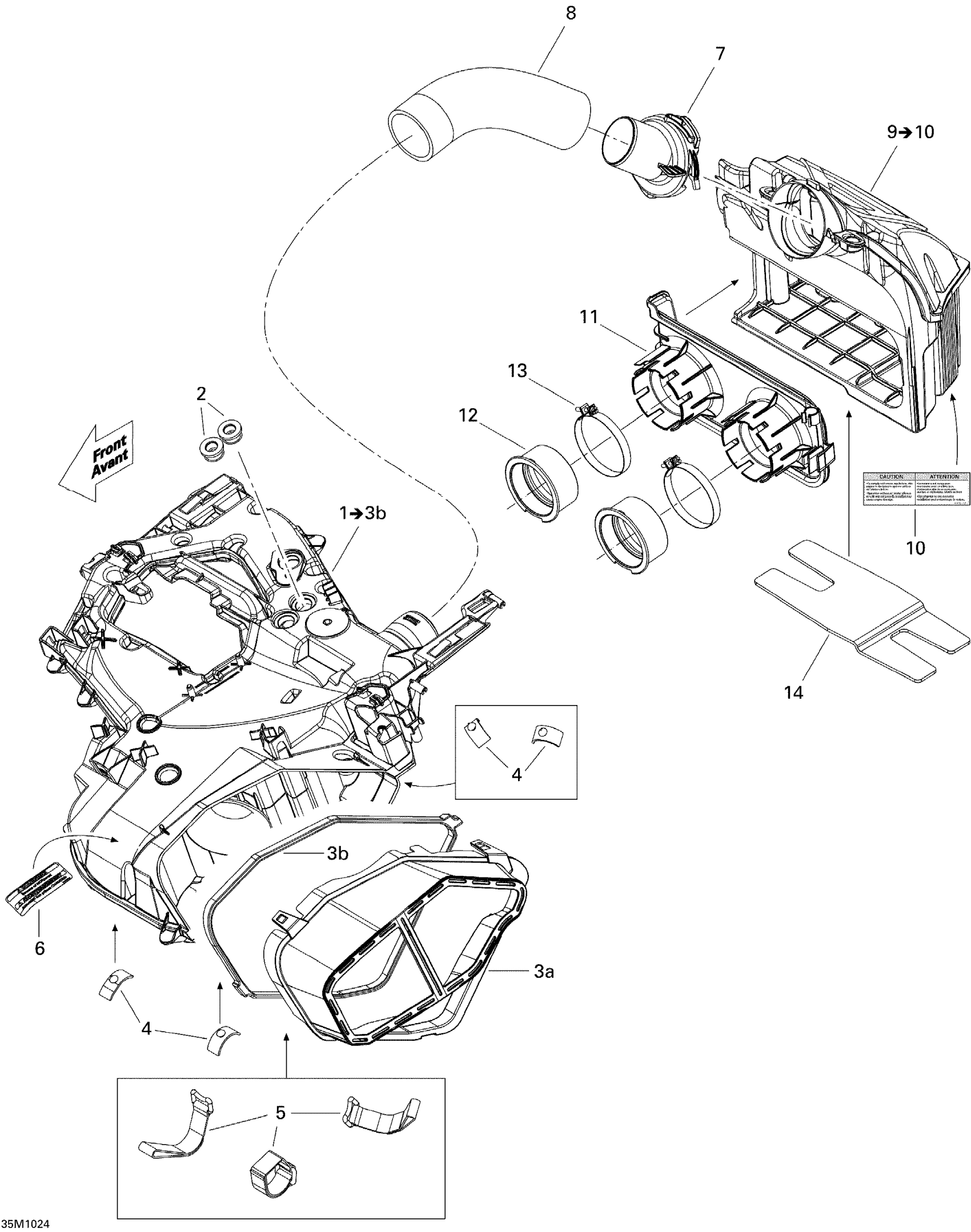

Ski-Doo Skandic Tundra, STD, SPORT, LT, 2010 Air Intake System Diagram

#

Description

Price

1

Secondary Chamber Ass'y

508000715

$191.51

2

Grommet

508000574

$7.35

3a

Air Intake Filter

508000595

$39.97

3b

SEAL - Call your local BRP dealership

508000682

Unavailable

4

Stopper

508000537

$7.35

5

Velcro Strip

508000820

$7.35

6

WARNING DECAL, HOT PARTS - Call your local BRP dealership

516002965

Unavailable

7

Link

508000562

$9.54

8

Tube

508000406

$11.57

9

Primary Chamber Ass'y

508000680

$69.20

10

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership

516003371

Unavailable

11

ADAPTER PLATE - Call your local BRP dealership

508000564

Unavailable

12

Air Intake Adapter

508000594

$18.43

13

Gemi Clamp

508000369

$11.52

14

Insulated Foam

508000674

$12.58
