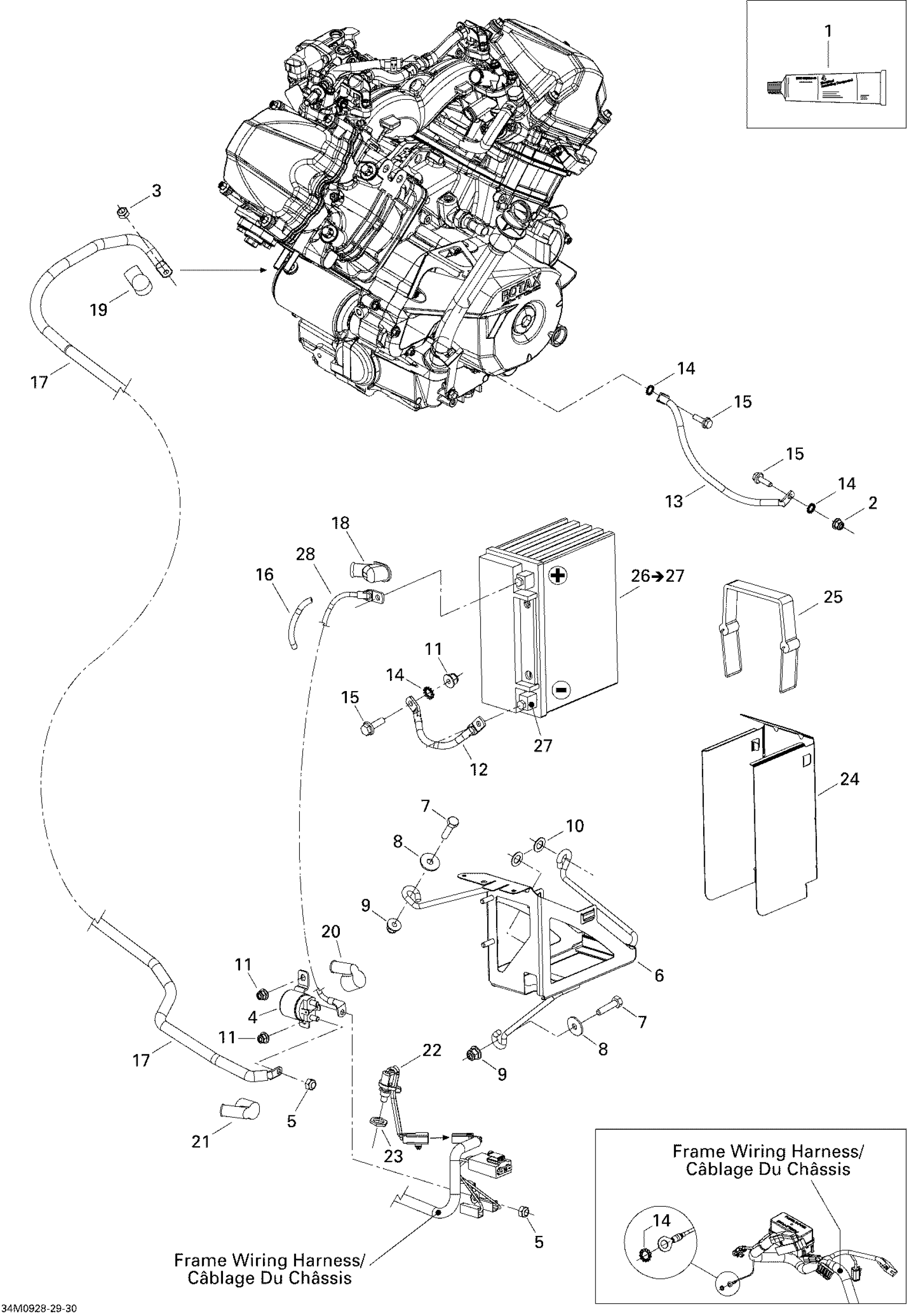

Ski-Doo Skandic Tundra LT V800 4-TEC, 2009 Battery And Starter Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

2

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

3

Elastic Stop Nut M6

232561414

$1.78

4

Starter Relay

515176011

$59.67

5

Elastic Stop Nut M6

232561414

$1.78

6

BATTERY SUPPORT - Call your local BRP dealership

515176401

Unavailable

7

Hex. Screw M6 X 25

207162544

$1.01

8

Flat Washer

224061201

$1.27

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

10

Washer

503175800

$3.16

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

12

Ground Wire

515175749

$18.63

13

Ground Wire

515176407

Unavailable

14

External Serrated Lock Washer 6 mm

234461608

$1.06

15

Hex. Flange Screw M6 X 20

207662044

$1.91

16

Was 409901700 Tubing (9 mm)

219704399

$77.58

17

Battery Wire

515176392

Unavailable

18

Protector Cap

710000495

$9.84

19

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

20

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

21

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

22

Switch Ass'y

515176472

$69.37

23

Brass Nut

250000373

Unavailable

24

DEFLECTOR - Call your local BRP dealership

515175616

Unavailable

25

Battery Strap This part replaces 515175955.

605356180

$25.34

26

Battery, 12 Volts, 21 Amperes

410922962

$184.30

27

Battery Bolt Kit

250000282

$3.39

28

Battery Wire

515175904

$17.88
