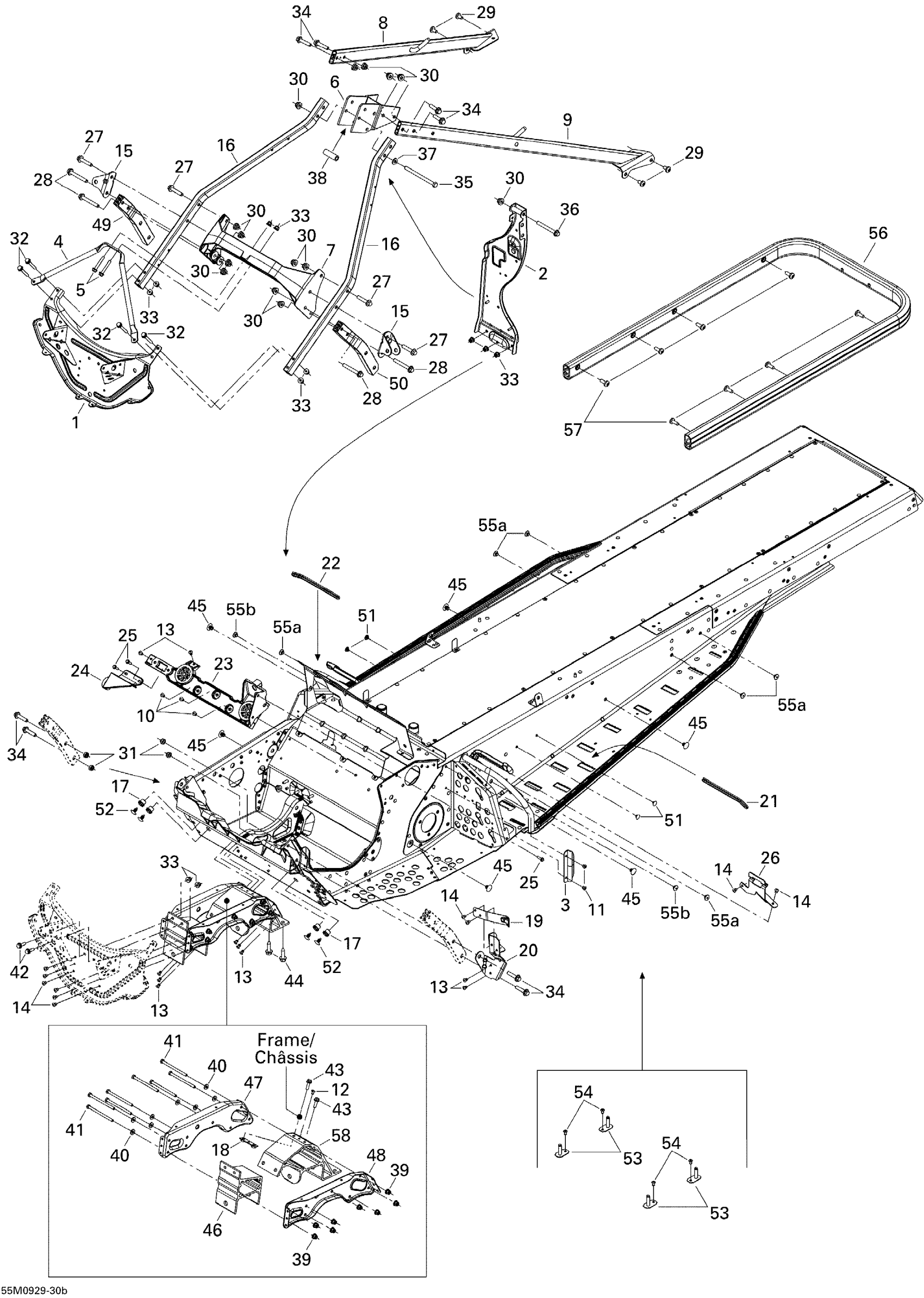

Ski-Doo Skandic Tundra LT V800 4-TEC, 2009 Frame and Components Diagram

#

Description
Price

1

FRONT PLATE - Call your local BRP dealership

518324216

Unavailable

2

UPPER COLUMN SUPPORT - Call your local BRP dealership

518325212

Unavailable

3

CABLE PROTECTOR - Call your local BRP dealership

518317504

Unavailable

4

BRACE - Call your local BRP dealership

518325036

Unavailable

5

Hex. Flange Screw M6 X 40

207664044

$2.18

6

BRACKET BLOCK - Call your local BRP dealership

518324196

Unavailable

7

UPPER CROSS MEMBER - Call your local BRP dealership

518324808

Unavailable

8

RH MEMBER - Call your local BRP dealership

518324480

Unavailable

9

LH Member

518325193

Unavailable

10

Hemlock Rivet, 6.5 mm

293150119

$4.00

11

Pop Rivet 3/16"

390402200

$0.26

12

Pop Rivet 3/16"

390402300

$0.75

13

Avex Rivet

390909100

$0.29

14

Avex Rivet

390909200

$0.29

15

SHOCK BRACKET - Call your local BRP dealership

518324202

Unavailable

16

UPPER TUBE - Call your local BRP dealership

518325074

Unavailable

17

Insert

293450166

$4.00

18

HOLDER PLATE - Call your local BRP dealership

518324204

Unavailable

19

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518325235

Unavailable

20

GUARD BELT SUPPORT - Call your local BRP dealership

518325075

Unavailable

21

Was 271000110 Protection Trim

219704353

$15.03

22

Was 271000110 Protection Trim

219704353

$15.03

23

LH REAR ENGINE SUPPORT - Call your local BRP dealership

518324902

Unavailable

24

RH Rear Engine Support

518324903

Unavailable

25

Hex. Flange Screw, Scotch Grip

207551634

$1.66

26

GUARD BELT BRACKET - Call your local BRP dealership

518325077

Unavailable

27

Hex. Flange Screw M8 X 40

207684044

$1.25

28

Hex. Flange Screw M8 x 60

207686044

$2.56

29

Pan Head Torx Screw M8 X 12

250000887

$1.56

30

Hex. Flange Elastic Nut M8

233281414

$1.14

31

Hex. Elastic Stop Nut M8

232581414

$0.47

32

Hex. Flange Screw M6 X 45

207664544

$1.07

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

34

Hex. Flange Screw M8 X 35

207683544

$1.39

35

HEX. SCREW M8 X 110 - Call your local BRP dealership

230081044

Unavailable

36

Hex. Flange Screw M8 X 70

207687044

$6.11

37

Washer

503189157

$3.20

38

Housing Bushing

506150500

$7.49

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

40

Flat Washer

250200039

$0.72

41

Hex. Screw M6 X 90

207069044

$4.02

42

Hex. Flange Screw M6 X 20

207662044

$1.66

43

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

44

Cone Screw, M8 X 30

250000257

$1.72

45

Panel Fastener

518321954

$6.03

46

FRONT ATTACHMENT, FRONT SUSPENSION - Call your local BRP dealership

518324019

Unavailable

47

RH LATERAL REINFORCEMENT - Call your local BRP dealership

518324014

Unavailable

48

LH LATERAL REINFORCEMENT - Call your local BRP dealership

518324017

Unavailable

49

RH TUBE - Call your local BRP dealership

518324786

Unavailable

50

LH TUBE - Call your local BRP dealership

518324787

Unavailable

51

Full Moon Dart 5 mm

293730042

$2.12

52

Black, Dart

414644300

$0.78

53

Tank Bracket

518322791

Unavailable

54

Pop Rivet 3/16"

390402400

$0.25

55a

Pop Rivet 3/16"

390406500

$0.70

55b

Not Available As Spare Part - Friction Washer

Unavailable

56

REAR BUMPER - Call your local BRP dealership

518325509

Unavailable

57

Hex. Screw M8 X 20

236282084

$1.48

58

REAR ATTACHMENT, FRONT SUSPENSION - Call your local BRP dealership

518324020

Unavailable
