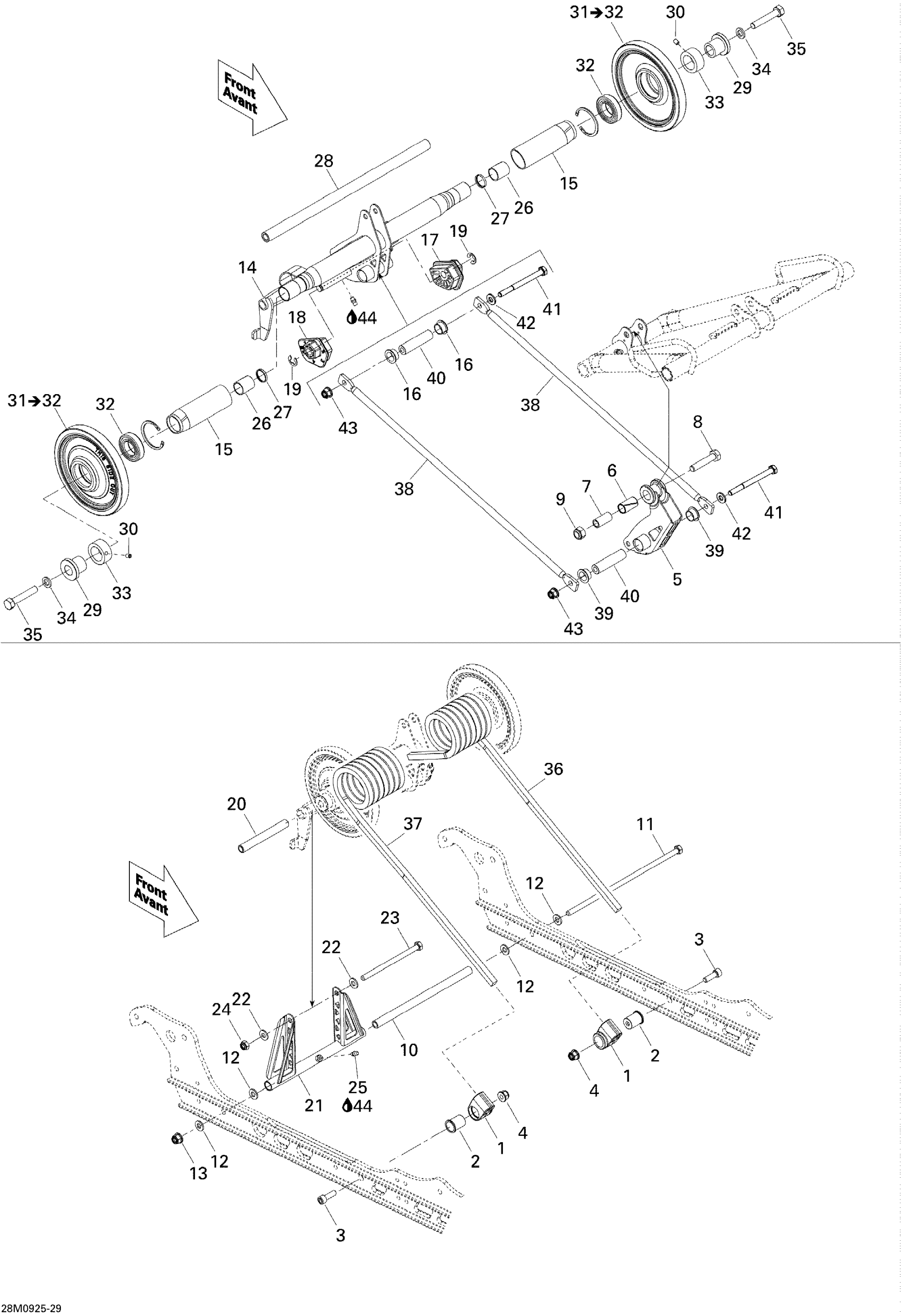

Ski-Doo Skandic Tundra LT V800 4-TEC, 2009 08- Rear Arm Diagram

Spring Support Kit

861805547

$10.49

Spring Support Kit

861805547

$10.49

Socket Head Screw M8 X 25

205082544

$1.15

Hex. Flange Elastic Nut M8

233281414

$1.47

Rocker

503192211

$83.99

Bushing

503193037

$16.18

Bushing | Includes 240d to 240d1

503189282

$4.34

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

Elastic Locking Nut M10 X 1.5

233601416

$1.69

Pivot Arm Axle

503189156

$21.99

Bolt M8 X 248mm

503192440

$30.49

Washer

503189157

$3.28

Hex. Flange Elastic Nut M8

233281414

$1.47

Rear Arm | Includes 3000a to 3000a7

503191762

$98.49

Bushing

572080700

$17.39

Swivel Bushing

503191555

$7.83

LH Cam Adjuster

503191565

$16.49

RH Cam Adjuster

503191566

$16.49

E-Circlip

293370013

$0.65

Upper Axle, Pivot Arm

503144300

$11.65

Pivot Arm | Includes 3000j to 3000j3

503191209

$124.99

Washer

503189157

$3.28

Bolt M8, Short

732601197

$15.36

Hex. Elastic Stop Nut M8

232581414

$0.56

Grease Fitting

408200700

$3.49

Extended Bushing

503191556

$7.83

Washer

503191651

$8.32

Upper Shaft

503191215

$38.99

Bushing

503191262

$15.79

Socket Set Screw M6 X 8

206260844

$1.48

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$48.49

Ball Bearing

503193548

$17.99

Retaining Ring

503168800

$14.99

Washer

503189564

$0.74

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

207205586

Unavailable

Black Lh Spring

503192105

$79.49

Black, RH Spring Square

503192104

$79.49

Link Rod

503191765

$18.49

Swivel Bushing

503191555

$7.83

Axle Bar (Long)

503190643

$17.39

Hex. Screw M8 X 90

207089044

$3.48

Washer

503189157

$3.28

Hex. Flange Elastic Nut M8

233281414

$1.47

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
