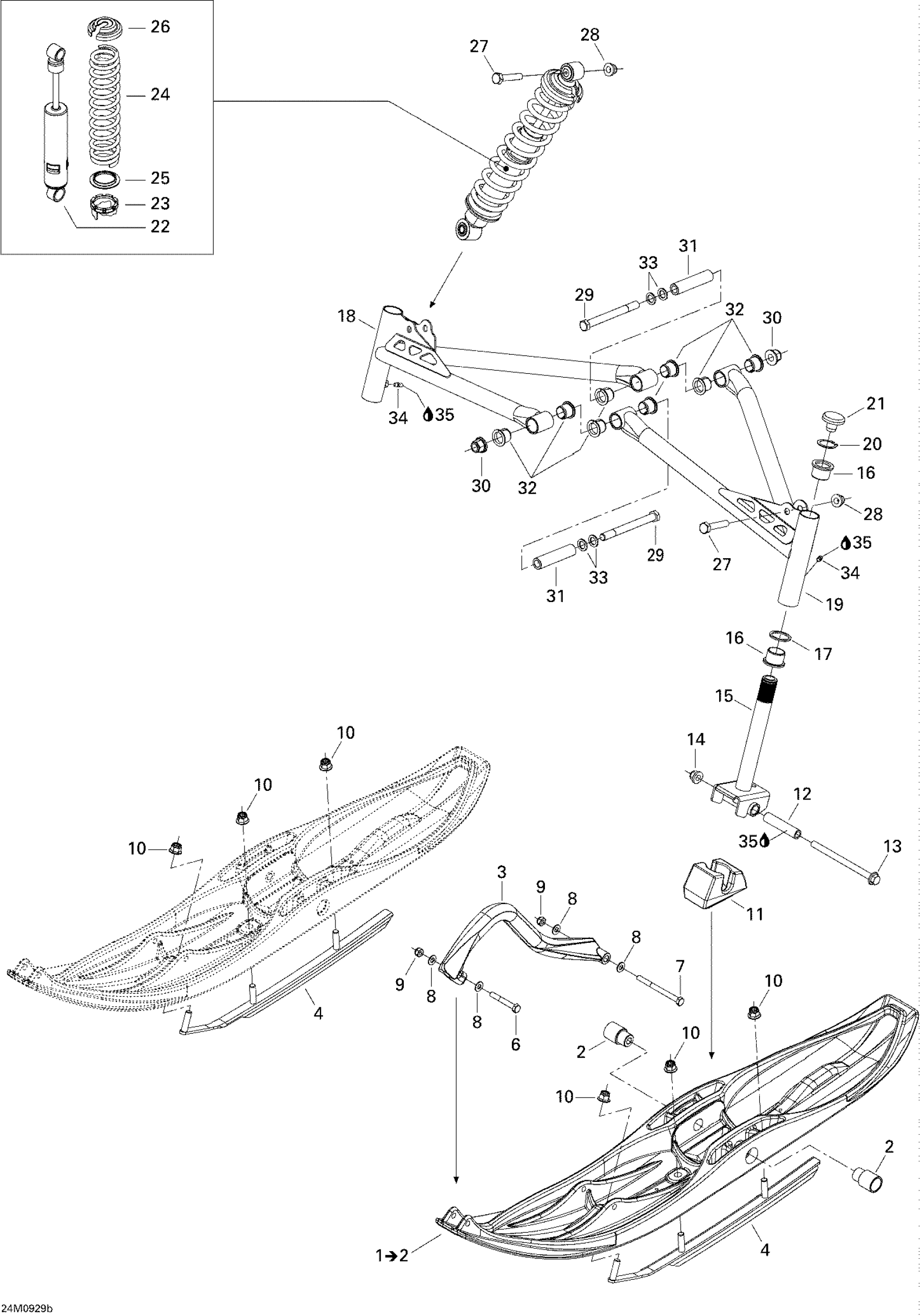

Ski-Doo Skandic Tundra LT V800 4-TEC, 2009 Front Suspension And Ski Euro Diagram

#

Description
Price

1

Ski | Europe models

505073034

$233.05

2

Bushing | Europe models

605348392

$52.99

3

Black, Handle

505070963

$35.35

4

RUNNER CARBIDE KIT - Call your local BRP dealership

619400005

Unavailable

6

Hex. Screw M8 X 50

207085044

$1.25

7

Hex. Screw M8 X 90

207089044

$2.82

8

Flat Washer 8 mm

234081410

$0.69

9

Hex. Elastic Stop Nut M8

232581414

$0.47

10

Hex. Flange Elastic Nut M10

233201414

$1.26

11

SKI STOPPER - Call your local BRP dealership

605348458

Unavailable

12

Spacer

506133300

$19.97

13

HEX. FLANGED SCREW M10 X 140 - Call your local BRP dealership

230604046

Unavailable

14

Hex. Flange Elastic Nut M10

233201414

$1.26

15

SKI LEG - Call your local BRP dealership

505072001

Unavailable

16

Cushion

505070003

$7.40

17

WASHER - Call your local BRP dealership

505070004

Unavailable

18

RH LOWER ARM - Call your local BRP dealership

505071739

Unavailable

19

LH LOWER ARM - Call your local BRP dealership

505071740

Unavailable

20

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

21

Cap

572091300

$8.97

22

FRONT SHOCK - Call your local BRP dealership | Except Europe

505072258

Unavailable

23

Adjustment Cam

505073625

$12.18

24

SPRING - Call your local BRP dealership

505071492

Unavailable

25

Spring Guide

503187500

$7.37

26

Spring Stopper

706200881

$10.30

27

Hex. Screw M10 X 55

207005544

$1.85

28

Hex. Flange Elastic Nut M10

233201414

$1.26

29

HEX. SCREW M12 X 120 - Call your local BRP dealership

230022044

Unavailable

30

Hex. Flange Elastic Nut M12

233221414

$5.10

31

BUSHING - Call your local BRP dealership

505071366

Unavailable

32

BUSHING - Call your local BRP dealership

505072094

Unavailable

33

Washer

503189276

$3.20

34

Grease Fitting

408200700

$2.80

35

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
