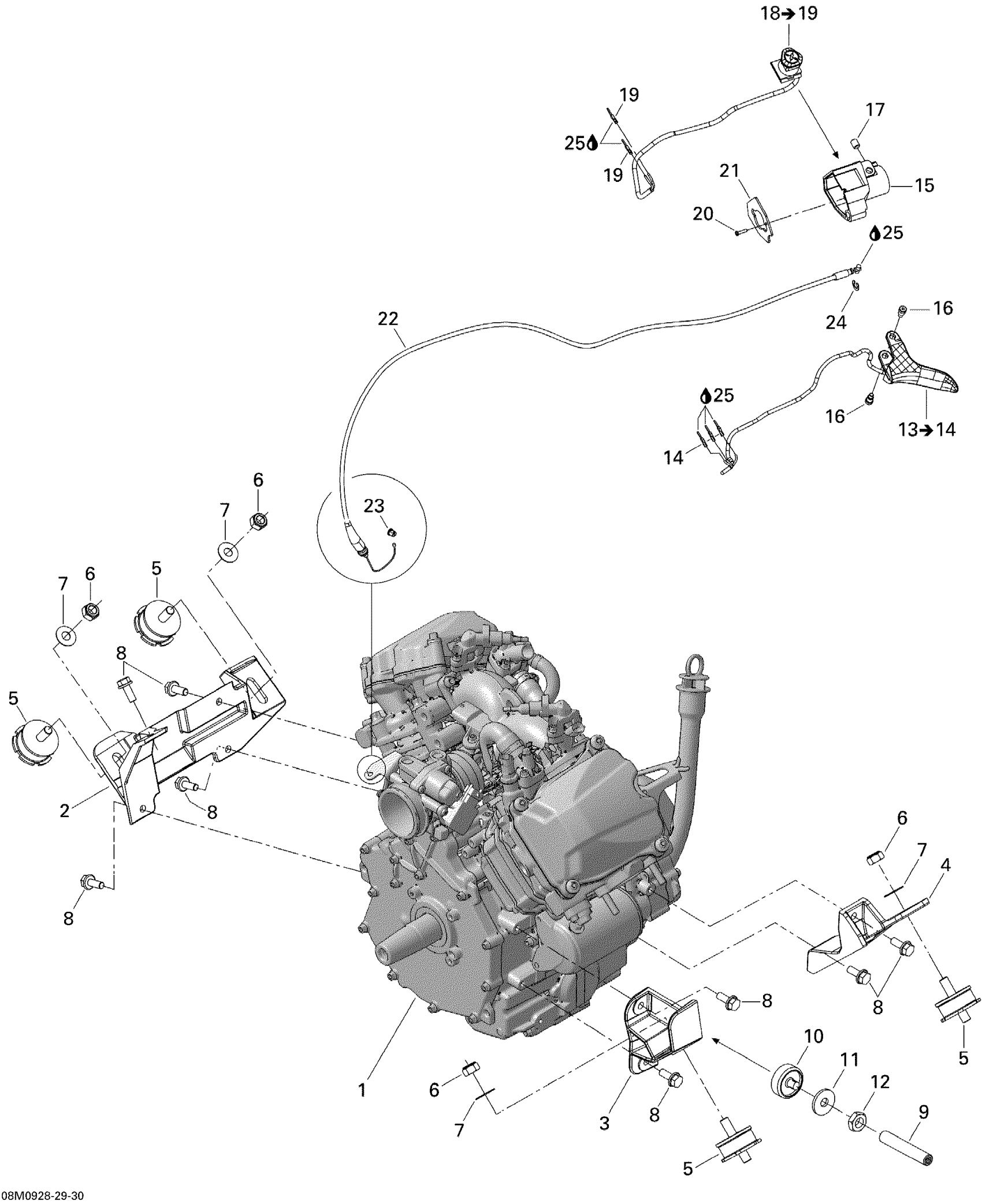

Ski-Doo Skandic Tundra LT V800 4-TEC, 2009 01- Engine And Engine Support Diagram

#

Description
Price

1

Engine, V-810 4-TEC

400800319

Unavailable

2

FRONT ENGINE SUPPORT - Call your local BRP dealership

512060076

Unavailable

3

ENGINE SUPPORT, PTO SIDE - Call your local BRP dealership

512060077

Unavailable

4

ENGINE SUPPORT, MAGNETO SIDE - Call your local BRP dealership

512060078

Unavailable

5

RUBBER MOUNT - Call your local BRP dealership

512059960

Unavailable

6

Elastic Stop Nut M10

232500416

$1.90

7

Washer

250200032

$5.08

8

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

9

STOPPER SCREW - Call your local BRP dealership

250500007

Unavailable

10

STOPPER - Call your local BRP dealership

512059610

Unavailable

11

WASHER - Call your local BRP dealership

512059057

Unavailable

12

Hex. Jam Nut M14

232170411

$1.48

13

Throttle Handle Ass'y | Includes 13 to 14

512060484

$124.99

14

Male Terminal

515175232

$1.58

15

Throttle Housing

512060603

$12.49

16

Flange Screw

732601143

$4.12

17

Socket Set Screw M8 X 10

414440800

$4.12

18

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

19

Male Terminal

515175232

$1.58

20

TORX SCREW M2.9 X 12 - Call your local BRP dealership

250000265

Unavailable

21

Plate

512060390

$10.33

22

THROTTLE CABLE - Call your local BRP dealership

512060125

Unavailable

23

Cable Guide

707000434

$11.60

24

Circlip

414274500

$0.90

25

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
