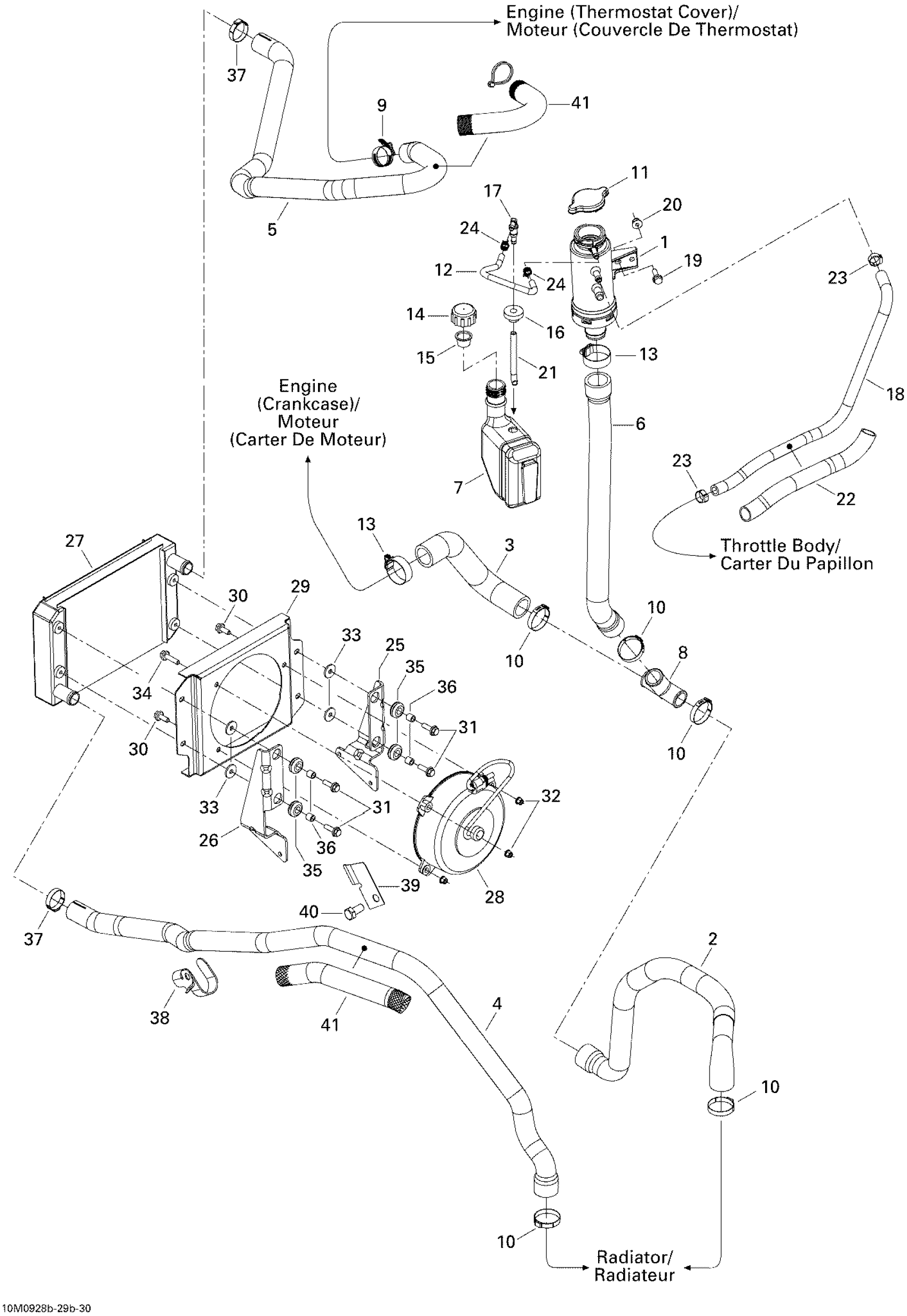

Ski-Doo Skandic Tundra LT V800 4-TEC, 2009 Cooling System Europe Diagram

#

Description
Price

1

FILLER NECK ASS'Y - Call your local BRP dealership

509000176

Unavailable

2

T-FITTING HOSE - Call your local BRP dealership

509000364

Unavailable

3

PUMP INLET HOSE - Call your local BRP dealership

509000365

Unavailable

4

EXIT HOSE - Call your local BRP dealership

509000481

Unavailable

5

ENTRY HOSE - Call your local BRP dealership

509000482

Unavailable

6

COOLANT TANK HOSE - Call your local BRP dealership

509000367

Unavailable

7

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

8

T-Fitting

509000219

$14.90

9

Tridon Gear Clamp

293650019

$5.52

10

Oetiker Gear Clamp 36.1MM

509000045

$4.07

11

Pressure Cap

509000187

$26.84

12

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

13

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

14

TANK CAP - Call your local BRP dealership

709200009

Unavailable

15

PROTECTION CAP - Call your local BRP dealership

709200205

Unavailable

16

Grommet

709200285

$8.13

17

Elbow Male Connector

414580600

$4.01

18

Was 509000407 Hose 8 mm

219704420

$46.24

19

Hex. Flange Screw M6 X 20

207662044

$1.91

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

21

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

22

Tubing 16 Mm 1000Mm Long

219704408

$7.15

23

Oetiker Clamp

293650140

$2.46

24

Spring Clamp

414554800

$0.81

25

RH SUPPORT - Call your local BRP dealership

509000483

Unavailable

26

LH SUPPORT - Call your local BRP dealership

509000484

Unavailable

27

Radiator

509000488

$320.87

28

FAN - Call your local BRP dealership

709200173

Unavailable

29

FAN SUPPORT - Call your local BRP dealership

509000487

Unavailable

30

Hex. Flange Screw M6 X 16

207661644

$0.70

31

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

33

Flat Washer

224061201

$1.27

34

Hex. Flange Screw M6 X 25

207662544

$0.61

35

Grommet

709000582

$4.25

36

Bushing

293900105

$6.07

37

Crimp Clamp

293650099

$4.07

38

SUPPORT - Call your local BRP dealership

509000494

Unavailable

39

PROTECTOR - Call your local BRP dealership

509000496

Unavailable

40

Hex. Screw M10 X 20, Scotch Grip

207302044

Unavailable

41

Protector Tube 32 Mm 1000Mm Long

219704421

$24.60
