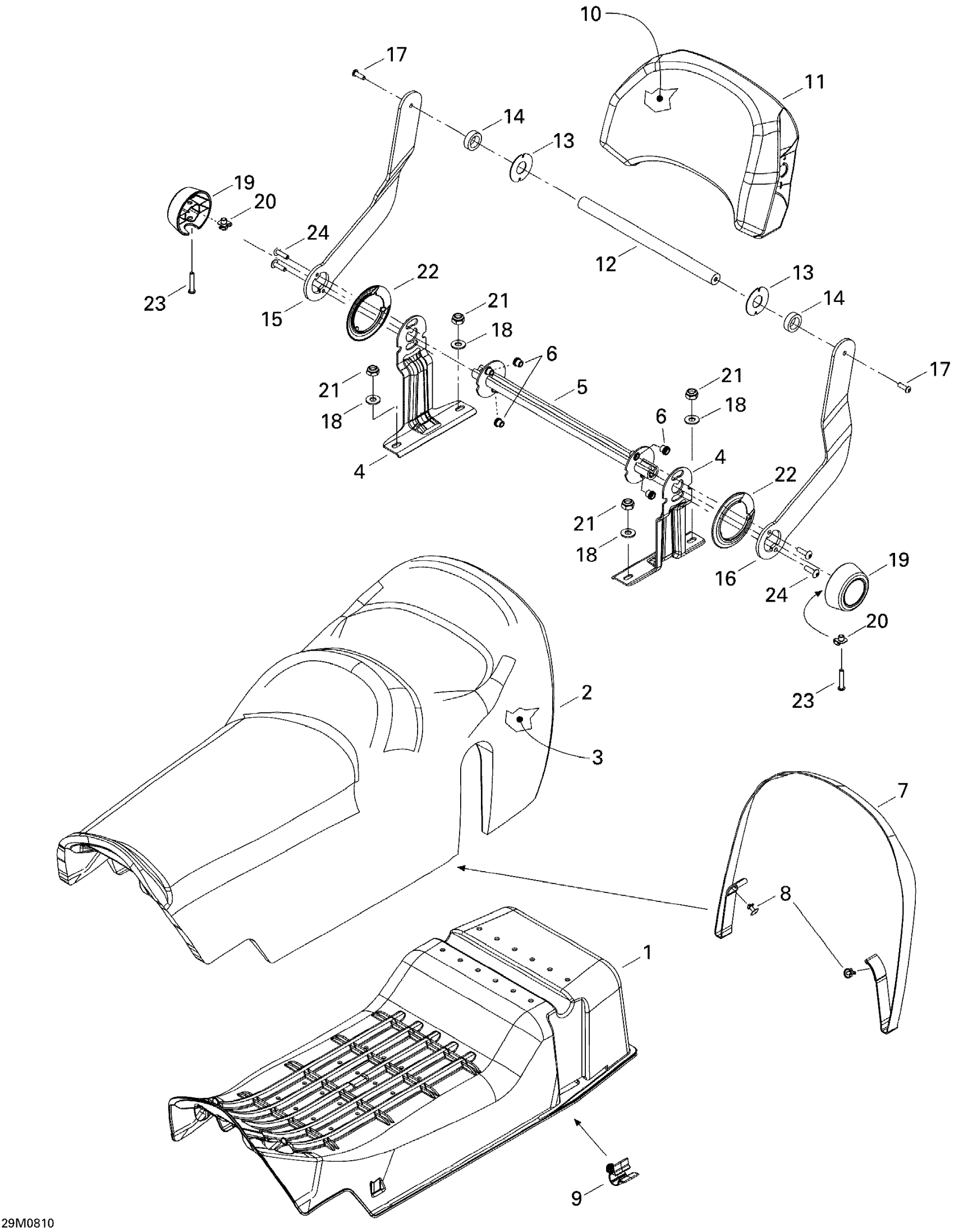

Ski-Doo Skandic Tundra LT V-800, 2008 09- Seat Diagram

#

Description
Price

1

SEAT BASE - Call your local BRP dealership

510004887

Unavailable

2

SEAT COVER - Call your local BRP dealership

510004669

Unavailable

3

Foam

510004670

Unavailable

4

T PLATE - Call your local BRP dealership

510004662

Unavailable

5

CROSS MEMBER - Call your local BRP dealership

510004663

Unavailable

6

Insert

293450166

$4.29

7

COURROIE DE SIEGE - Call your local BRP dealership

510004768

Unavailable

8

Rivet | Model-T3

293150067

$2.89

9

Hose Retainer

275500528

Unavailable

10

BACKREST FOAM - Call your local BRP dealership

510004365

Unavailable

11

BACKRESS COVER - Call your local BRP dealership

510004761

Unavailable

12

Upper Backrest Axle

510004377

$44.99

13

Washer

510004379

$10.01

14

Rubber Shim

510004378

$10.99

15

RH ARM, BLACK - Call your local BRP dealership

510004373

Unavailable

16

LH ARM, BLACK - Call your local BRP dealership

510004375

Unavailable

17

SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership

205982586

Unavailable

18

Flat Washer 8 mm

234082410

$1.47

19

CAP - Call your local BRP dealership

510004481

Unavailable

20

J-nut

250100053

Unavailable

21

Hex. Elastic Stop Nut M8

232581414

$0.56

22

SPACER - Call your local BRP dealership

510004713

Unavailable

23

SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership

250000220

Unavailable

24

Hex Torx Truss M8 X30

250000745

$3.17
