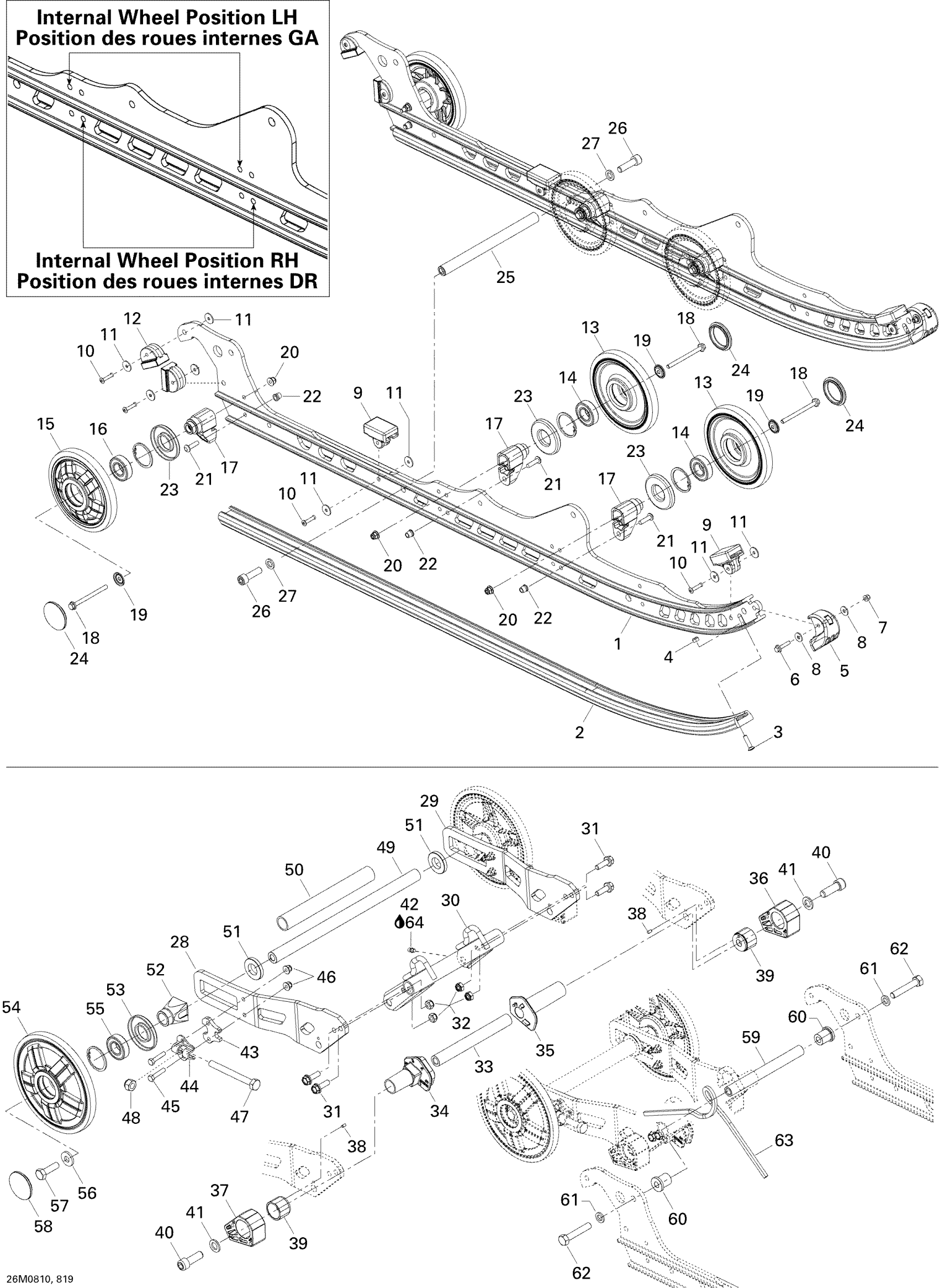

Ski-Doo Skandic Tundra LT V-800, 2008 Rear Suspension Diagram

#

Description
Price

1

Runner | Model-LE

503193397

$230.74

2

Slider 137

503191619

$33.05

3

Phillips Screw M6 X 25

208562531

$1.74

4

Elastic Stop Nut M6

232561414

$1.55

5

Runner Protector

503191137

$10.20

6

Hex. Flange Screw M5 X 25

207652544

$0.42

7

Hex. Flange Elastic Nut M5

233251414

$1.66

8

Washer | DS 650 X

391301600

$0.48

9

Rubber Stopper

503190576

$10.23

10

Pop Rivet 3/16"

293150142

$2.11

11

Washer

503191273

$1.06

12

Rubber Stopper

503191291

$18.43

13

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$46.12

14

Ball Bearing | Package-STD

503190396

$7.12

15

WHEEL 147 WITH PATTERN ASS'Y, YELLOW - Call your local BRP dealership | Includes 15 to 16

503191319

Unavailable

16

Ball Bearing | Package-STD

503190396

$7.12

17

Casted Support

503193894

$12.75

18

Hex. Flange Screw M6 X 70

207667044

$0.70

19

Wheel Cup M6

503191820

$4.66

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

21

Hex. Flange Screw M6 X 25

207662544

$0.53

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

23

Labyrinth Seal

503190434

$4.29

24

Wheel Cap

570063600

$3.28

25

Axle Strap

503191260

$29.20

26

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

27

Washer

503189564

$0.72

28

Rail Pivot RH

503192435

$83.82

29

Rail Pivot LH

503192434

$83.82

30

PIVOT - Call your local BRP dealership

503191598

Unavailable

31

Hex. Flange Screw M8 X 25

207682544

$0.90

32

Hex. Elastic Stop Nut M8

232581414

$0.47

33

Cam Axle

503191608

$15.03

34

RH Spring Cam

503191190

$13.78

35

LH Spring Cam

503191668

$10.18

36

LH BLOCK - Call your local BRP dealership

503191425

Unavailable

37

RH BLOCK - Call your local BRP dealership

503191426

Unavailable

38

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

39

Block Guide

503189488

$37.66

40

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.91

41

Washer | 7415/7416. 7417/7418.

503189148

$2.72

42

Grease Fitting

408200700

$2.80

43

Spacer

503193250

$13.95

44

Tensioner

503192583

$5.85

45

Hex. Screw M6 X 30

207063044

$0.98

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

47

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

48

Elastic Locking Nut M10 X 1.5

233601416

$1.68

49

Rear Axle

503190429

$59.97

50

Rear Spacer, Long

503191736

$15.35

51

Washer

503190432

$12.52

52

Rear Wheel Spacer

503190428

$6.06

53

Labyrinth Seal

503190434

$4.29

54

Wheel 180 With Pattern Ass'y, Yellow | Includes 34 to 35

503190342

$49.97

54a

Retaining Ring

415129371

$8.92

55

Ball Bearing | Package-STD

503190396

$7.12

56

Washer

503190439

$5.82

57

Hex. Screw With Nylon

250000019

$1.42

58

Wheel Cap

570063600

$3.28

59

Lower Shaft

503191279

$27.66

60

Bushing

503189324

$11.17

61

Washer

503189564

$0.72

62

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

207205586

Unavailable

63

SPRING - Call your local BRP dealership

503191603

Unavailable

64

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
