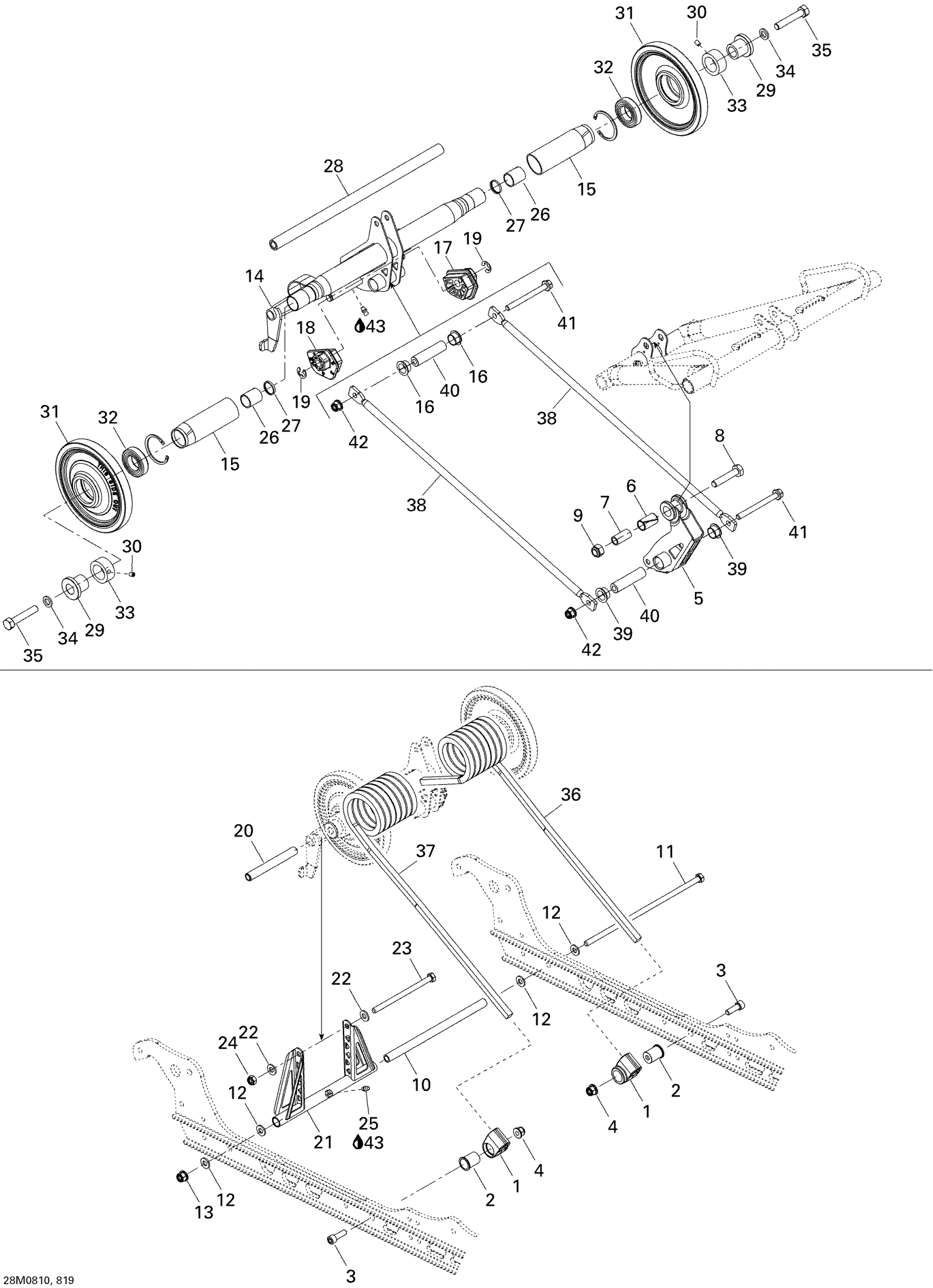

Ski-Doo Skandic Tundra LT V-800, 2008 Rear Arm Diagram

#

Description
Price

1

Spring Support Kit

861805547

$7.90

2

Spring Support Kit

861805547

$7.90

3

Socket Head Screw M8 X 25

205082544

$1.06

4

Hex. Flange Elastic Nut M8

233281414

$1.31

5

Rocker

503192211

$76.09

6

Bushing

503193037

$14.90

7

Bushing | Includes 240d to 240d1

503189282

$4.06

8

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

9

Elastic Locking Nut M10 X 1.5

233601416

$1.63

10

Pivot Arm Axle

503189156

$20.12

11

Bolt M8 X 248mm

503192440

$29.07

12

Washer

503189157

$3.10

13

Hex. Flange Elastic Nut M8

233281414

$1.31

14

Rear Arm | Includes 3000a to 3000a7

503191762

$91.01

15

Bushing

572080700

$14.81

16

Swivel Bushing

503191555

$5.54

17

LH Cam Adjuster

503191565

$13.54

18

RH Cam Adjuster

503191566

$13.54

19

E-Circlip

293370013

$0.60

20

Upper Axle, Pivot Arm

503144300

$10.84

21

Pivot Arm | Includes 3000j to 3000j3

503191209

$114.90

22

Washer

503189157

$3.10

23

Bolt M8, Short

732601197

$14.61

24

Hex. Elastic Stop Nut M8

232581414

$0.54

25

Grease Fitting

408200700

$3.21

26

Extended Bushing

503191556

$5.54

27

Washer

503191651

$7.27

28

Upper Shaft

503191215

$35.04

29

Bushing

503191262

$13.19

30

Socket Set Screw M6 X 8

206260844

$1.43

31

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$44.75

32

Ball Bearing

503193548

$16.39

33

Retaining Ring

503168800

$12.27

34

Washer

503189564

$0.70

35

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

207205586

Unavailable

36

LH SPRING, SQUARE - Call your local BRP dealership | Europe

503190775

Unavailable

37

RH SPRING, SQUARE - Call your local BRP dealership | Europe

503190773

Unavailable

38

Link Rod

503191765

$17.13

39

Swivel Bushing

503191555

$5.54

40

Axle Bar (Long)

503190643

$14.90

41

Hex. Flange Screw

207688544

$1.63

42

Hex. Flange Elastic Nut M8

233281414

$1.31

43

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
