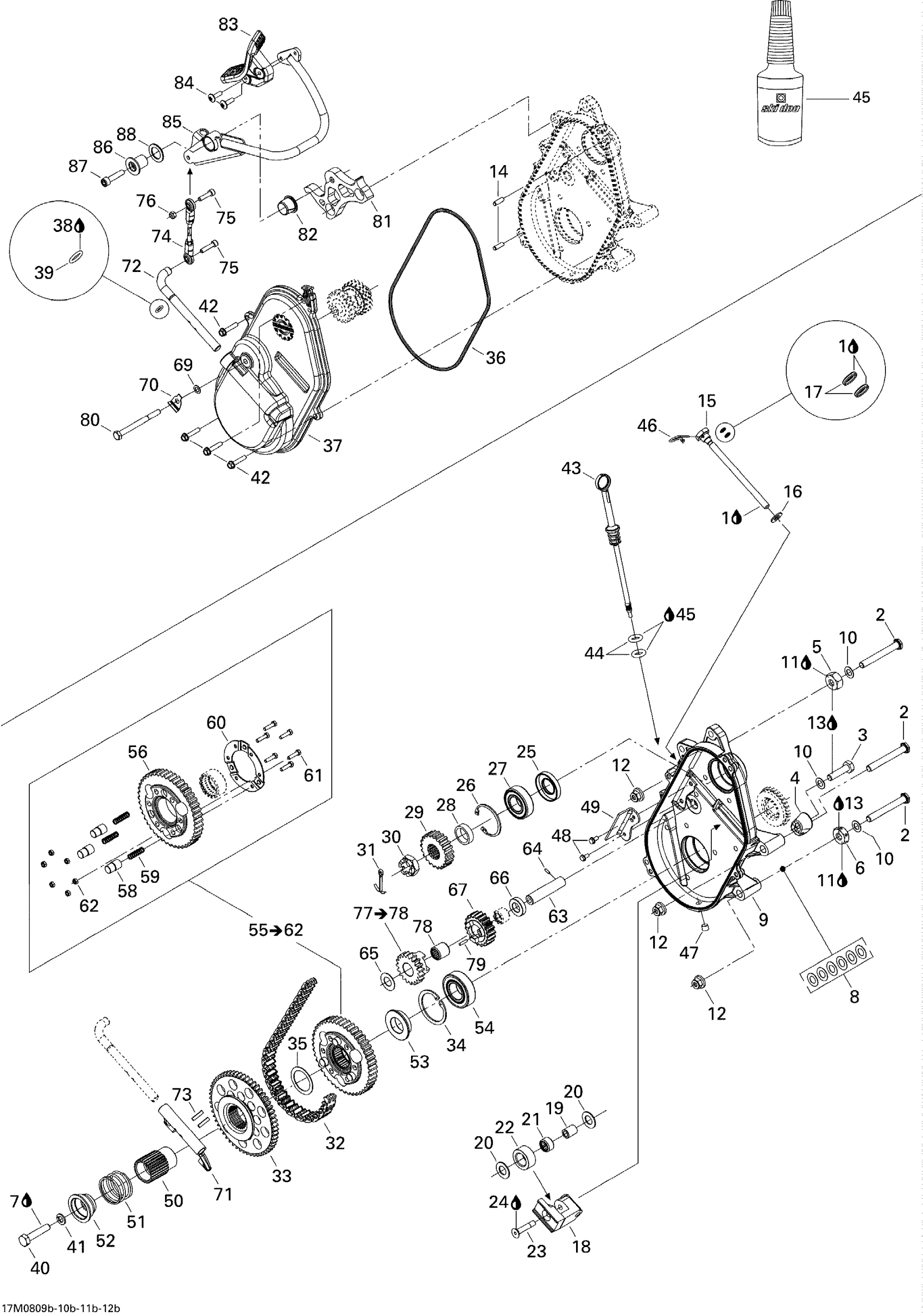

Ski-Doo Skandic Tundra LT V-800, 2008 05- Drive System 2 Diagram

#

Description
Price

1

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

2

HEX. SCREW M10 X 80 - Call your local BRP dealership

250000151

Unavailable

3

HEX. SCREW M10 X 40 - Call your local BRP dealership

207104044

Unavailable

4

Spacer

504152252

Unavailable

5

Spacer

504083800

Unavailable

6

SPACER - Call your local BRP dealership

504152237

Unavailable

7

Loctite 271, 10 ml

293800005

$26.99

8

WASHER - Call your local BRP dealership

504073700

Unavailable

9

CHAINCASE - Call your local BRP dealership This part replaces 504152064.

504153562

Unavailable

10

Washer

503175800

$3.28

11

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

12

Hex. Flange Elastic Nut M10

233201414

$1.58

13

Loctite 243, 10 ml

293800060

$21.49

14

CYLINDER PIN - Call your local BRP dealership | Package-2X4, 4X4

732620001

Unavailable

15

ADJUSTMENT SCREW - Call your local BRP dealership

732601314

Unavailable

16

Flat Washer 10 mm

234001410

$1.26

17

O-Ring

414484400

$7.51

18

Chain Tensioner

504151951

Unavailable

19

SPACER - Call your local BRP dealership

504080200

Unavailable

20

WASHER - Call your local BRP dealership

504080300

Unavailable

21

NEEDLE BEARING - Call your local BRP dealership

405403000

Unavailable

22

ROLLER - Call your local BRP dealership

414531300

Unavailable

23

SCREW - Call your local BRP dealership

732601144

Unavailable

24

Loctite 271, 10 ml

293800005

$26.99

25

SEAL - Call your local BRP dealership

504151927

Unavailable

26

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

27

Ball Bearing

293350115

$12.11

28

SHIM - Call your local BRP dealership

504147200

Unavailable

29

SPROCKET 17 TEETH - Call your local BRP dealership

504152807

Unavailable

30

HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership

250000012

Unavailable

31

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

32

DRIVE CHAIN, 72 LINKS - Call your local BRP dealership

504151830

Unavailable

33

SLIDING GEAR, 56 TEETH - Call your local BRP dealership

504096800

Unavailable

34

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

Unavailable

35

WASHER - Call your local BRP dealership

504094300

Unavailable

36

O-Ring

415046400

$24.99

37

COVER - Call your local BRP dealership

504151845

Unavailable

38

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

39

O-RING - Call your local BRP dealership

414773200

Unavailable

40

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

41

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

42

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

43

FILLER CAP ASSY - Call your local BRP dealership

504151750

Unavailable

44

O-RING - Call your local BRP dealership

414969400

Unavailable

45

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

46

Hair Pin

414575600

$1.89

47

Plug 1/8”-27

504151921

$4.19

48

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

49

SLIDER CHAIN - Call your local BRP dealership

504152036

Unavailable

50

Coupling Axle

504097700

Unavailable

51

Spring Release

504153178

$9.39

52

CAP - Call your local BRP dealership

504151964

Unavailable

53

RETAINING RING - Call your local BRP dealership

504076300

Unavailable

54

Ball Bearing

504152005

$46.49

55

SPROCK ASSY, 44 TEETH - Call your local BRP dealership | Includes 55 to 63

581096800

Unavailable

56

Sprocket, 44 Teeth

504084400

Unavailable

58

DRIVE PIN - Call your local BRP dealership

504076800

Unavailable

59

SPRING - Call your local BRP dealership

414772700

Unavailable

60

RETAINER RING - Call your local BRP dealership

504076100

Unavailable

61

Hex. Screw M5 X 20

207152044

$0.90

62

NUT-LOCK SPRING DIN.980V - Call your local BRP dealership

233551416

Unavailable

63

Reverse Shaft

504083100

$46.99

64

Rolled Pin M3 X 10

250400010

$1.90

65

Spacer

504077300

$6.95

66

Ring

504078700

$20.99

67

Sprock Ass'y, 19 Teeth | Includes 520 to 520a

581096900

$109.99

69

Washer

504082900

$2.64

70

TAB LOCK - Call your local BRP dealership

504087700

Unavailable

71

Fork

504075800

Unavailable

72

FORK AXLE - Call your local BRP dealership

504152367

Unavailable

73

SPRING PIN - Call your local BRP dealership

414772500

Unavailable

74

Ball Joint

504152951

$46.49

75

Socket Head Screw M6 X 25

205062560

$1.69

76

Elastic Stop Nut M6

232561414

$0.55

77

SPROCK ASS?Y, 19 TEETH - Call your local BRP dealership | Includes 76 to 77

581122200

Unavailable

78

NEEDLE BEARING - Call your local BRP dealership

414805000

Unavailable

79

Alignement Rod

570048600

$15.99

80

Hex. Screw M8 X 90

207089044

$3.48

81

SUPPORT - Call your local BRP dealership

504152567

Unavailable

82

BUSHING - Call your local BRP dealership

504152646

Unavailable

83

GRIP - Call your local BRP dealership

504152561

Unavailable

84

Torx Screw M6 X 20

250000722

$1.68

85

HANDLE - Call your local BRP dealership

504152615

Unavailable

86

BUSHING - Call your local BRP dealership

504152595

Unavailable

87

Socket Head Screw M8 X 35, Scotch Grip

205583544

$2.64

88

WASHER - Call your local BRP dealership

503154000

Unavailable
