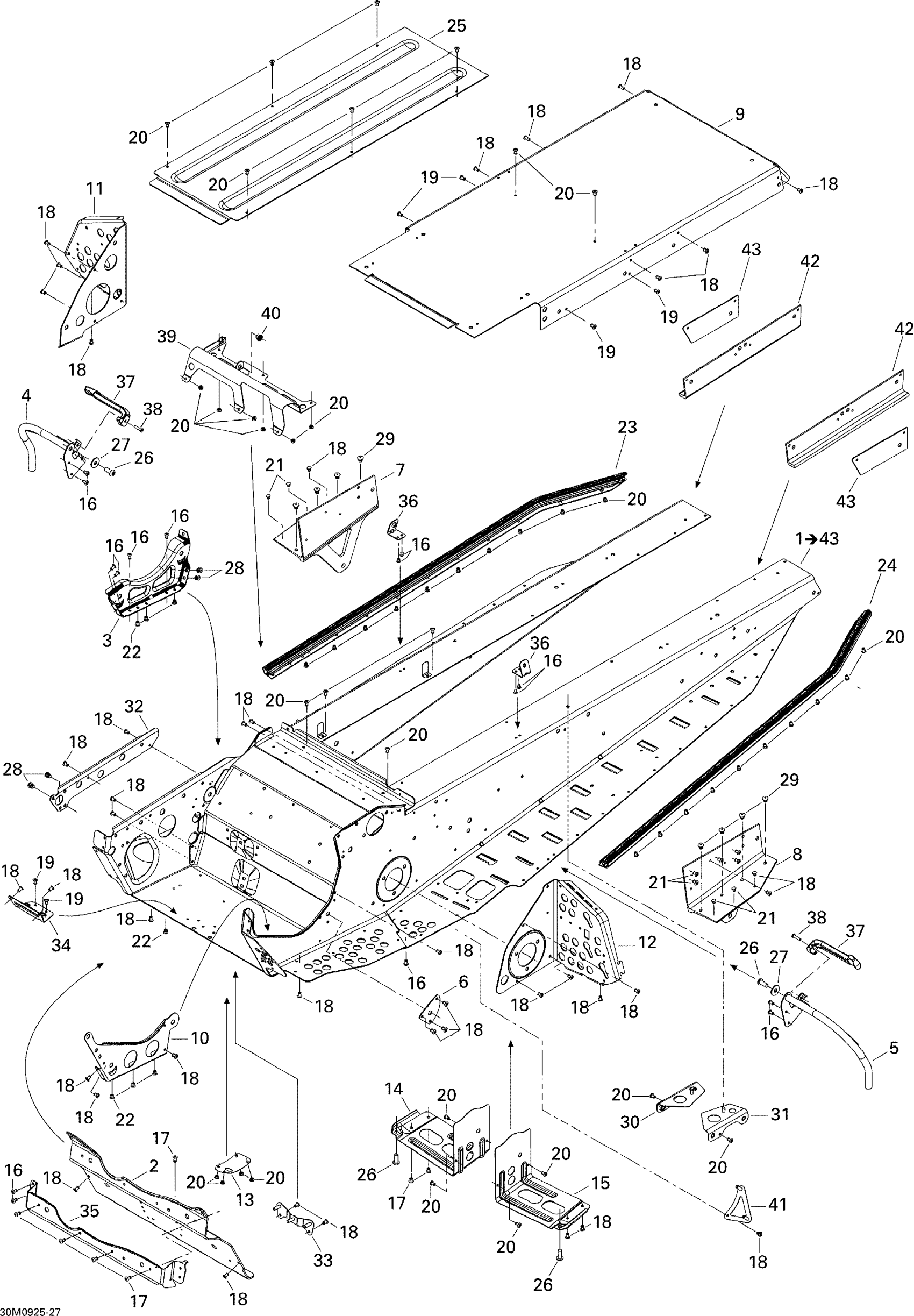

Ski-Doo Skandic Tundra LT 550F, 2009 09- Frame Diagram

#

Description
Price

1

FRAME 154'' - Call your local BRP dealership | Includes 1 to 43

415129295

Unavailable

2

FRONT PAN - Call your local BRP dealership

518325042

Unavailable

3

ENGINE SUPPORT, BLACK - Call your local BRP dealership

518323346

Unavailable

4

RH TOE HOLD SUPPORT - Call your local BRP dealership

518324162

Unavailable

5

LH TOE HOLD SUPPORT - Call your local BRP dealership

518324163

Unavailable

6

OUTER REINFORCEMENT - Call your local BRP dealership

518323507

Unavailable

7

RH SLIDE BRACKET - Call your local BRP dealership

518325485

Unavailable

8

LH SLIDE BRACKET - Call your local BRP dealership

518325483

Unavailable

9

Frame Extention

518325486

Unavailable

10

INNER REINFORCEMENT - Call your local BRP dealership

518323995

Unavailable

11

RH Footrest Reinforcement

518323805

Unavailable

12

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518324527

Unavailable

13

PLATE - Call your local BRP dealership

518324169

Unavailable

14

RH FOOTREST - Call your local BRP dealership

518325549

Unavailable

15

LH FOOTREST - Call your local BRP dealership

518325551

Unavailable

16

Avex Rivet

390909200

$0.30

17

Avex Rivet

390909100

$0.30

18

Pop Rivet 3/16"

390402200

$0.35

19

Pop Rivet 3/16"

390402300

$0.75

20

Pop Rivet 3/16"

390402400

$0.35

21

Not Available As Spare Part - Friction Washer

Unavailable

22

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

23

RH ROLLER - Call your local BRP dealership

518325153

Unavailable

24

LH ROLLER - Call your local BRP dealership

518325154

Unavailable

25

Center Plate

518325189

Unavailable

26

SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership | Package Hunter

205982086

Unavailable

27

Flat Washer 8 mm

234082410

$1.47

28

Hemlock Rivet, 6.5 mm

293150096

$3.27

29

Hemlock Rivet, 6.5 mm

293150119

$4.29

30

RH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324385

Unavailable

31

LH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324386

Unavailable

32

RH TUNNEL STIFFENER - Call your local BRP dealership

518323328

Unavailable

33

Holder

518324599

Unavailable

34

HOLDER PLATE - Call your local BRP dealership

518324207

Unavailable

35

FRONTAL REINFORCEMENT - Call your local BRP dealership

518324220

Unavailable

36

TRUNK BRACKET - Call your local BRP dealership

518324688

Unavailable

37

Panel Latch

517302448

$14.99

38

Pop Rivet 3/16”

390410100

$0.57

39

INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership

518323532

Unavailable

40

Threaded Insert M6 X 1.0

250100242

Unavailable

41

TRUNK BRACKET, BLACK - Call your local BRP dealership

518324312

Unavailable

42

CORNICE - Call your local BRP dealership

518325498

Unavailable

43

Shim

518325502

Unavailable
