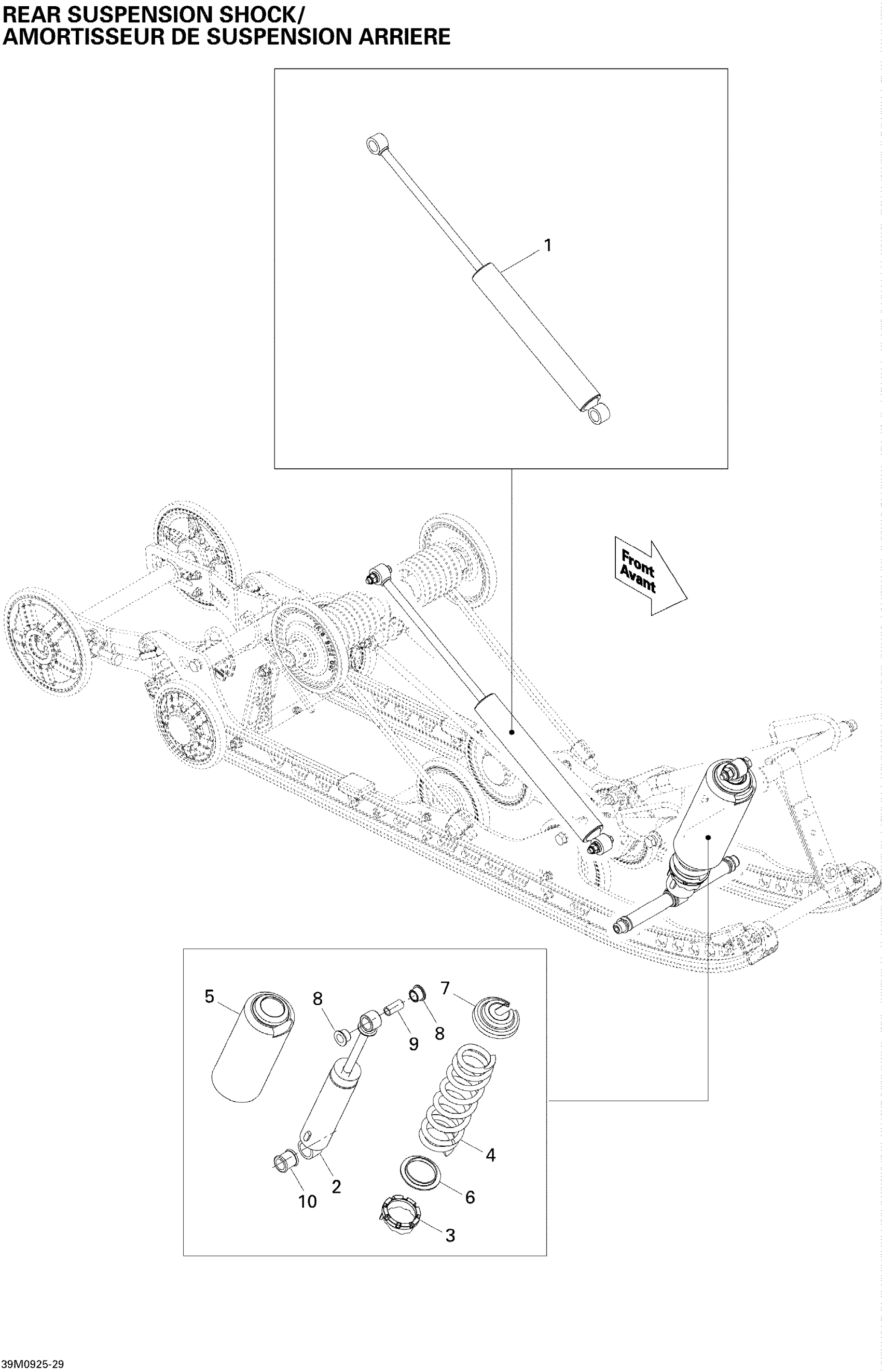

Ski-Doo Skandic Tundra LT 550F, 2009 Rear Suspension Shocks Diagram

#

Description
Price

1

Rear Shock HPG SEAL

503193191

$238.43

2

CENTER SHOCK - Call your local BRP dealership

503191592

Unavailable

3

Adjustment Cam

505073625

$12.18

4

SPRING - Call your local BRP dealership

503189325

Unavailable

5

Protector

503193663

$35.35

6

Spring Guide

503187500

$7.37

7

Spring Stopper

706200881

$10.30

8

Urethane Bushing

503189117

$6.88

9

Bushing | Includes 240d to 240d1

503189282

$4.18

10

Bushing

503189271

$10.46
