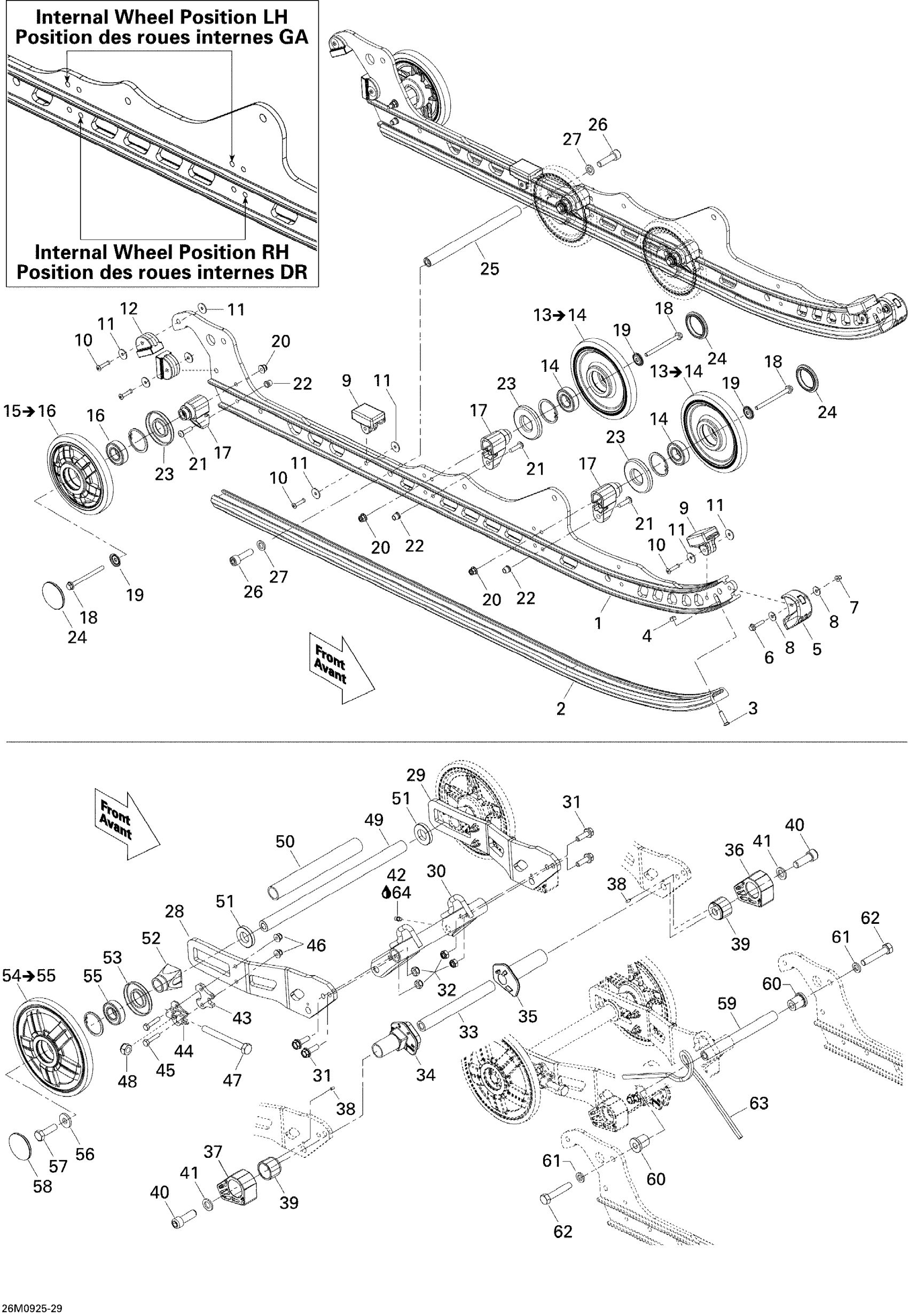

Ski-Doo Skandic Tundra LT 550F, 2009 08- Rear Suspension Diagram

#

Description
Price

1

Runner | Model-LE

503193397

$244.99

2

Slider 137

503191619

$34.99

3

Phillips Screw M6 X 25

208562531

$2.11

4

Elastic Stop Nut M6

232561414

$0.55

5

Runner Protector

503191137

$11.99

6

Hex. Flange Screw M5 X 25

207652544

$0.50

7

Hex. Flange Elastic Nut M5

233251414

$1.04

8

Washer | DS 650 X

391301600

$0.48

9

Rubber Stopper

503190576

$12.99

10

Pop Rivet 3/16"

293150142

$2.29

11

Washer

503191273

$1.35

12

Rubber Stopper

503191291

$19.99

13

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$48.49

14

Ball Bearing | Package-STD

503190396

$14.30

15

WHEEL 147 WITH PATTERN ASS'Y, YELLOW - Call your local BRP dealership | Includes 15 to 16

503191319

Unavailable

16

Ball Bearing | Package-STD

503190396

$14.30

17

Casted Support

503193894

$16.49

18

Hex. Flange Screw M6 X 70

207667044

$0.85

19

Wheel Cup M6

503191820

$4.99

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

Hex. Flange Screw M6 X 25

207662544

$0.64

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

23

Labyrinth Seal

503190434

$6.09

24

Wheel Cap

570063600

$3.49

25

Axle Strap

503191260

$30.99

26

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

27

Washer

503189564

$0.74

28

Rail Pivot RH

503192435

$88.99

29

Rail Pivot LH

503192434

$88.99

30

PIVOT - Call your local BRP dealership

503191598

Unavailable

31

Hex. Flange Screw M8 X 25

207682544

$1.35

32

Hex. Elastic Stop Nut M8

232581414

$0.56

33

Cam Axle

503191608

$17.49

34

RH Spring Cam

503191190

$15.29

35

LH Spring Cam

503191668

$12.58

36

LH BLOCK - Call your local BRP dealership

503191425

Unavailable

37

RH BLOCK - Call your local BRP dealership

503191426

Unavailable

38

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

39

Block Guide

503189488

$39.99

40

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

41

Washer | 7415/7416. 7417/7418.

503189148

$2.85

42

Grease Fitting

408200700

$3.49

43

Spacer

503193250

$16.49

44

Tensioner

503192583

$8.29

45

Hex. Screw M6 X 30

207063044

$1.26

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

47

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

48

Elastic Locking Nut M10 X 1.5

233601416

$1.69

49

Rear Axle

503190429

$59.99

50

Rear Spacer, Long

503191736

$18.49

51

Washer

503190432

$14.22

52

Rear Wheel Spacer

503190428

$8.14

53

Labyrinth Seal

503190434

$6.09

54

Wheel 180 With Pattern Ass'y, Yellow | Includes 34 to 35

503190342

$51.99

55

Ball Bearing | Package-STD

503190396

$14.30

56

Washer

503190439

$5.93

57

Hex. Screw With Nylon

250000019

$1.69

58

Wheel Cap

570063600

$3.49

59

Lower Shaft

503191279

$28.99

60

Bushing

503189324

$14.15

61

Washer

503189564

$0.74

62

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

207205586

Unavailable

63

SPRING - Call your local BRP dealership

503191603

Unavailable

64

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
