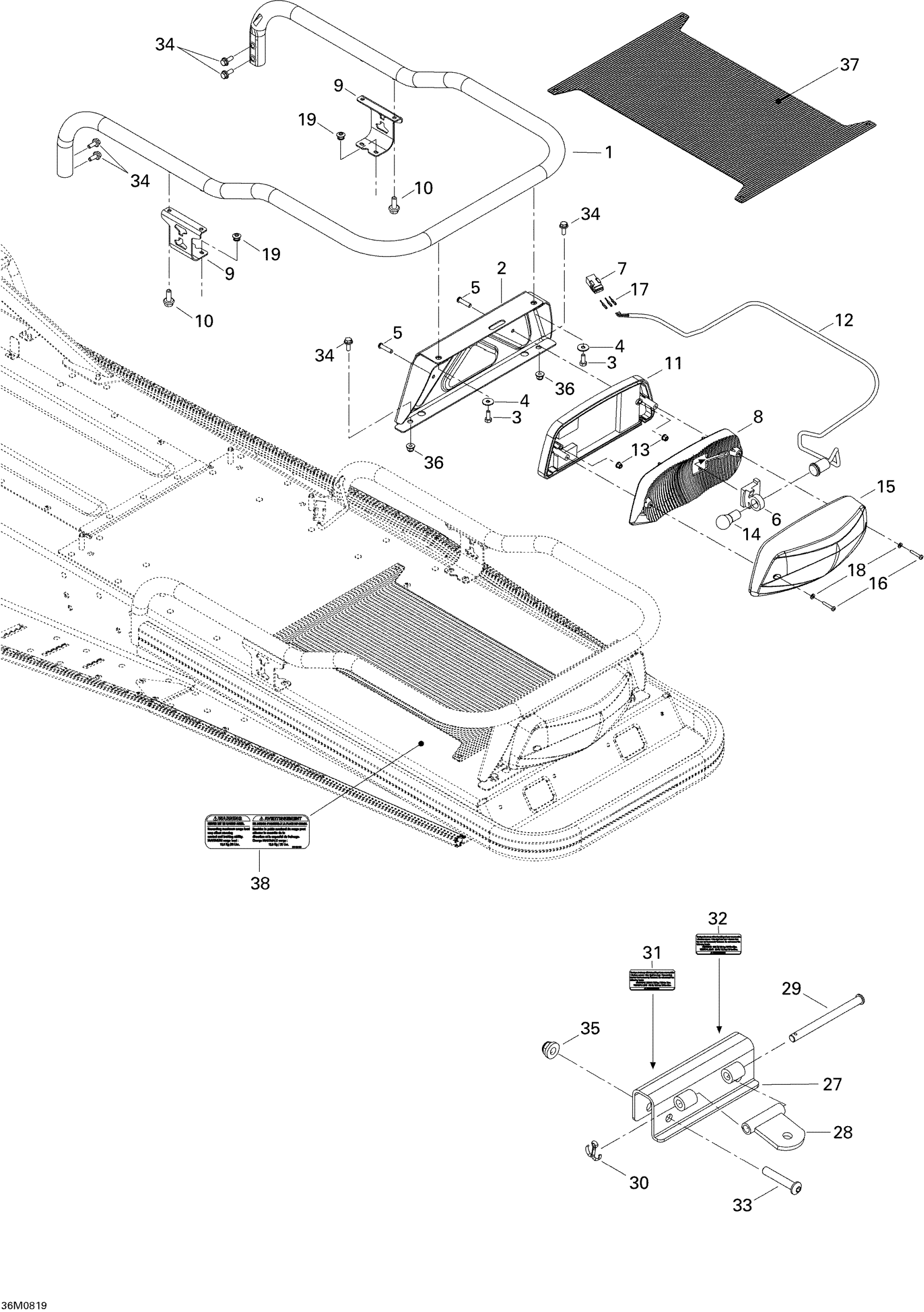

Ski-Doo Skandic Tundra LT 550F, 2008 09- Luggage Rack Diagram

LUGGAGE RACK - Call your local BRP dealership

511000567

Unavailable

REAR LIGHT SUPPORT - Call your local BRP dealership

511000187

Unavailable

Hex. Screw M6 X 16

207161644

$0.74

Flat Washer

250200082

$0.42

SOCKET SCREW M5 X 25 - Call your local BRP dealership

205452560

Unavailable

BULB SUPPORT - Call your local BRP dealership

511000431

Unavailable

Male Housing, 3 Circuits

515175494

$16.18

REFLECTOR - Call your local BRP dealership

510004442

Unavailable

RENFORT - Call your local BRP dealership

511000517

Unavailable

Hex. Flange Screw M6 X 16

207661644

$0.74

REAR LIGHT HOUSING - Call your local BRP dealership

515176272

Unavailable

BULB SOCKET - Call your local BRP dealership

511000494

Unavailable

Hex. Flange Elastic Nut M5

233251414

$1.04

Bulb

520000758

$9.10

Lens

511000315

$36.99

PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership

209632580

Unavailable

Male Terminal

515175232

$1.58

Washer - Call your local BRP dealership

414516400

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Hitch, Black

511000524

Unavailable

Hitch Plate Welded

511000521

$16.33

Lock Pin

511001451

$9.49

Cotter Pin

371800200

$0.53

WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership

516003037

Unavailable

WARNING DECAL-SECURITY-FRENCH - Call your local BRP dealership This part replaces 516002667.

516003038

Unavailable

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

CARPET - Call your local BRP dealership

511000496

Unavailable

MAXIMUM CARGO LOAD LABEL - Call your local BRP dealership

516003039

Unavailable
